Ubiquiti UniFi Enterprise Campus Switch Core

Your price incl. VAT (20.0%)

30,698.42 RON

Comandat pentru disponibilitate

Data de livrare planificată prin curier către dvs 21-10-2026

Adaugă in coş

Manufacturer

Ubiquiti

Product number

ECS-Core

Product Code

RL031.134

Warranty

24 months

Having a question?

• Related products

Ubiquiti UACC-Fan-F2B-4020 - Hot Swap Fan ModuleUACC-Fan-F2B-4020

353.09 RON excl. VAT

Ubiquiti UACC-OM-QSFP28-PSM4 - Optical module, Single-Mode, 100 Gbps, MPO-12 APCUACC-OM-QSFP28-PSM4

783.13 RON excl. VAT

Ubiquiti UACC-OM-QSFP28-SR4 - Optical module, Multi-Mode, 100 Gbps, MPO-12 UPCUACC-OM-QSFP28-SR4

301.22 RON excl. VAT

Ubiquiti UACC-OM-QSFP28-LR4 - Optical module, Single-Mode, 100 Gbps, LC UPC DuplexUACC-OM-QSFP28-LR4

1308.87 RON excl. VAT

Ubiquiti UACC-DAC-QSFP28-0.5M, DAC cable, 100 Gbps, 0.5mUACC-DAC-QSFP28-0.5M

158.80 RON excl. VAT

•
• Download

Download

https://dl.ui.com/qig/ecs-core/#index

Quick Start Guide

https://techspecs.ui.com/unifi/switching/ecs-core#datasheet

Datasheet

Technical parameters

LAN ports

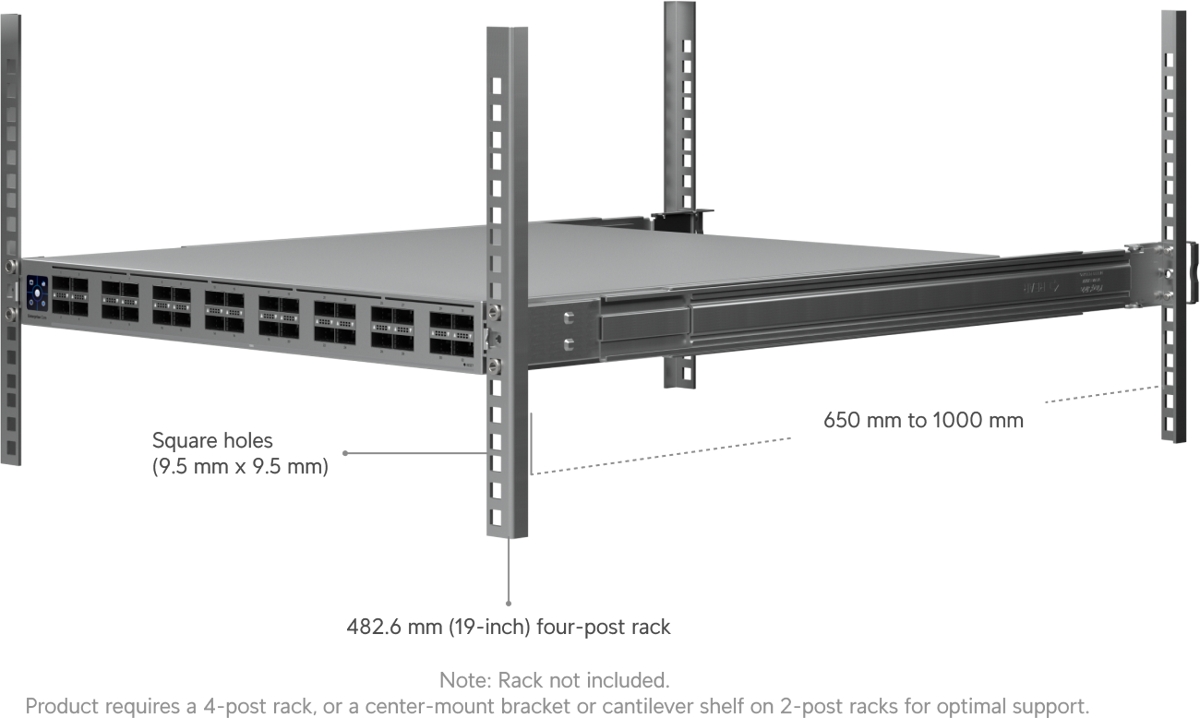

Design

Rackmount

Packet forwarding rate [Mpps]

2800

Switchning capacity [Gbps]

6400

MAC address table

128000

Web management

Yes

Management

UniFi Network

Features

L3, VLAN, DHCP snooping

Power type

Mains power (230V)

Fans

Yes

Management LAN

Yes

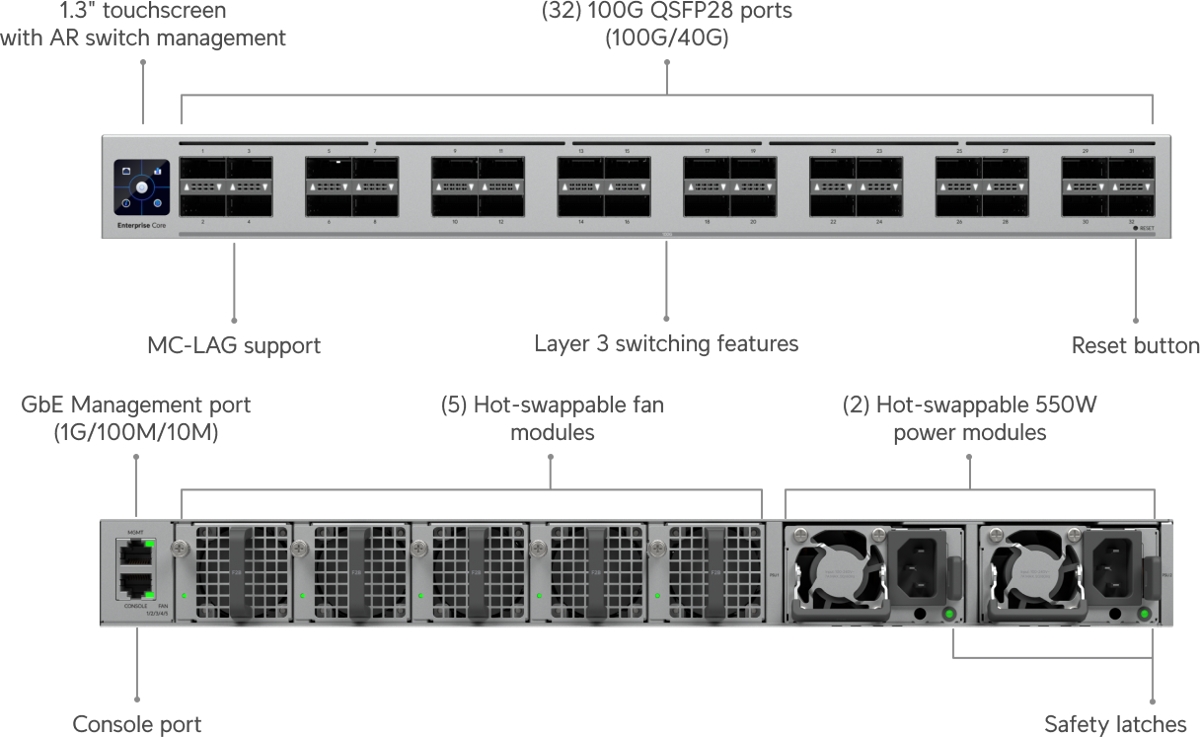

RJ45 ports 1G

1

QSFP28 cages

32

Optical interfaces

(32) 40G/100G

Redundant power supply

Yes

Max. power consumption [W]

360

Serial port

RJ45

Chassis design

Metal

Buttons

Reset

Operating temperature [°C]

-5 up to 40

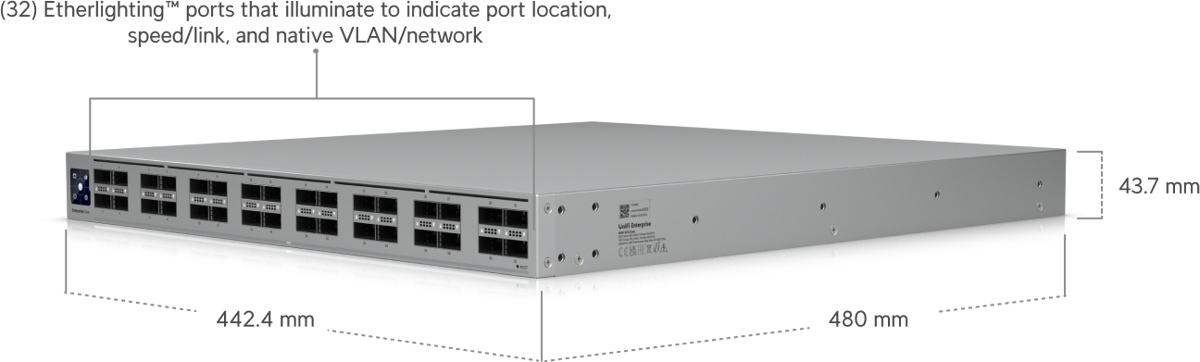

Depth [mm]

480

Width [mm]

442

Height [mm]

44

Other features

Touchscreen
