You have a choice of 2 variants

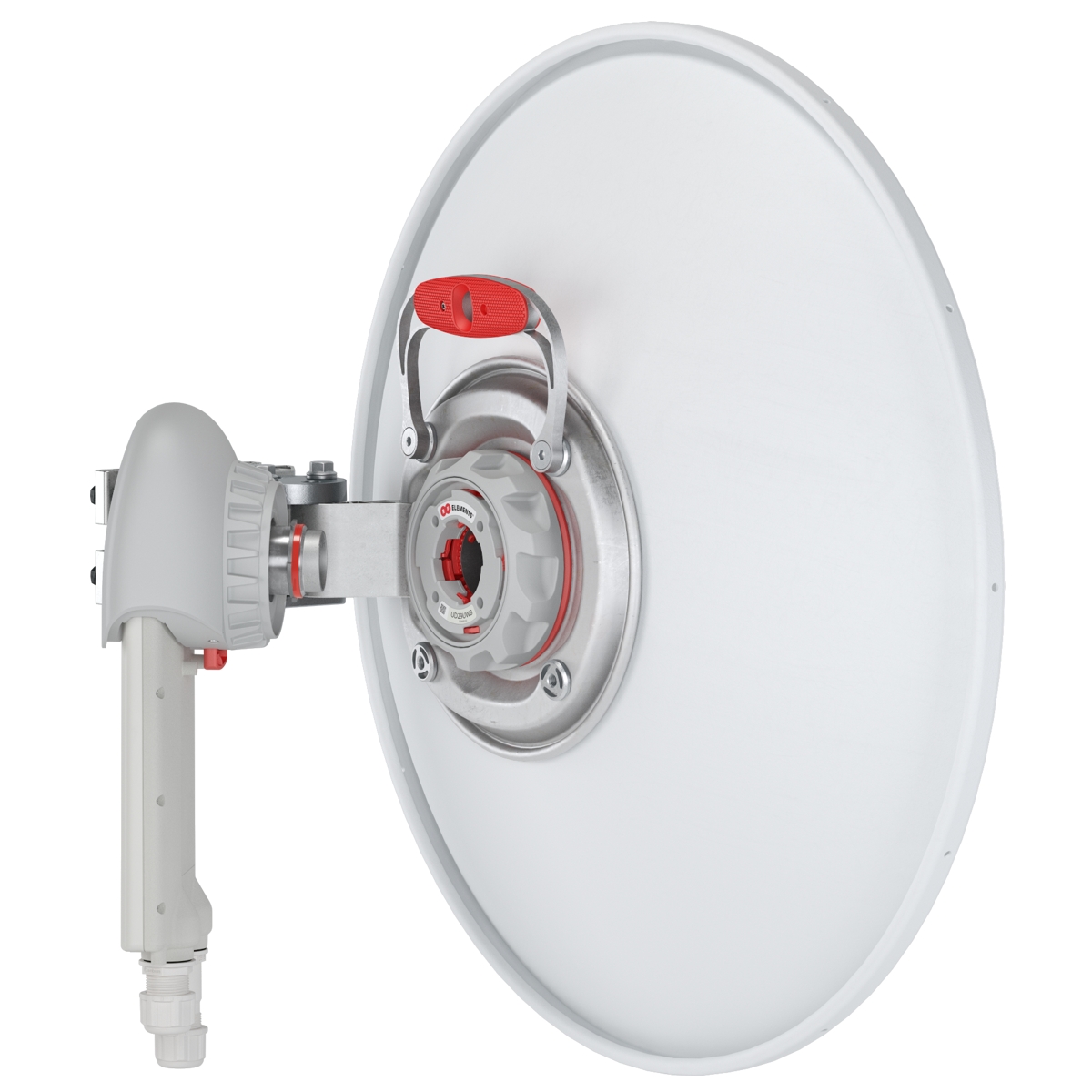

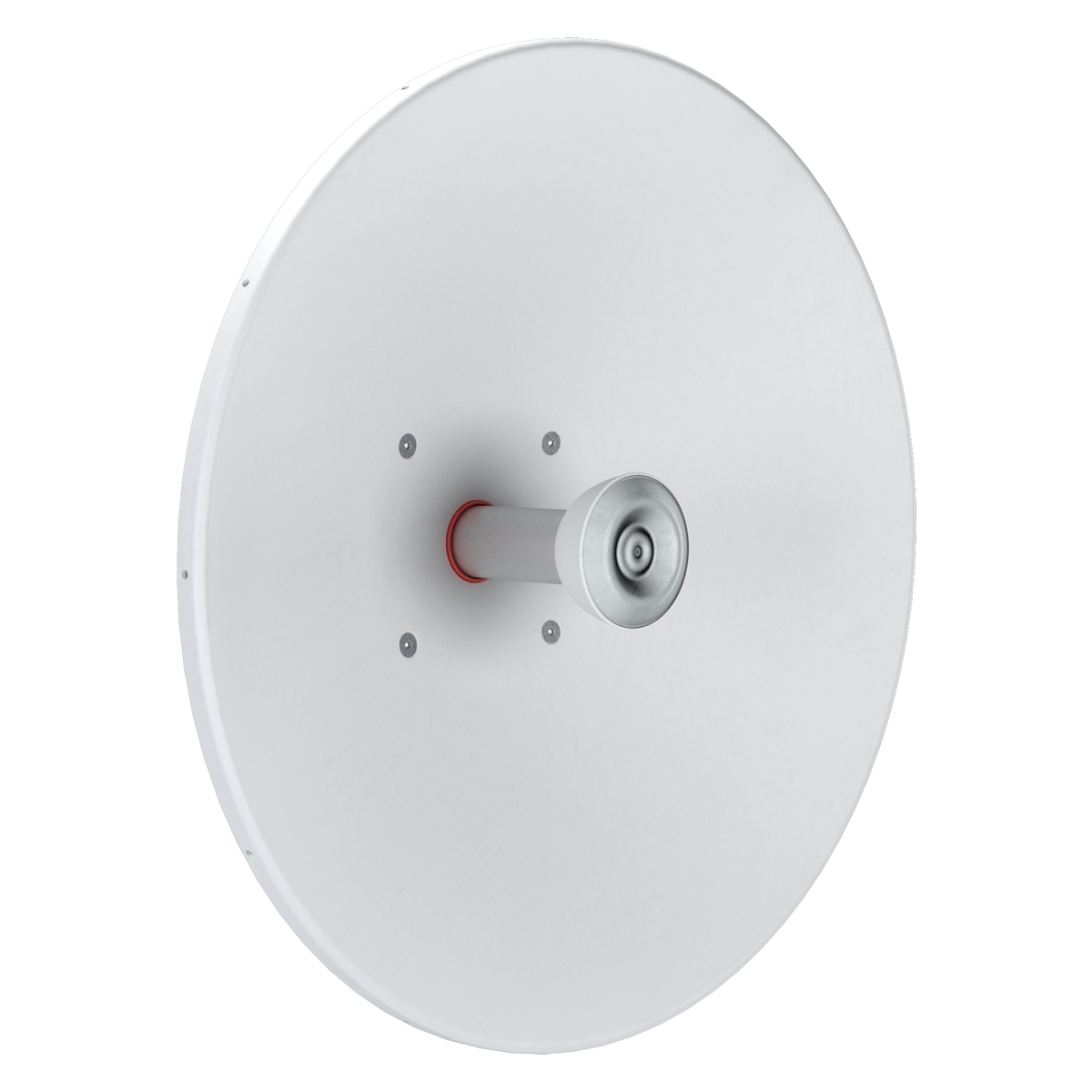

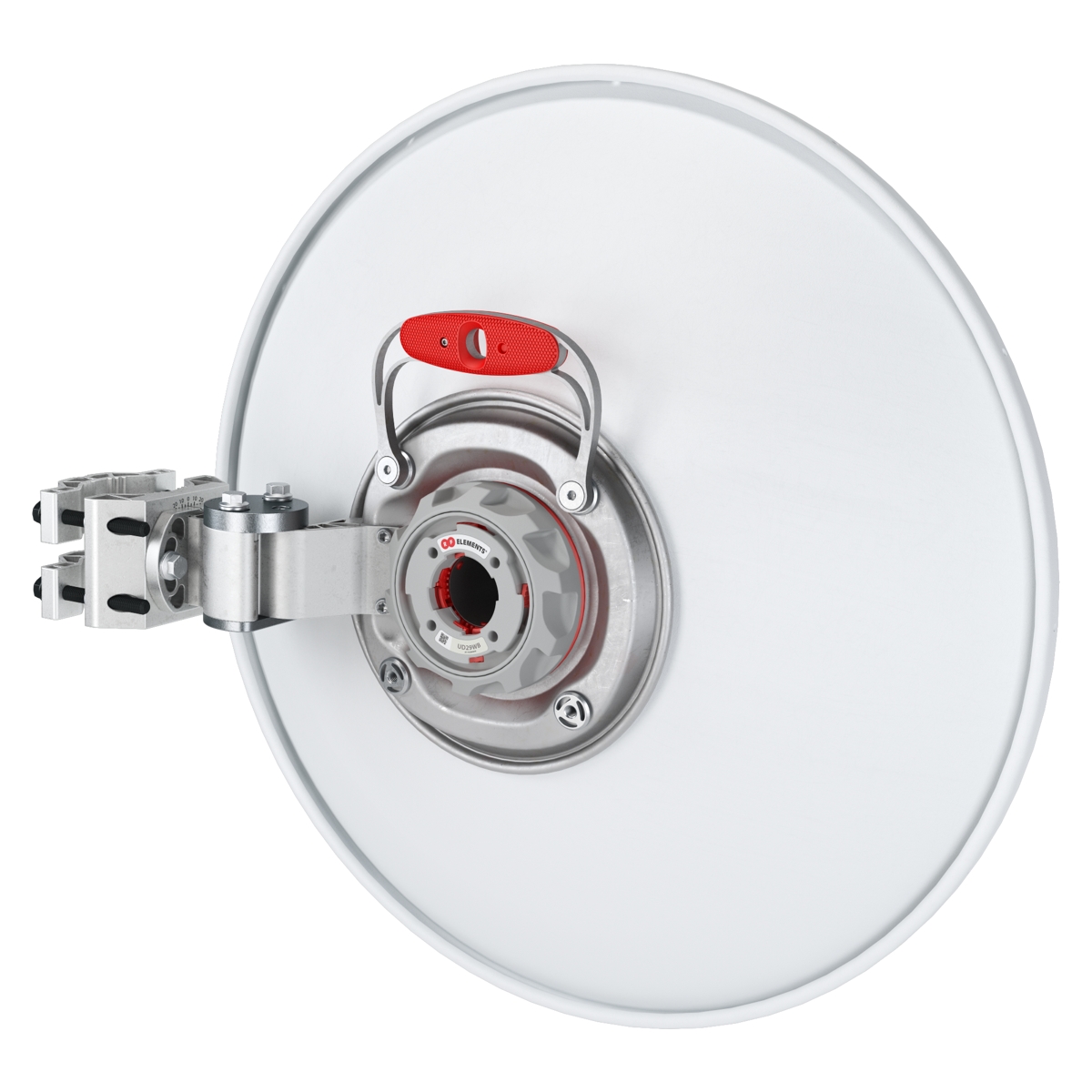

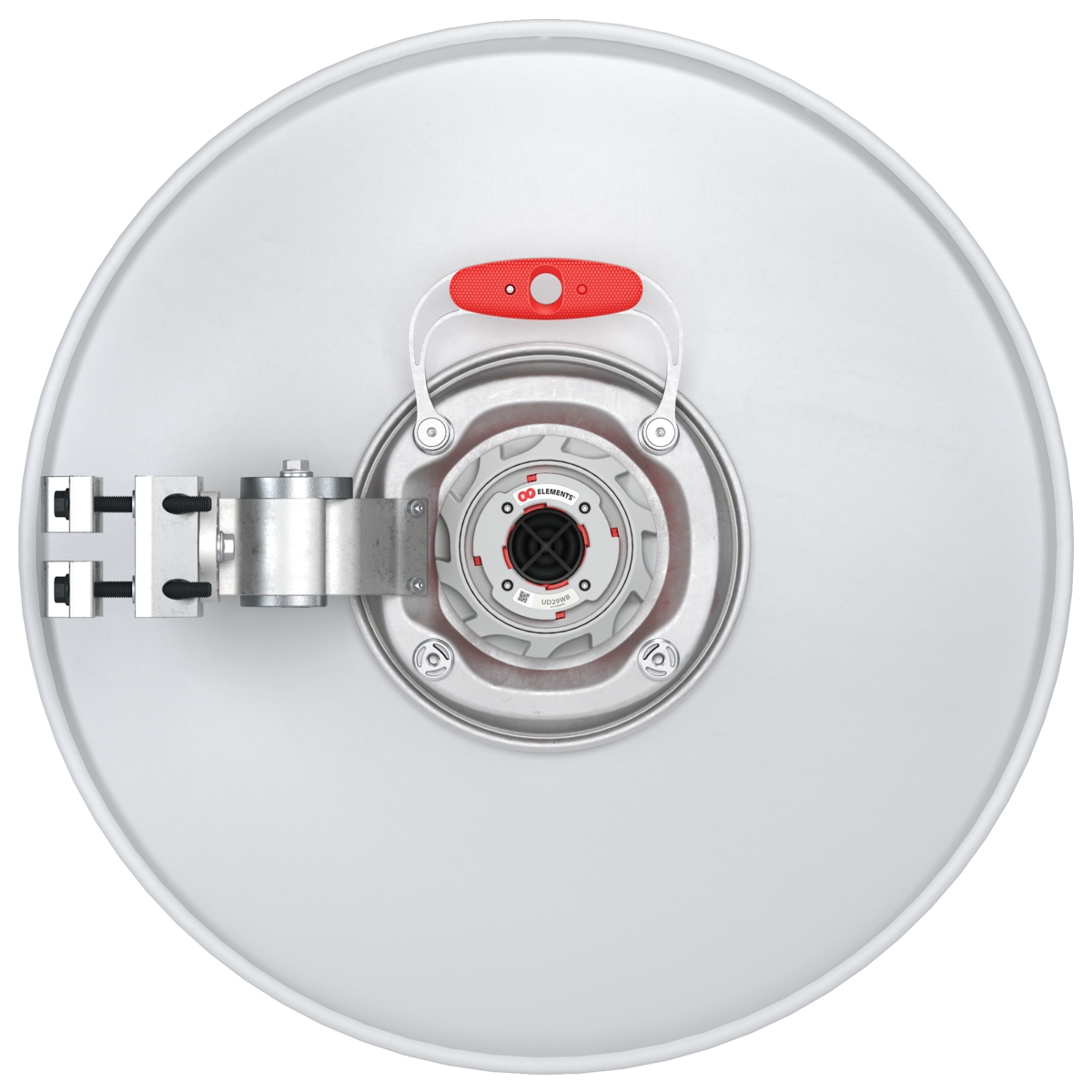

RF elements UltraDish UD29WB Directional Parabolic Dish Antenna with TwistPort, 5/6GHz, 29 dBi
UD29WB
865.95 RON excl. VAT
0.00 RON excl. VAT
Antenna holder on mast L , lenght 35cm, height 20cm, d=42mm + 1x U-Bolt 100mm
Antenna holder on mast "L", lenght 35cm, height 20cm, d=42mm + 1x U-Bolt 100mmSL1-100-035-020-042
43.58 RON excl. VAT
Adaugă in coş
RF elements TPA-SMA TwistPort adaptor for 6Ghz with 2x RP-SMA connectors
RF elements TPA-SMA TwistPort adaptor for 6Ghz with 2x RP-SMA connectorsTPA-SMA6
98.99 RON excl. VAT
Adaugă in coş
RF elements ePMP b TwistPort adaptor for Cambium 4600L, 4600C
RF elements ePMP b TwistPort adaptor for Cambium 4600L, 4600CTPA-EPMP-B-6
197.94 RON excl. VAT
Adaugă in coş
RF elements Side Strut for UltraDish 29 WB
RF elements Side Strut for UltraDish 29 WBSIDE-STRUT-29
278.35 RON excl. VAT
Adaugă in coş
RF elements RC29 Radome cover for UltraDish UD29WB
RF elements RC29 Radome cover for UltraDish UD29WBRC29
333.96 RON excl. VAT
Adaugă in coş

Download

https://download.discomp.cz/RFelements/Datasheets/UD29WB_Datasheet.pdf
Download Datasheet

Technical parameters

LAN ports
MIMO, SISO
2 x 2
Polarization
VH
F/B ratio [dB]
40
Designed for mast diameter [mm]
40 up to 80
Wind load [km/h]
160
Protection class
IP65
Wireless frequency
5 GHz, 6 GHz
Elevation beam width (-6dB) [°]
7,6
Azimuth beam width (-6dB) [°]
7,6
Antenna type
Directional
Purpose
Outdoor
Antenna gain [dBi]
29
Material
Aluminum, UV stabilized ABS plastic, Stainless steel
Operating temperature [°C]
-35 up to 60
Weight [kg]
4,2

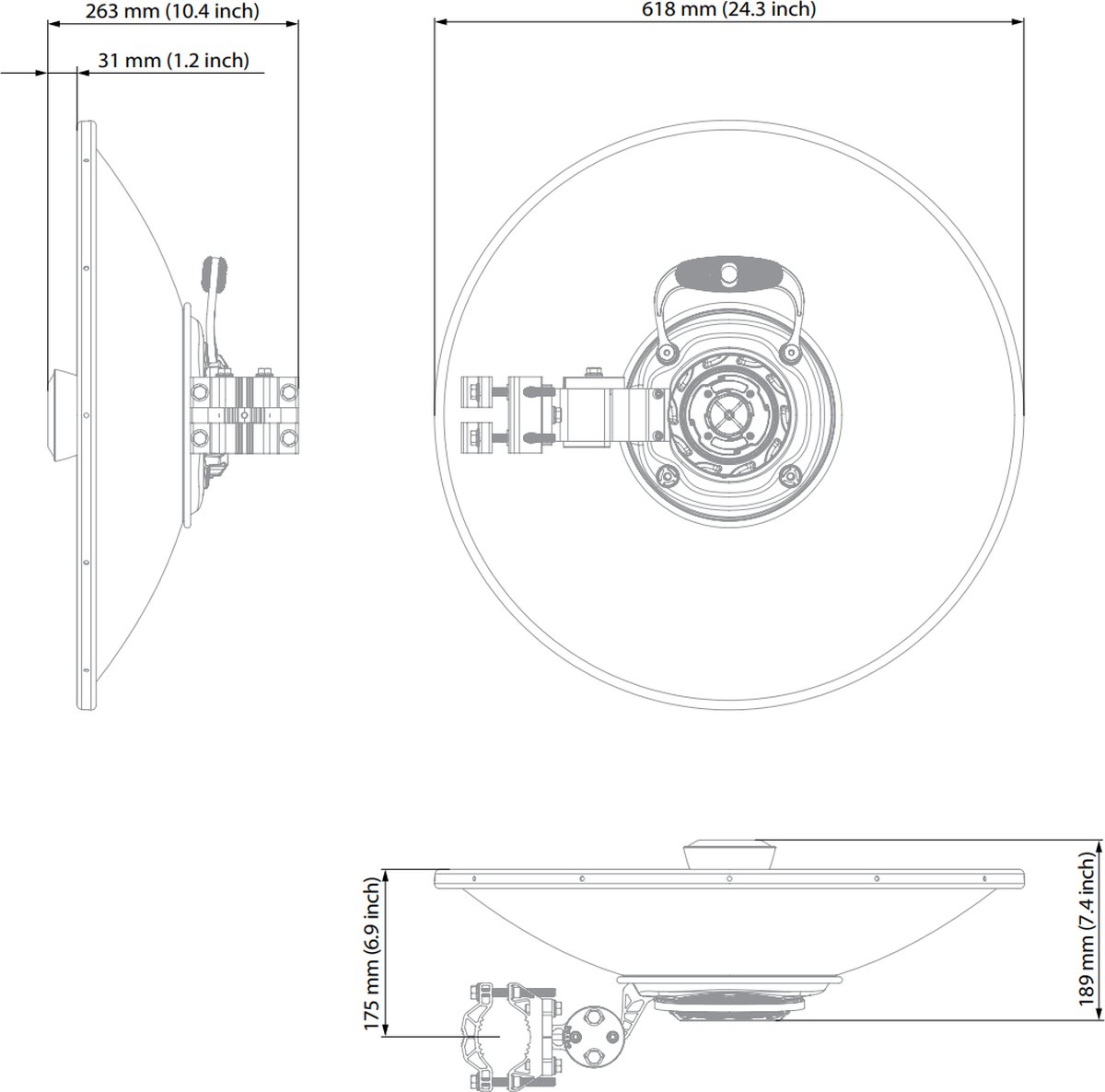

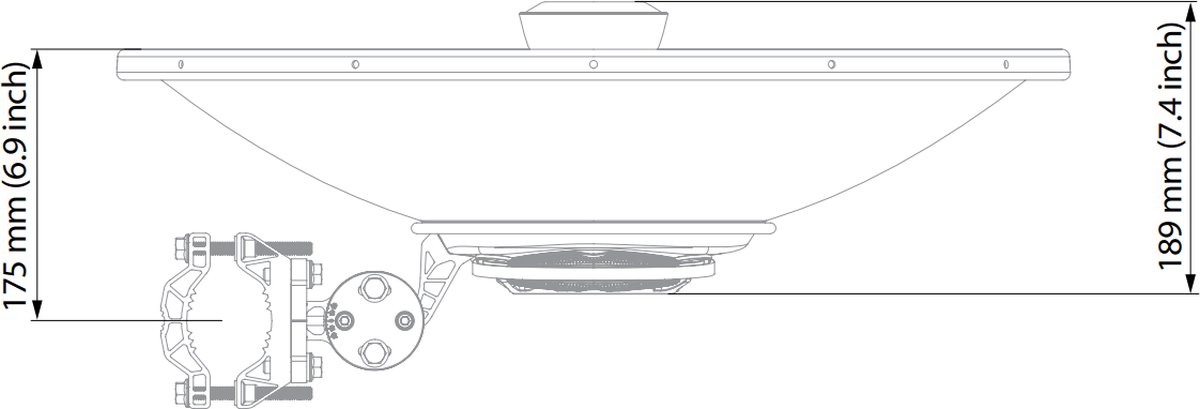

Width [mm]
618
Height [mm]
618
Depth [mm]
263
