Ubiquiti Rocket5 AC Lite, outdoor, 5GHz AC, 2x RSMA, AirMAX AC

Ubiquiti Rocket5 AC Lite, outdoor, 5GHz AC, 2x RSMA, AirMAX AC
Your price incl. VAT (20.0%)
641.53 RON
✅ In Stock 90+ Бр.
Delivery Planned Delivery Date by Courier to you 20-11-2024
Ubiquiti Networks
Manufacturer
Product number
R5AC-Lite
Product Code
RL002.414
Warranty
24 months

Product description

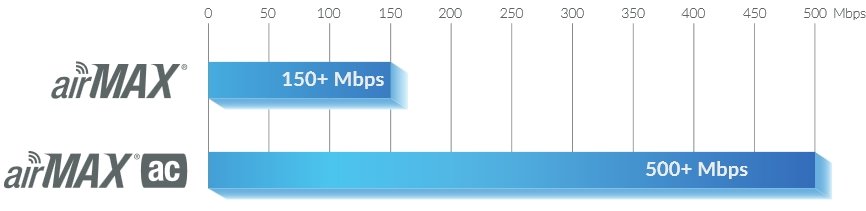

Rocket R5AC-Lite is a base station of the Rocket R5AC series, which achieves very high transmission speeds and a stable connection even in a noisy environment. The unit is compatible only with other airMAX AC products and is designed for outdoor use. Thanks to the possible setting of the channel width 20/40/50/60 and 80MHz, real throughput of up to 450Mbps+ can be achieved when using 256QAM ...

As of airOS version 7.1, this unit supports both PtP and PtMP use.

R5AC-Lite

airOS 7

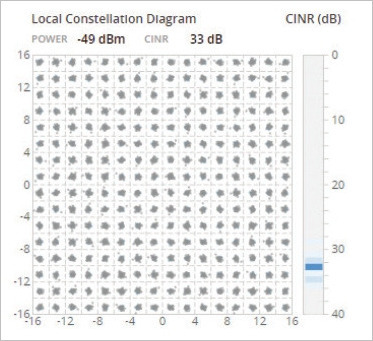

A novelty in all products with the airMAX ac protocol is the new airOS 7 operating system. This system plots the constellation diagram and the SNR value in real time.

Package contains

  • Device
  • PoE power adapter
  • Power cord
  • Metal ring

Download

https://download.discomp.cz/Ubiquiti/CE/R5AC-Lite_DoC.pdf
Download CE
https://download.discomp.cz/Ubiquiti/Datasheets/Rocket5ac_DS.pdf
Download Datasheet
https://download.discomp.cz/Ubiquiti/Navody/airOS_UG_V71.pdf
Download airOS 7 User Guide
https://download.discomp.cz/Ubiquiti/QSG/Rocket_R5AC-Lite_QSG.pdf
Download Quick Start Guide
https://www.ubnt.com/download/?group=rocket-ac
Download Firmware

Technical parameters

LAN ports
Power over Ethernet
20 .. 26V DC
Operating mode
Client, AP Router, Access Point, Client Router (wisp)
Wireless frequency
5 GHz
WiFi standards
airMAX ac
Transmission speed - 5GHz [Mb/s]
866
Tx power 5GHz [dBm]
27
Security
WPA2 AES
5GHz MIMO
2 x 2
Type of antenna
Detachable
Detachable antennas
2
RF connectors
(2) RSMA female
Purpose
Outdoor
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
8,5
Buttons
Reset
Operating temperature [°C]
-40 up to 80
Weight [g]
250
Width [mm]
84
Height [mm]
162
Depth [mm]
37
CPU
Atheros MIPS 74KC
CPU frequency [MHz]
720
IPv6 support
Transparent (bridge mode)
Default IP address
192.168.1.20
RAM [MB]
128
Default login and password
ubnt / ubnt
