Ubiquiti sector antenna AirMax AC 21dBi 5GHz, 60°

Ubiquiti sector antenna AirMax AC 21dBi 5GHz, 60°
Your price incl. VAT (20.0%)
939.58 RON
Ordered for stock
Delivery Planned Delivery Date by Courier to you 04-12-2024
Ubiquiti Networks
Manufacturer
Product number
AM-5AC21-60
Product Code
RL002.319
Warranty
24 months

Product description

AM-5AC21-60 is the airMAX ac sector antenna with 21dBi antenna gain, 60° of beam angle and has highly resistant to noise interference in co-location deployments. The innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower.

Improved Signal-to-Noise Ratio (S/N or SNR) allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate).

Eliminate side lobes

The airMAX ac Sector Antennas are engineered to reject interference and provide enhanced scalability, higher gain, and superior beam performance in PtMP networks.

Robust design

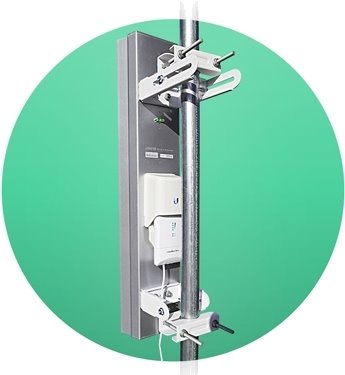

airMAX® ac Antennas are designed with robust mechanical design for outdoor application use.

AM-5AC21-60

Plug and Play Integration

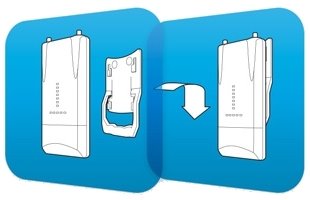

Every airMAX® ac Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.

AM-5AC21-60

Package contains

  • Antenna
  • Protective shroud
  • (2) RSMA male - RSMA male pigtail
  • Holder + screws

Download

https://download.discomp.cz/Ubiquiti/Datasheets/airMAX_ac_Sector_Antennas_DS.pdf
Download Datasheet
https://download.discomp.cz/Ubiquiti/QSG/AM-5AC21-60_QSG.pdf
Download Quick Start Guide

Technical parameters

LAN ports
MIMO, SISO
2 x 2
Polarization
VH
VSWR
< 1,5
Designed for mast diameter [mm]
30 up to 80
Wind load [km/h]
200
Rocket kit
Yes
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
60
Azimuth beam width (-6dB) [°]
60
Antenna type
Sector
RF connectors
(2) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
21
Material
Stainless steel
Weight [kg]
4,8
Width [mm]
173
Height [mm]
750
Depth [mm]
78
