Ubiquiti RocketDish 30dBi, 5GHz, Rocket Kit, Light Weight - Kit 2pcs
Your price incl. VAT (20.0%)
953.42 RON
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 01-01-2025
You have a choice of 4 variants
1004.19 RON excl. VAT
Ubiquiti PAK-620 Precision Alignment Kit, for RD-5G30-LW, AF-5G30-S45, PBE-5AC-620, PBE-M5-620PAK-620
141.59 RON excl. VAT
Product description
Parabolic dual antenna Ubiquiti RocketDish RD-5G30-LW 5 GHz, gain 30 dBi, diameter 650 mm, without radome, dual 2x2 MIMO. The antenna has a greater depth of the dish and therefore greater resistance to interference than the original model RD-5G30. The antenna comes with a tilting mast mount, Rocket unit mount, cable cover, unit cover and a pair of pigtails for connecting the unit.

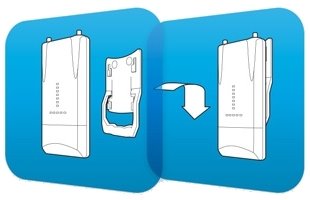

Built-in Rocket kit
Thanks to the built-in mounting system of the so-called rocket kit, any Rocket unit can be directly mounted on this antenna without the need for additional accessories. Simply click the Rocket and you're done.
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2
Polarization
VH
Antenna design
Parabolic
VSWR
< 1,6
F/B ratio [dB]
30
Wind load [km/h]
200
Rocket kit
Yes
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
6
Azimuth beam width (-6dB) [°]
6
Antenna type
Directional
RF connectors
(2) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
30
Weight [kg]
7,4
Width [mm]
650
Height [mm]
650
Depth [mm]
386
