Ubiquiti RP-5AC-Gen2 - 5 GHz Rocket AC, PRISM, Gen2, outdoor, 5GHz AC, airPrism

Ubiquiti RP-5AC-Gen2 - 5 GHz Rocket AC, PRISM, Gen2, outdoor, 5GHz AC, airPrism
Your price incl. VAT (20.0%)
1,186.10 RON
✅ In Stock 90+ Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
Ubiquiti Networks
Manufacturer
Product number
RP-5AC-Gen2
Product Code
RL004.184
Warranty
24 months

Product description

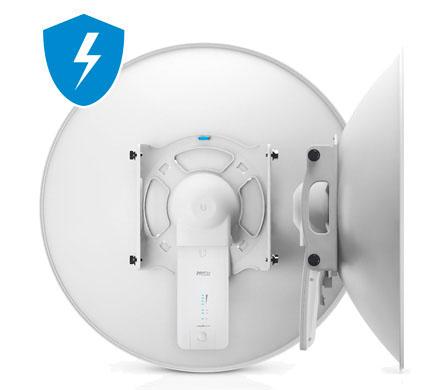

The Rocket Prism 5AC covers the full 5 GHz radio band and incorporates both airMAX ac and airPrism technologies for maximum performance of wireless links in high-density areas. The device features enhanced protection against ESD events

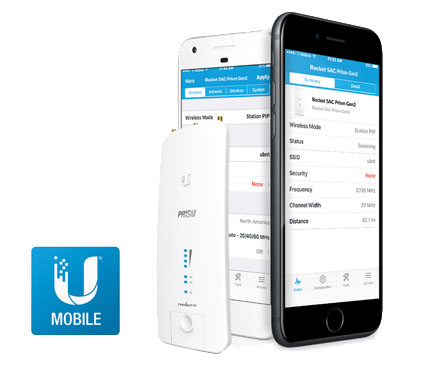

Management Wi-Fi Radio

The Rocket Prism 5AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

umobile

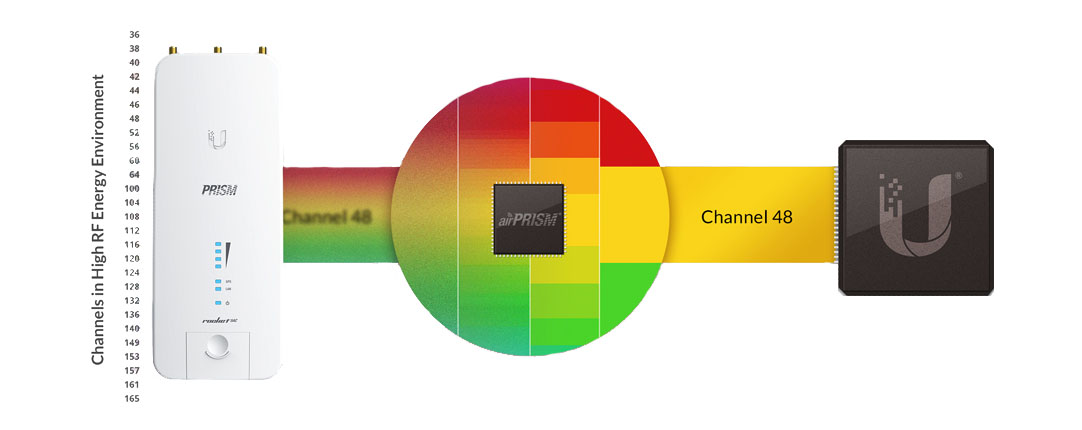

Revolutionary Filtering Technology

Ubiquiti’s patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.

airPrism

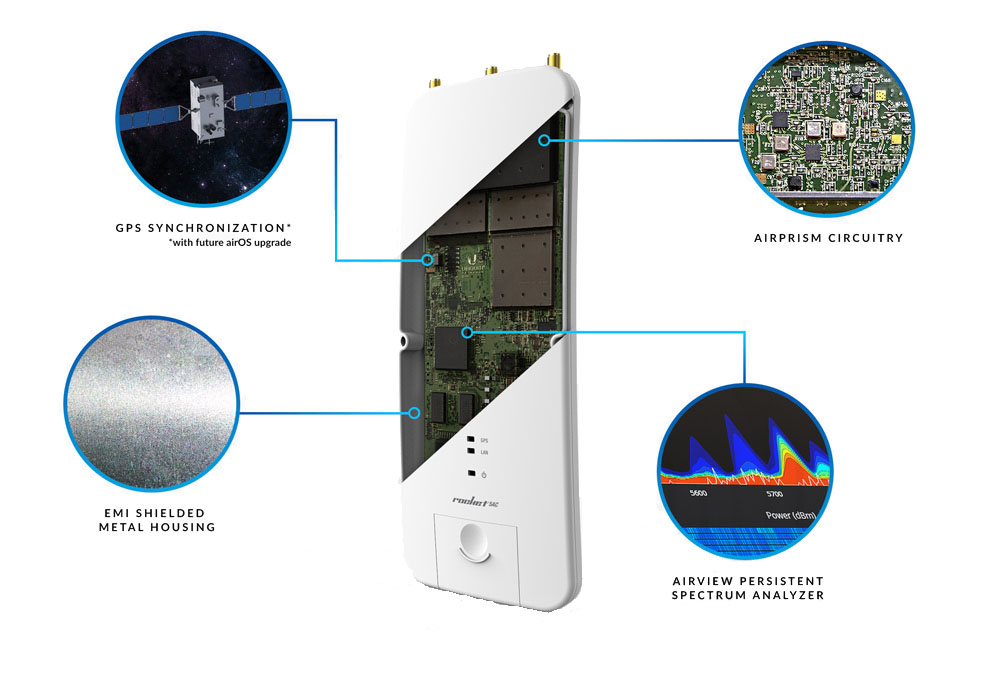

Designed for High Performance

The Rocket Prism 5AC features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.

high performance

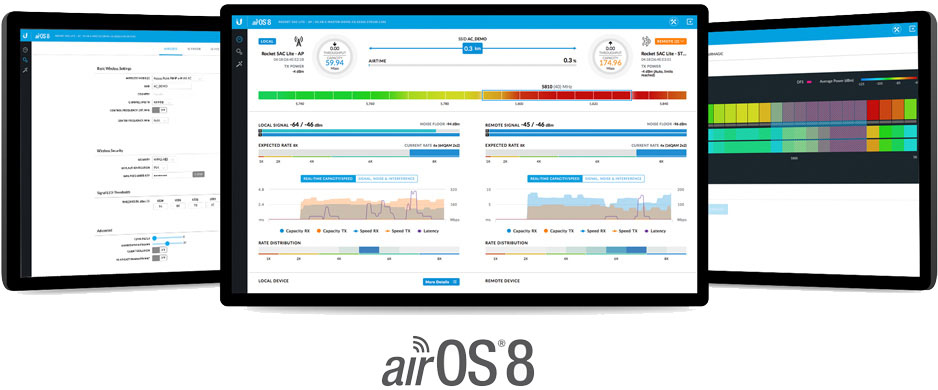

Now with airOS 8

airOS 8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

AirOS 8

Package contains

  • Device
  • Gigabit PoE Power adapter 24V/1A
  • Power cord
  • GPS antenna

Download

https://www.ubnt.com/downloads/datasheets/RocketAC/Rocket_Prism_AC_Gen2_DS.pdf
Download Datasheet
https://www.ubnt.com/downloads/guides/airOS/airOS_UG_V80.pdf
Download AirOS User Guide
https://www.ubnt.com/downloads/guides/RocketPrism_Gen2/Rocket_Prism_5AC-Gen2_QSG.pdf
Download Quick Guide

Technical parameters

LAN ports
Power over Ethernet
24V DC
Sensitivity [dBm]
-96
Frequency range [MHz]
5150 - 5875
Operating mode
Access Point, AP Router, Client, Client Router (wisp), Repeater
Wireless frequency
5 GHz
WiFi standards
airMAX ac
Transmission speed - 5GHz [Mb/s]
866
Tx power 5GHz [dBm]
28
Security
WPA2 AES
5GHz MIMO
2 x 2
Type of antenna
Detachable
Detachable antennas
2
RF connectors
(1) SMA female, (2) RSMA female
Purpose
Outdoor
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
9,5
Buttons
Reset
Operating temperature [°C]
-40 up to 80
Weight [g]
400
Width [mm]
88
Height [mm]
230
Depth [mm]
40
CPU
Atheros MIPS 74KC
IPv6 support
Transparent (bridge mode)
Default IP address
192.168.1.20
RAM [MB]
128
Default login and password
ubnt / ubnt
GPS modul
Yes
Other features
WiFi management radio
