Ubiquiti RocketDish 34dBi, 5GHz, Rocket Kit
Your price incl. VAT (20.0%)
1,414.63 RON
✅ In Stock < 10 Бр.
![Delivery](/img/delivery.png)
Product description
Ubiquiti RocketDish RD-5G34 is a 2x2 parabolic antenna suitable for long PtP coupled using Rocket M units. It also comes with waterproof accessories for connection to the Rocket M5 unit.
Built-in Rocket kit

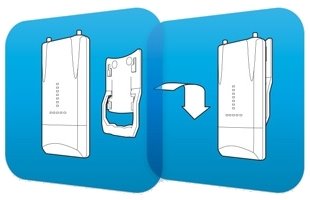

Thanks to the built-in mounting system of the so-called rocket kit, any Rocket unit can be directly mounted on this antenna without the need for additional accessories. Simply click the Rocket and you're done.
![RD-5G34](pictures/pic_big/body_attach/0721dfe6440cbc4dbbe2f9b9ed48792d202406280850021.jpg)
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2
Polarization
VH
Antenna design
Parabolic
VSWR
< 1,4
F/B ratio [dB]
42
Cross-Pol Isolation [dB]
35
Wind load [km/h]
200
Rocket kit
Yes
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
3
Azimuth beam width (-6dB) [°]
3
Antenna type
Directional
RF connectors
(2) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
34
Weight [kg]
13,5
Width [mm]
1050
Height [mm]
1050
Depth [mm]
421
