Ubiquiti RocketDish 31dBi, 5GHz AC, Rocket Kit

Ubiquiti RocketDish 31dBi, 5GHz AC, Rocket Kit
Your price incl. VAT (20.0%)
1,629.20 RON
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
Ubiquiti Networks
Manufacturer
Product number
RD-5G31-AC
Product Code
RL001.938
Warranty
24 months

Product description

Ubiquiti RocketDish RD-5G31-AC is a 2x2 parabolic antenna suitable for long PtP coupled using Rocket M units. The main benefit compared to the previous model is excellent isolation of the antero-posterior ratio and SNR / noise isolation. A great benefit is the integration of Radom for easier installation and better weather conditions.

Built-in Rocket kit

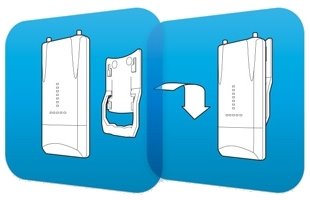

Thanks to the built-in mounting system of the so-called rocket kit, any Rocket unit can be directly mounted on this antenna without the need for additional accessories. Simply click the Rocket and you're done.

RD-5G31-AC

Package contains

  • Antenna with radom cover
  • Mast holder + screws, nuts
  • Protective cover of the unit
  • (2) RF cables

Download

https://dl.ubnt.com/guides/rocketdish/RocketDish_RD-5G31-AC_QSG.pdf
Download Quick Install Guide
https://download.discomp.cz/Ubiquiti/Datasheets/RocketDish_RD-5G31-AC_DS.pdf
Download Datasheet

Technical parameters

LAN ports
MIMO, SISO
2 x 2
Polarization
VH
Antenna design
Parabolic
VSWR
< 1,4
Cross-Pol Isolation [dB]
35
Wind load [km/h]
200
Rocket kit
Yes
Radom
Yes
Wireless frequency
5 GHz
Antenna type
Directional
RF connectors
(2) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
31
Weight [kg]
7,6
Width [mm]
748
Height [mm]
748
Depth [mm]
349
