Ubiquiti dual omni antenna airMAX 2x2 MIMO 5GHz, 10dBi, rocket kit
Your price incl. VAT (20.0%)
578.70 RON
✅ In Stock 20+ Бр.
![Delivery](/img/delivery.png)
Product description
AMO-5G10 is 2x2 MIMO omnidirectional antenna with 10dBi gain, 360°/12° beam angles and is designed for 5GHz band. It was designed to seamlessly integrate with Rocket M radio series.![](pictures/pic_big/body_attach/578eb28c1552a65d7b6b1a9b1f4f070d202406280710021.jpg)

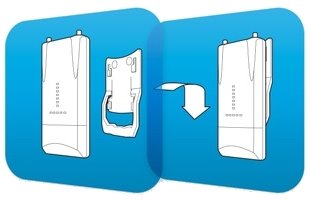

Plug and Play Integration
Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.
![](pictures/pic_big/body_attach/578eb28c1552a65d7b6b1a9b1f4f070d202406280710022.jpg)
Package contains
- Antenna
- (2) RSMA male - RSMA male pigtail
- Holder + screws
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2
Polarization
VH
VSWR
< 1,6
Designed for mast diameter [mm]
30 up to 80
Cross-Pol Isolation [dB]
25
Wind load [km/h]
200
Rocket kit
Yes
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
12
Azimuth beam width (-6dB) [°]
360
Antenna type
Omnidirectional
RF connectors
(2) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
10
Material
UV stabilized ABS plastic
Weight [kg]
0,7
Width [mm]
90
Height [mm]
582
Depth [mm]
65
