Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM
Your price incl. VAT (20.0%)
2,121.89 RON
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 10-07-2024
Manufacturer
Product number
AP-5AC-90-HD
Product Code
RL002.904
Warranty
24 months
Product description
The AP-5AC-90-HD AirPrism sector antenna is the first multi sectoral antenna with 3 independent 2x2 MIMO sector antennas with a 30° radius coverage for the 5GHz band. The total airPrism antenna coverage angle is 90°. This sectoral antenna is made of the finest materials and is dedicated to reserved areas, or where you do not have much space on the mast and you need to connect more customers.

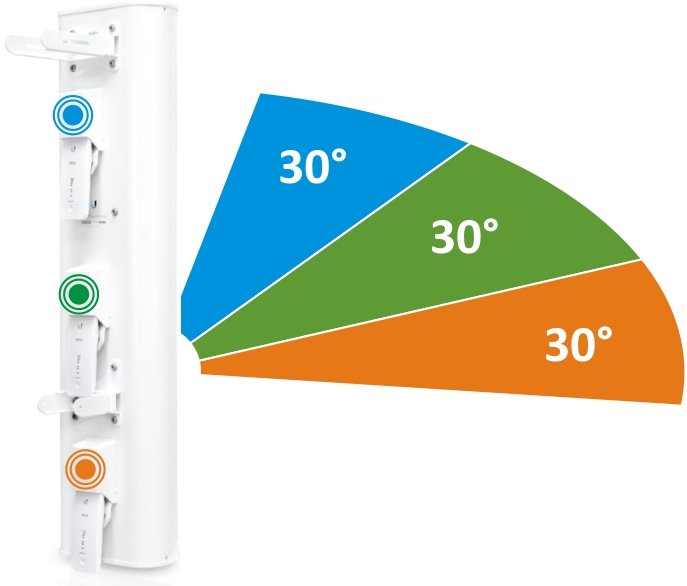

3 x 30° Beamwidth Coverage
The three Rocket5ac Prism™ radios are installed at the top, middle, and bottom of the airPrism antenna. Each radio independently transmits and receives within its corresponding 30° beamwidth.
Package contains
- Antenna
- Holder
- (3) rocket unit coverage
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2
Polarization
VH
VSWR
< 1,75
Cross-Pol Isolation [dB]
30
Wind load [km/h]
200
Rocket kit
Yes
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
8
Azimuth beam width (-6dB) [°]
30
Antenna type
Sector
RF connectors
(6) RSMA male
Purpose
Outdoor
Antenna gain [dBi]
22
Weight [kg]
13,1
Width [mm]
323
Height [mm]
1330
Depth [mm]
202
