Teltonika EBD050, CALYX 5G modem HAT+ for Raspberry Pi 4 and 5
Your price incl. VAT (20.0%)
1,302.88 RON
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 04-02-2026
You have a choice of 3 variants
Product description

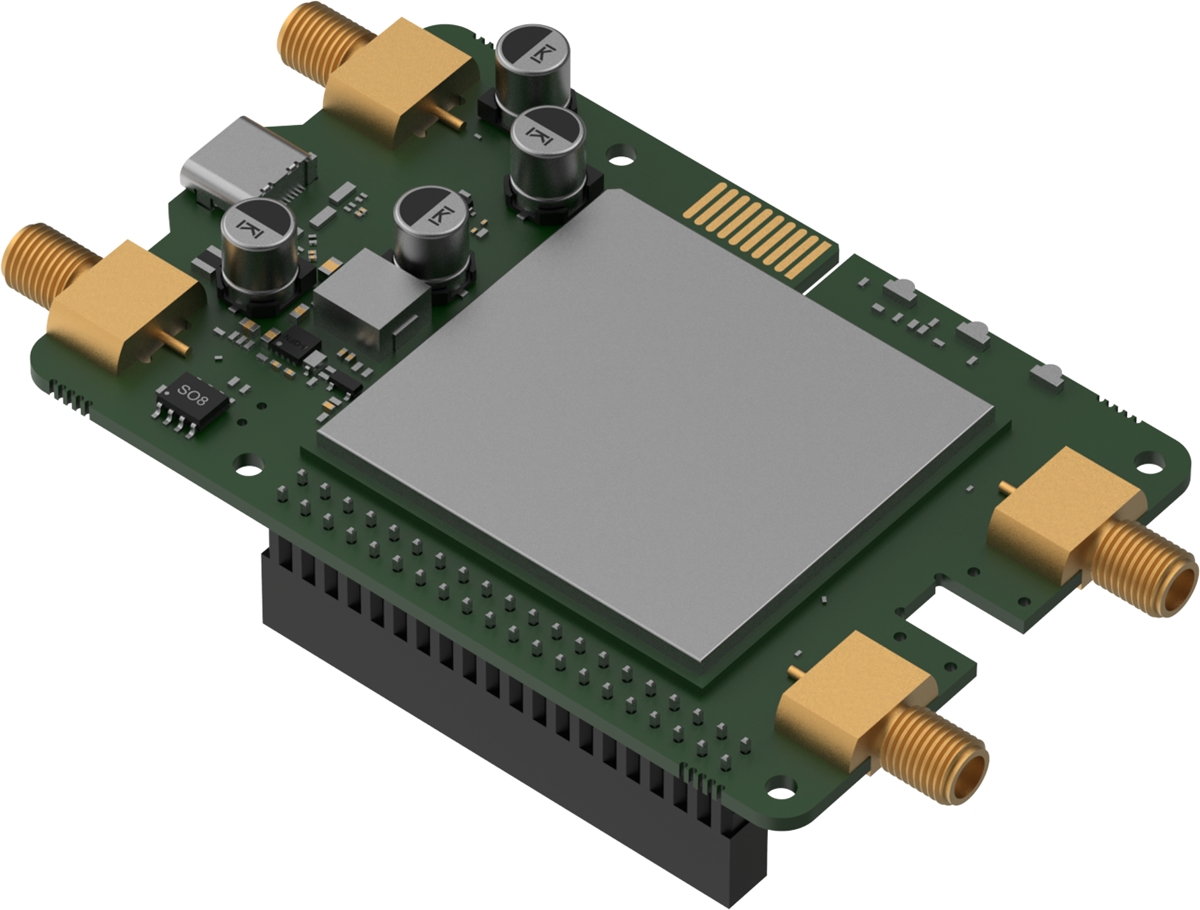

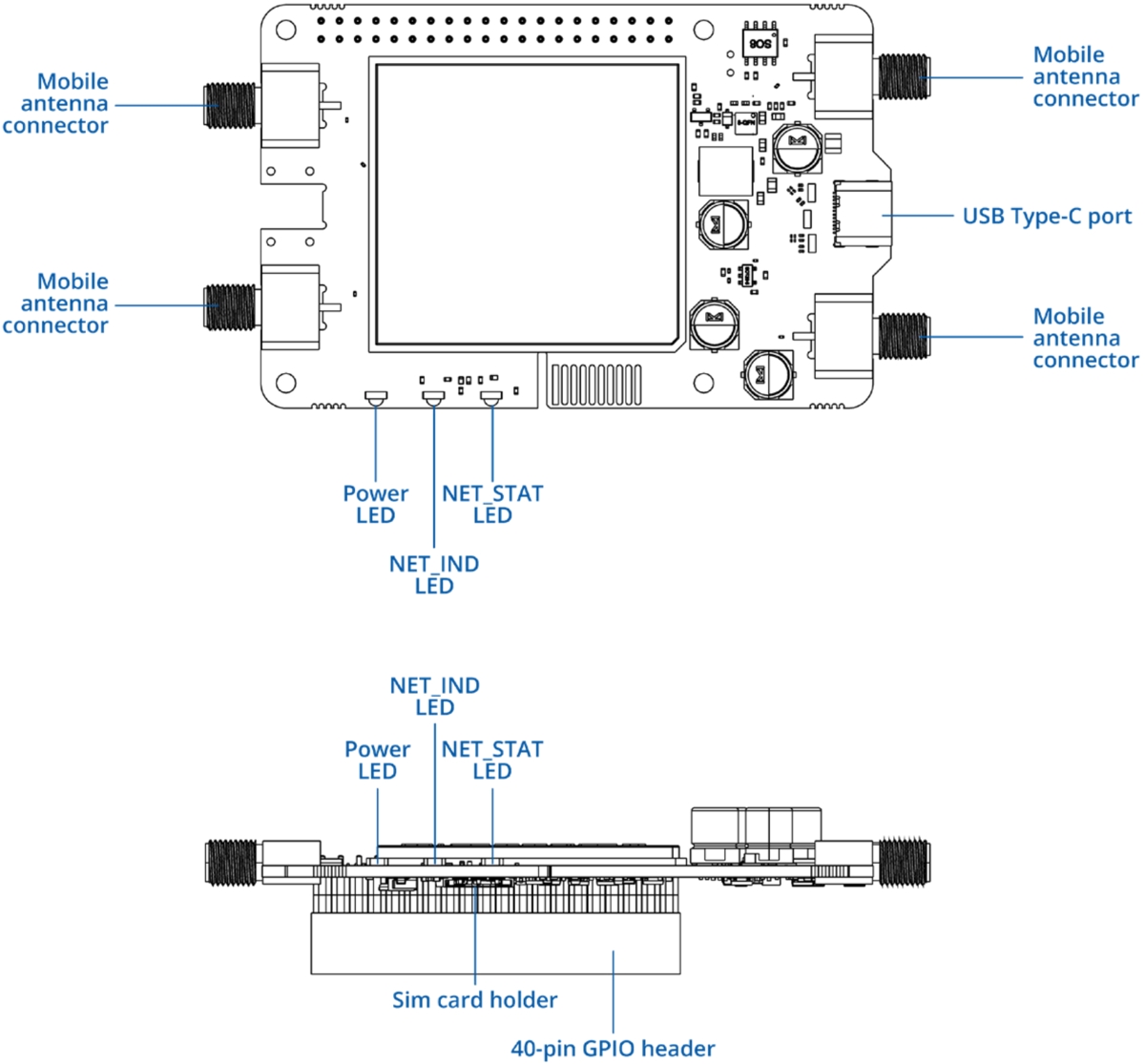

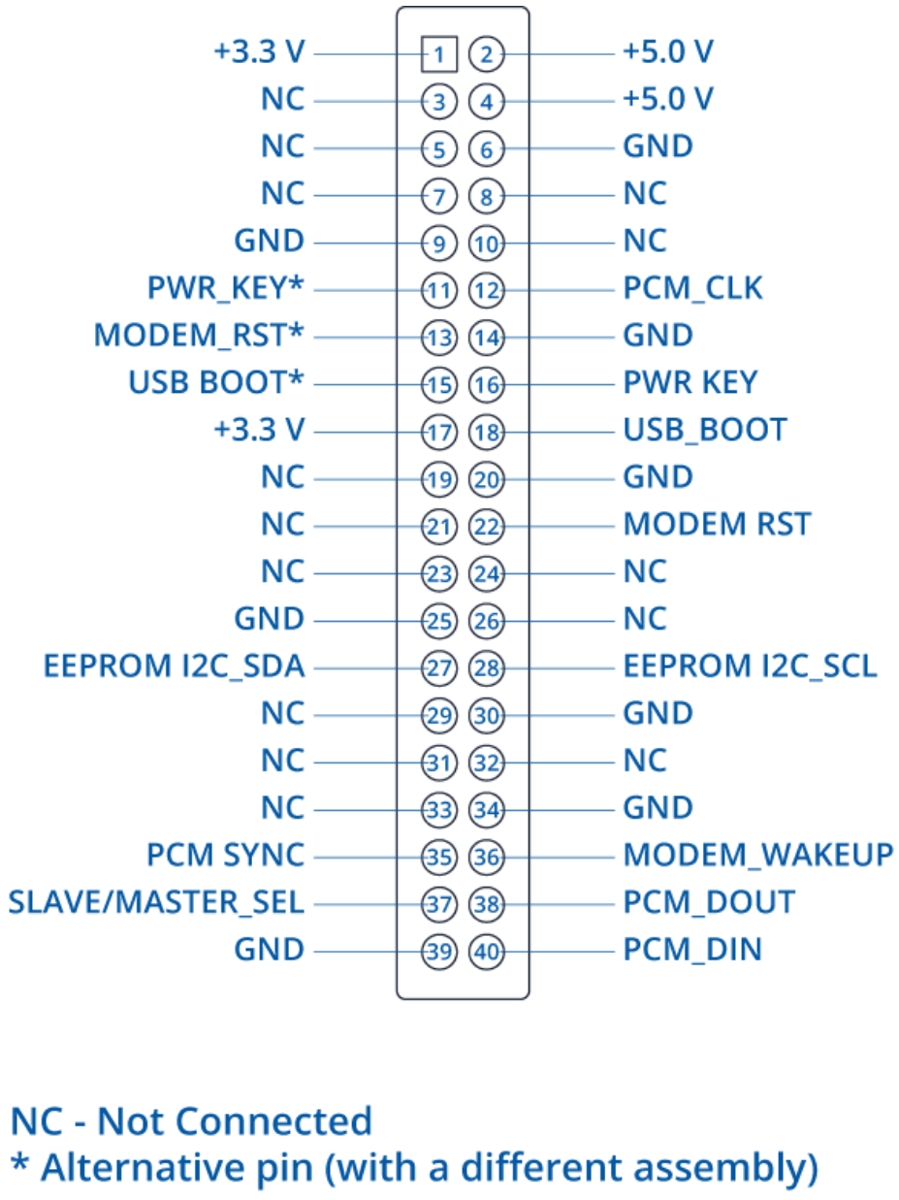

The Teltonika CALYX 5G is an expansion board (HAT+) for Raspberry Pi 4 and 5, designed to provide mobile connectivity. It is equipped with a modem supporting 5G, 4G and 3G networks, offering data speeds of up to 3.4Gbps downlink (4x4) and 900Mbps uplink (2x2). The board features (4) SMA connectors for external antennas, (1) nano SIM slot and (1) USB-C 3.0 port for connection to the RPi. It supports modem control via GPIO pins and PCM audio.
Package contents
- Device
- USB-C to USB-A cable
- PCB connector
- Mounting kit
Download
Technical parameters
LAN ports
USB-C ports
1
Wireless frequency
5G (GSM), LTE, 3G (GSM)
Type of antenna
Detachable
Detachable antennas
4
RF connectors
(4) SMA female
Power type
USB-C
4G/LTE bands support
(1) 2100 MHz, (20) 800 MHz, (28) 700 MHz, (3) 1800 MHz, (32) 1500 MHz, (38) 2600 MHz, (40) 2300 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (5) 850 MHz, (7) 2600 MHz, (71) 600 MHz, (8) 900 MHz
5G bands support
(n1) 2100 MHz, (n20) 800 MHz, (n28) 700 MHz, (n3) 1800 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n71) 600 MHz, (n75) 1500 MHz, (n76) 1500 MHz, (n77) 3700 MHz, (n78) 3500 MHz, (n8) 900 MHz
LED indication
Yes
Operating temperature [°C]
-40 up to 75
Weight [g]
57
Width [mm]
101
Height [mm]
23
Depth [mm]
56
SIM slot
Yes
