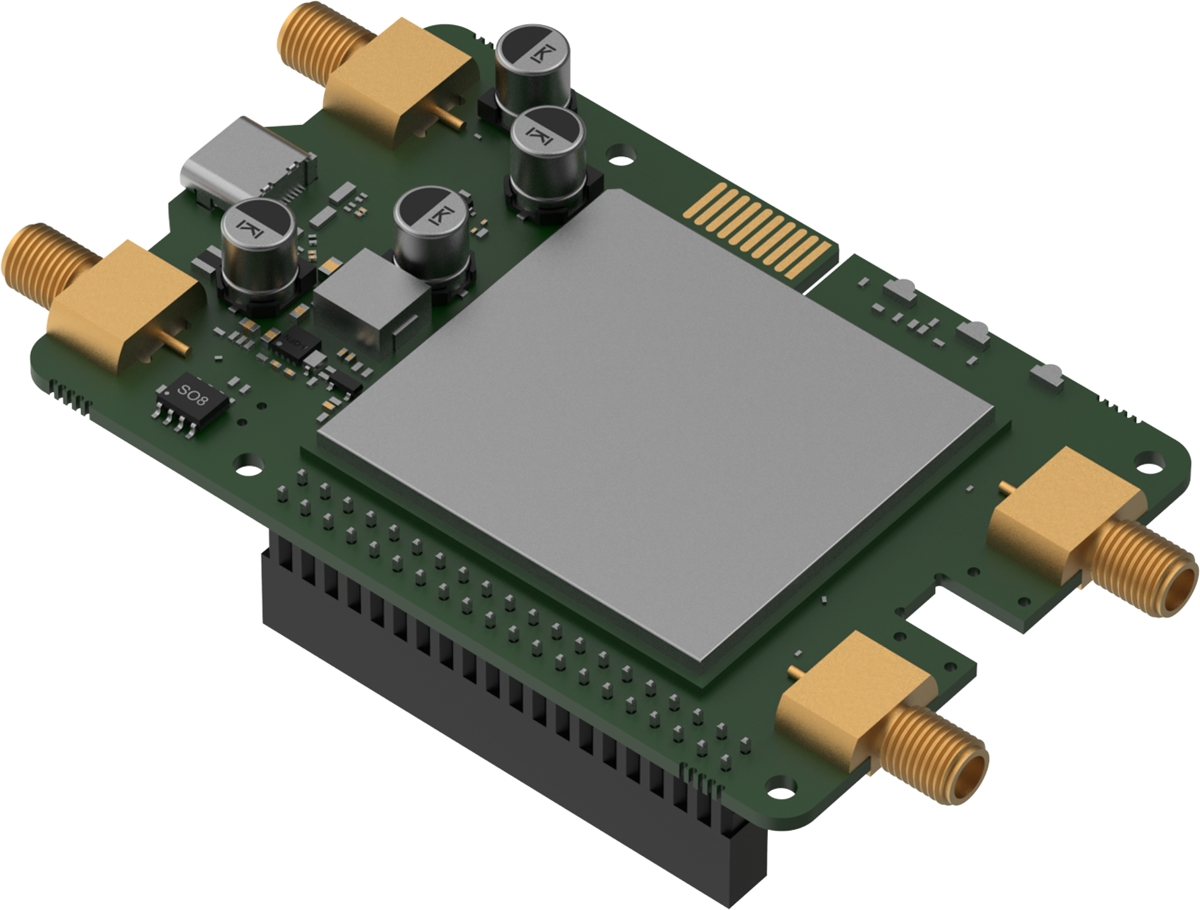

Teltonika EBD050, CALYX 5G modem HAT+ for Raspberry Pi 4 and 5

USB-C ports

1

Wireless frequency

5G (GSM), LTE, 3G (GSM)

Type of antenna

Detachable

Detachable antennas

4

RF connectors

(4) SMA female

Power type

USB-C

4G/LTE bands support

(1) 2100 MHz, (20) 800 MHz, (28) 700 MHz, (3) 1800 MHz, (32) 1500 MHz, (38) 2600 MHz, (40) 2300 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (5) 850 MHz, (7) 2600 MHz, (71) 600 MHz, (8) 900 MHz

5G bands support

(n1) 2100 MHz, (n20) 800 MHz, (n28) 700 MHz, (n3) 1800 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n71) 600 MHz, (n75) 1500 MHz, (n76) 1500 MHz, (n77) 3700 MHz, (n78) 3500 MHz, (n8) 900 MHz

LED indication

Yes

Operating temperature [°C]

-40 up to 75

Weight [g]

57

Width [mm]

101

Height [mm]

23

Depth [mm]

56

SIM slot

Yes
