Teltonika EBD021, CALYX 4G LTE modem HAT+ for Raspberry Pi 4 and 5
New
Your price incl. VAT (20.0%)
165.00 RON
Ordered for stock
Planned Delivery Date by Courier to you 11-03-2026
You have a choice of 3 variants
Product description

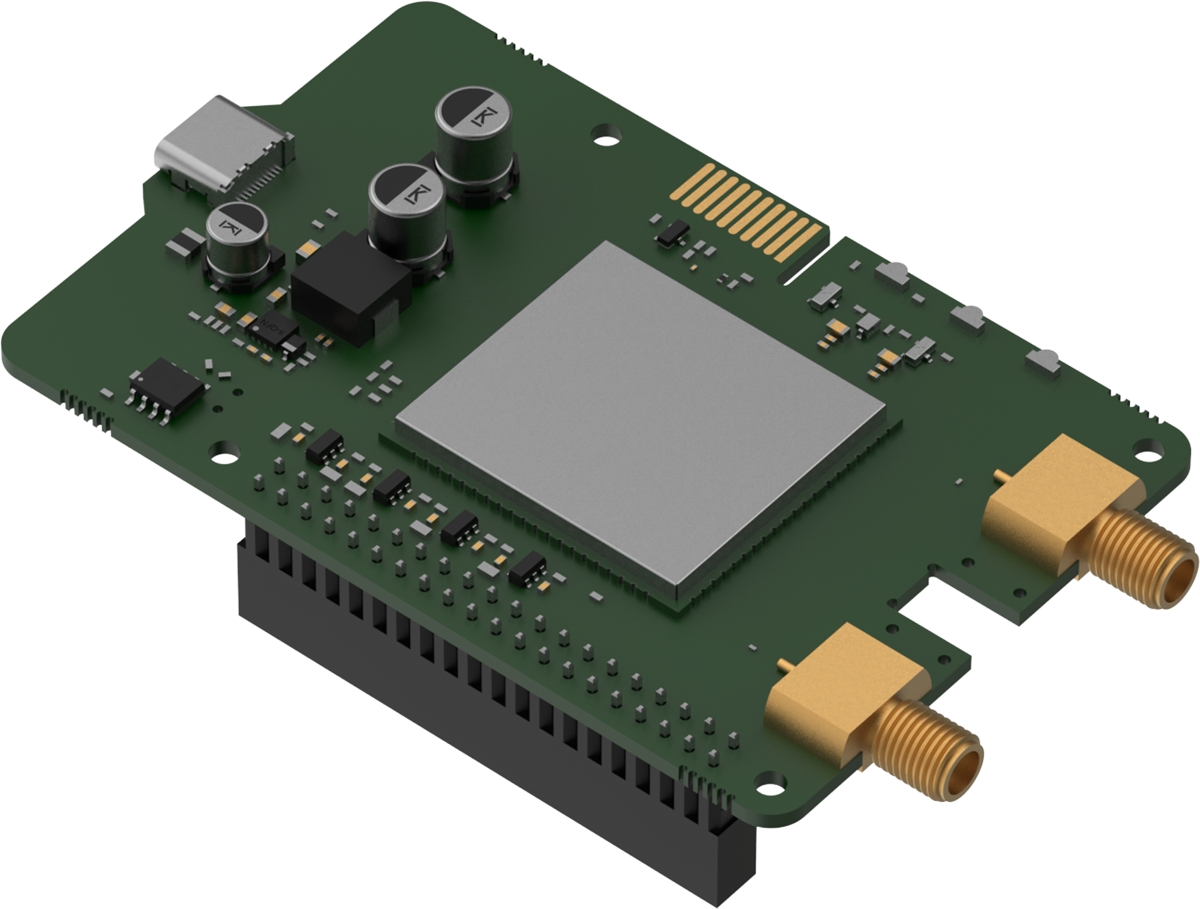

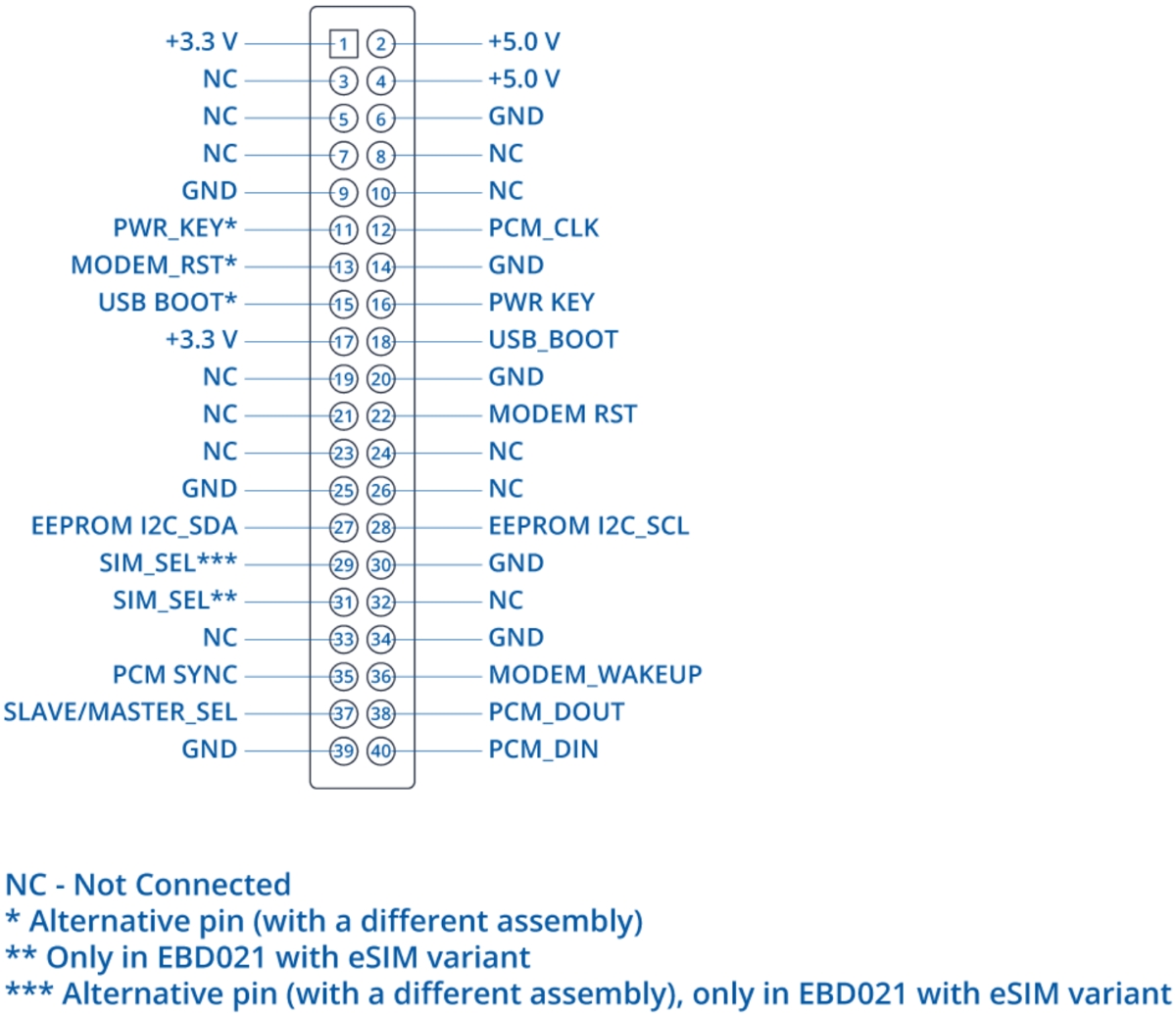

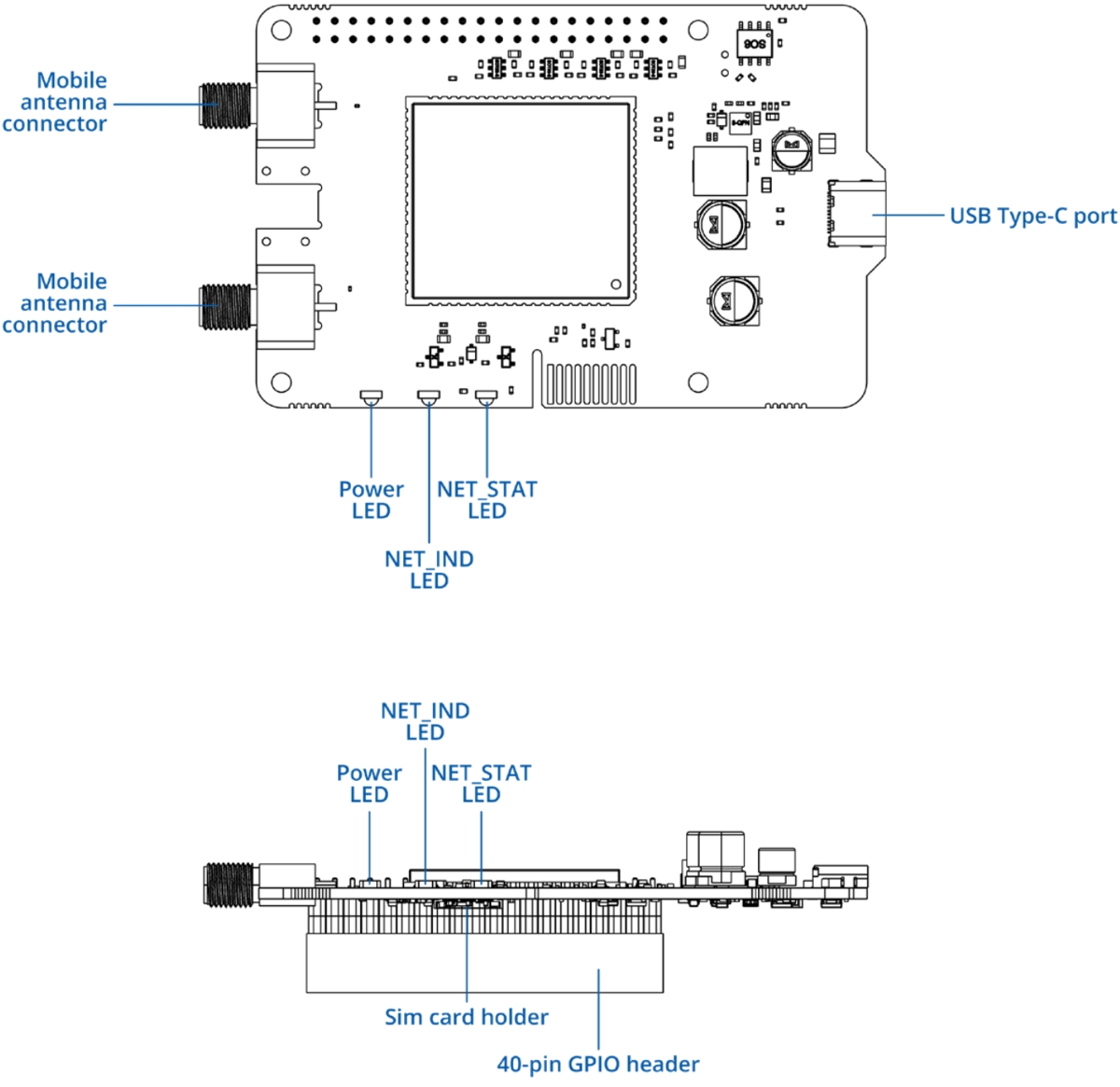

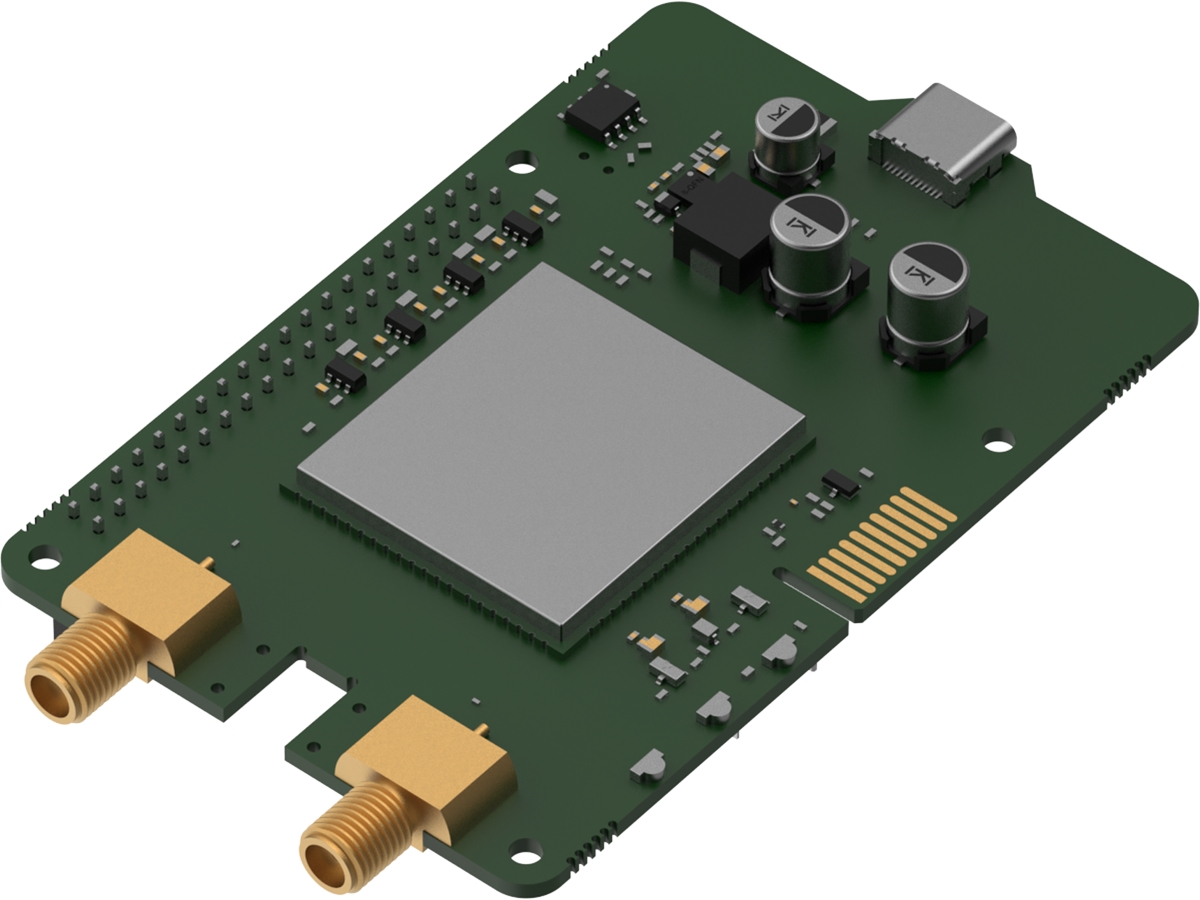

The Teltonika CALYX 4G is an expansion board (HAT+) for Raspberry Pi 4 and 5, designed to provide mobile connectivity. It is equipped with a modem supporting 4G LTE Cat. 4, 3G and 2G networks, offering data speeds of up to 75Mbps downlink and 50Mbps uplink. The board features (2) SMA connectors for external antennas, (1) nano SIM slot and (1) USB-C 2.0 port for connection to the RPi. It supports modem control via GPIO pins and PCM audio.
Package contents
- Device
- USB-C to USB-A cable
- PCB connector
- Mounting kit
Download
Technical parameters
LAN ports
USB-C ports
1
Wireless frequency
2G (GSM), 3G (GSM), LTE
Type of antenna
Detachable
Detachable antennas
2
RF connectors
(2) SMA female
Power type
USB-C
4G/LTE bands support
(1) 2100 MHz, (20) 800 MHz, (28) 700 MHz, (3) 1800 MHz, (38) 2600 MHz, (40) 2300 MHz, (41) 2500 MHz, (5) 850 MHz, (7) 2600 MHz, (8) 900 MHz
LED indication
Yes
Operating temperature [°C]
-40 up to 75
Weight [g]
57
Width [mm]
96
Height [mm]
23
Depth [mm]
56
SIM slot
Yes
