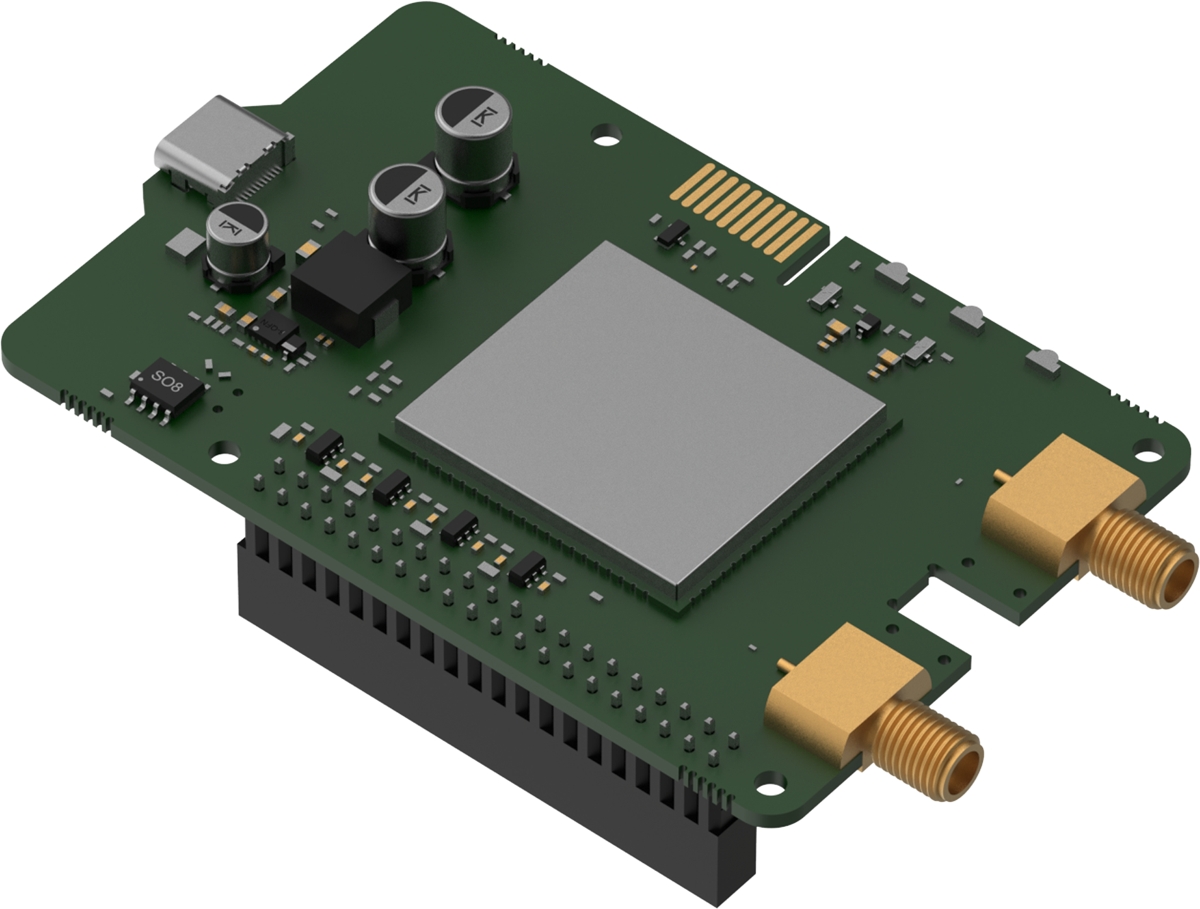

Teltonika EBD070, CALYX 5G RedCap modem HAT+ for Raspberry Pi 4 and 5
Your price incl. VAT (20.0%)
789.13 RON
Ordered for stock
Planned Delivery Date by Courier to you 11-03-2026
You have a choice of 3 variants
Product description
The Teltonika CALYX 5G RedCap (Reduced Capability) is an expansion board (HAT+) for Raspberry Pi 4 and 5, designed to provide mobile connectivity. It is equipped with a modem supporting 5G and 4G networks, offering data speeds of up to 223Mbps downlink and 123Mbps uplink. The board features (2) SMA connectors for external antennas, (1) nano SIM slot and (1) USB-C 2.0 port for connection to the RPi. It supports modem control via GPIO pins and PCM audio.
Package contents
- Device
- USB-C to USB-A cable
- PCB connector
- Mounting kit
Download
Technical parameters
LAN ports
USB-C ports
1
Wireless frequency
5G (GSM), LTE
Type of antenna
Detachable
Detachable antennas
2
RF connectors
(2) SMA female
Power type
USB-C
4G/LTE bands support
(1) 2100 MHz, (12) 700 MHz, (13) 700 MHz, (14) 700 MHz, (17) 700 MHz, (18) 850 MHz, (19) 850 MHz, (2) 1900 MHz, (20) 800 MHz, (25) 1900 MHz, (26) 850 MHz, (28) 700 MHz, (3) 1800 MHz, (34) 2000 MHz, (38) 2600 MHz, (39) 1900 MHz, (4) 1700 MHz, (40) 2300 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (5) 850 MHz, (66) 1700 MHz, (7) 2600 MHz, (71) 600 MHz, (8) 900 MHz
5G bands support
(n1) 2100 MHz, (n20) 800 MHz, (n26) 850 MHz, (n28) 700 MHz, (n3) 1800 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n5) 850 MHz, (n66) 1700 MHz, (n7) 2600 MHz, (n71) 600 MHz, (n77) 3700 MHz, (n78) 3500 MHz, (n79) 4700 MHz, (n8) 900 MHz, (n2) 1900 MHz, (n12) 700 MHz, (n13) 700 MHz, (n14) 700 MHz, (n18) 850 MHz, (n25) 1900 MHz, (n30) 2300 MHz, (n48) 3500 MHz, (n70) 2000 MHz
LED indication
Yes
Operating temperature [°C]
-40 up to 75
Weight [g]
57
Width [mm]
96
Height [mm]
23
Depth [mm]
56
SIM slot
Yes
