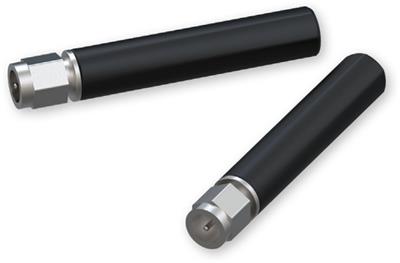

Teltonika PR1CS530 5G straight compact Mobile SMA antenna

Teltonika PR1CS530 5G straight compact Mobile SMA antenna
Your price incl. VAT (20.0%)
19.10 RON
❌ The item is not available. There is no option to order.
Delivery No confirmed delivery date
Teltonika
Manufacturer
Product number
PR1CS530
Product Code
RL030.104
Warranty
24 months

Product description

Technical data

  • Frequency range: 698 ~ 960 MHz, 1710 ~ 2690 MHz, 3300 ~ 6000 MHz
  • Polarisation: Linear
  • Radiation pattern type: Omni-directional
  • Gain: 2.8 dBi
  • V.S.W.R: 7.9
  • Efficiency: 68.9%
  • Impedance: 50 Ohm
  • Connector type: SMA Male
  • Weight: 5.1 g
  • Operating temperature: -40 °C ~ +85 °C
  • Ingress Protection Rating: IP53
  • RoHS compliant: YES
Teltonika PR1CS530

Download

https://download.discomp.cz/Teltonika/Datasheets/5g-straight-compact-mobile-sma-antenna-pr1cs530-v21.pdf
Download Datasheet

Technical parameters

LAN ports
Protection class
IP53
Connector
SMA male
Impedance [ohms]
50
Purpose
Indoor
Antenna gain [dBi]
2,8
Operating temperature [°C]
-40 up to 85
Weight [g]
5

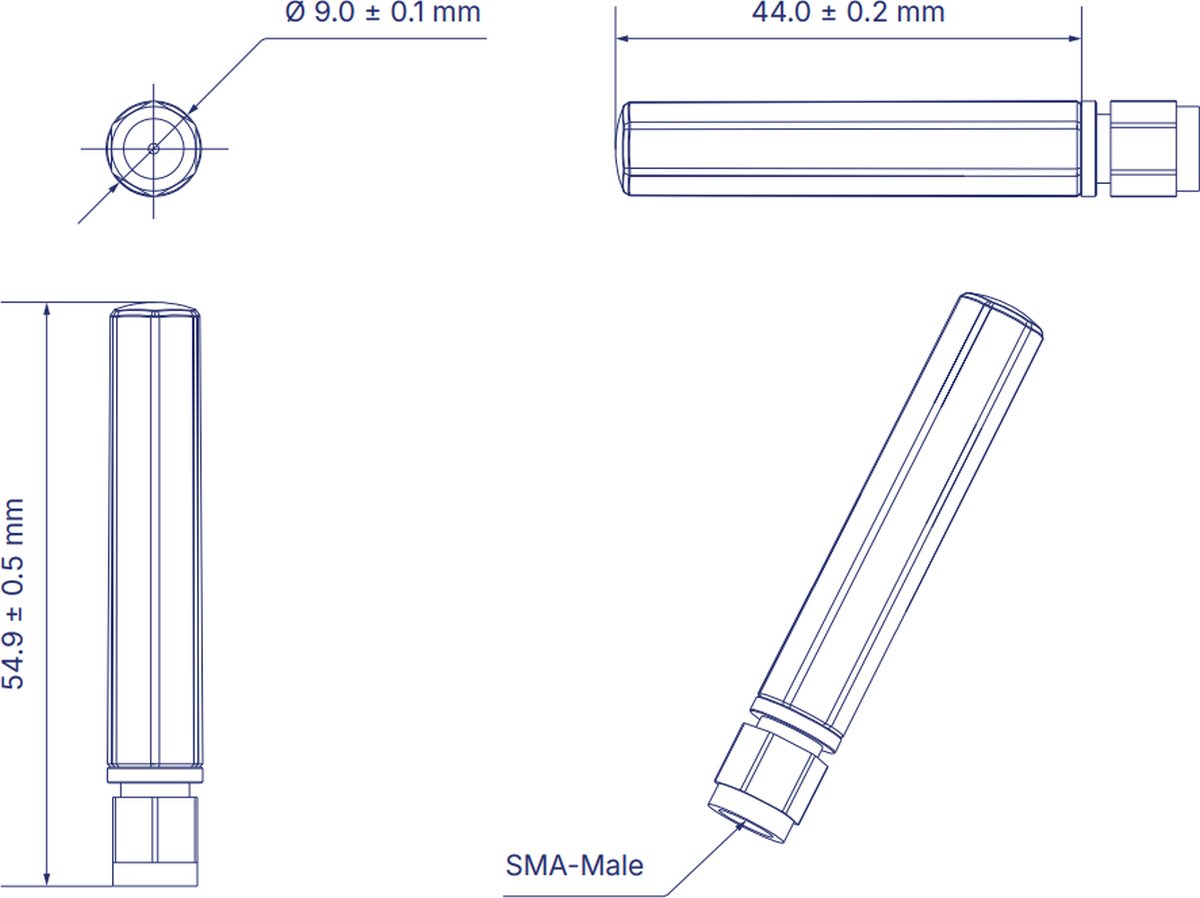

Width [mm]
9
Height [mm]
55
Depth [mm]
9
