Ubiquiti FiberPoE G2, Optical Data Transportfor Outdoor PoE Devices
Your price incl. VAT (20.0%)
149.92 RON
❌ The item is not available. There is no option to order.
No confirmed delivery date
Product description

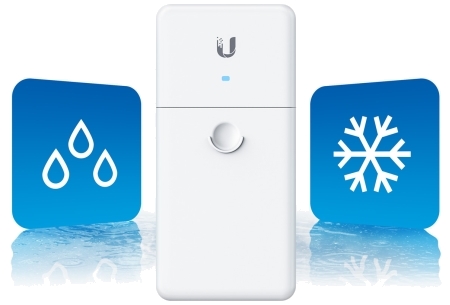

UBNT FiberPOE is low-cost, Gigabit, opto-metalic outdoor Converter, which in addition to transferring data from an optical fiber to a metallic cable can also power via PoE. Compared with the first generation, it can handle a larger larger temperature range (-40 up to 60°C).
FiberPOE includes two Ethernet ports, one SFP slot and DC terminal. For the power supply are 3 options: the first is the DC terminal, the second and the third is via RJ45 ports. The converter can be powered from 1st or 2nd Ethernet port, but only one can transmits data + poe. All three options work in a voltage range 16 to 50V DC.

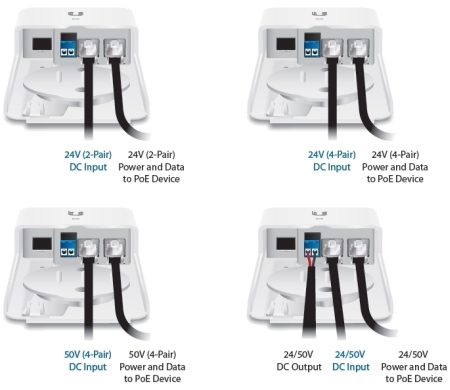

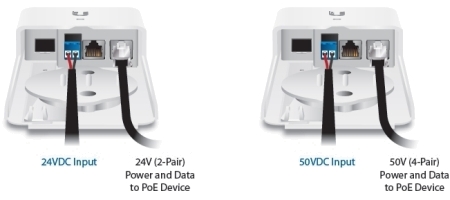

1. case - powering over DC terminal
2. case - powering over RJ45 port (only DC power)

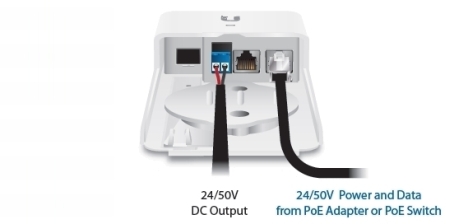

2. case - powering over 2nd RJ45 port (DC power + DATA)
Download
Technical parameters
LAN ports
Power over Ethernet
24V DC, 50V DC
Design
Outdoor
Optical Connectors
(1) SFP
Power type
PoE, DC terminal
LAN ports
1
LED indication
Yes
LAN speed
(1) 1000Mbps
SFP cages
1
Optical interfaces
(1) 1000Mbps
Max. power consumption [W]
1,5
Power via connector/terminal
16 .. 57V DC
Operating temperature [°C]
-40 up to 60
Weight [g]
288
Width [mm]
94
Height [mm]
196
Depth [mm]
32
