Ubiquiti PowerBeam5 AC 620mm, PBE-5AC-620

Ubiquiti PowerBeam5 AC 620mm, PBE-5AC-620
Your price incl. VAT (20.0%)
1,041.34 RON
✅ In Stock 40+ Бр.
Delivery Planned Delivery Date by Courier to you 11-12-2024
Ubiquiti Networks
Manufacturer
Product number
PBE-5AC-620
Product Code
RL002.767
Warranty
24 months

Product description

The PBE-5AC-620 is a suitable device for PtP connections with a 29dBi antenna gain from the airMAX AC series, which achieves very high transmission speeds and a stable connection even in a noisy environment. The unit is compatible only with other airMAX AC products and is designed for outdoor use. In the unit is possible to set very wild channel width 10/20/30/40/50/60 and 80MHz, real throughput in good condition may by up to 450Mbps+ can be achieved using 256QAM.

PBE-5AC-620

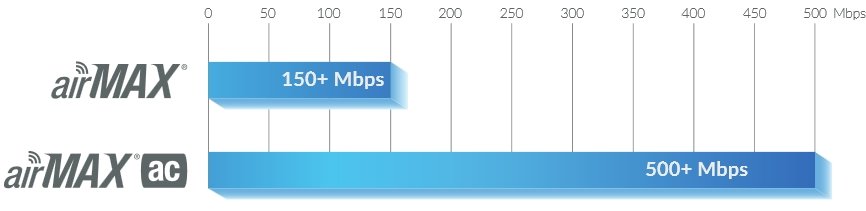

Performance Breakthrough

airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

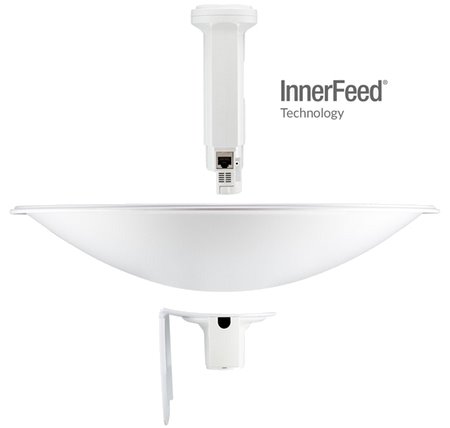

Integrated Radio Design

Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

PBE-5AC-620

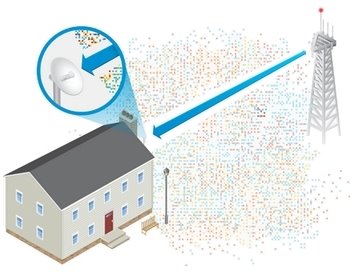

Incredible Antenna Beam Performance

The form factor of the PowerBeam™ ac features the highest gain for its size. The PowerBeam ac’s excellent beam directivity provides the best performance in high-noise environments.

PBE-5AC-620

Package contains

  • Device (feed)
  • Parabolic antenna
  • Gigabit PoE injector
  • Power cord
  • Plastic feed house
  • Holder

Download

https://download.discomp.cz/Ubiquiti/CE/PowerBeam_ac.pdf
Download CE
https://download.discomp.cz/Ubiquiti/Datasheets/PowerBeam5ac_DS.pdf
Download Datasheet
https://download.discomp.cz/Ubiquiti/Navody/airOS_UG_V71.pdf
Download airOS 7 User Guide
https://download.discomp.cz/Ubiquiti/QSG/PowerBeam_PBE-5AC-620_QSG.pdf
Download Quick Start Guide
https://www.ubnt.com/download/?group=powerbeam-ac
Download Firmware

Technical parameters

LAN ports
Power over Ethernet
20 .. 26V DC
Operating mode
Client, Repeater, AP Router, Access Point, Client Router (wisp)
Wireless frequency
5 GHz
WiFi standards
airMAX ac
Transmission speed - 5GHz [Mb/s]
866
Tx power 5GHz [dBm]
24
Security
WPA2 AES
5GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
2
Purpose
Outdoor
Antenna gain [dBi]
29
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
8,5
Buttons
Reset
Operating temperature [°C]
-40 up to 70
Weight [g]
6400
Width [mm]
650
Height [mm]
650
Depth [mm]
386
CPU
Atheros MIPS 74KC
CPU frequency [MHz]
720
IPv6 support
Transparent (bridge mode)
Default IP address
192.168.1.20
RAM [MB]
128
Default login and password
ubnt / ubnt
