WirelessPtP Backhaul5GHz

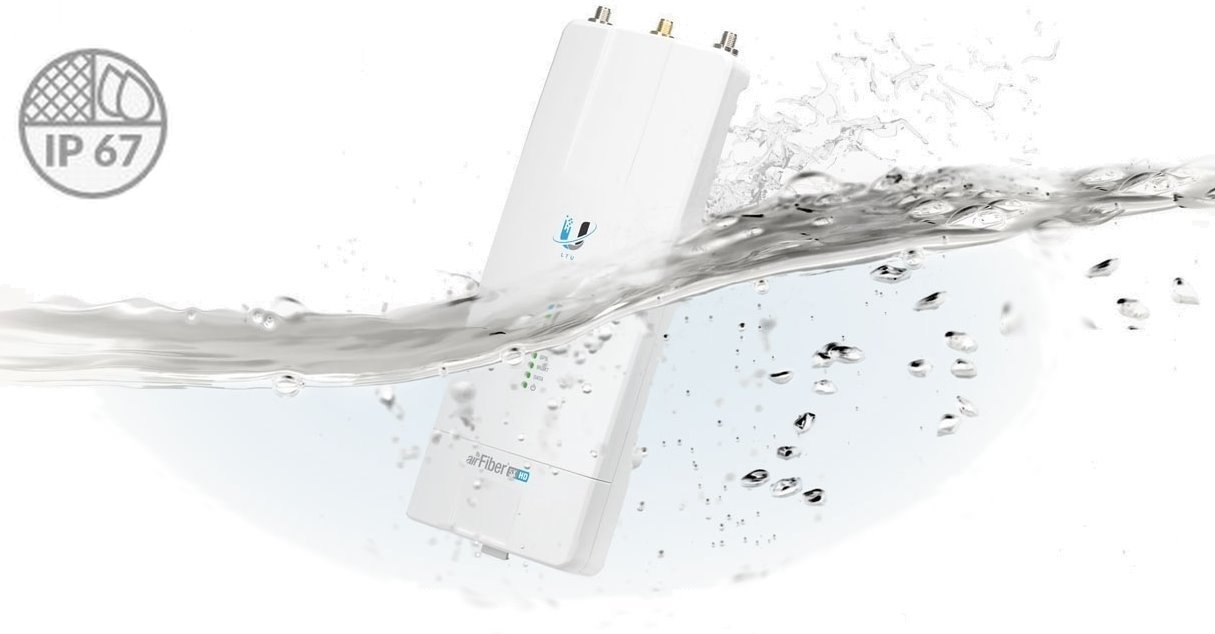

Ubiquiti AirFiber AF-5XHD, 1Gbps+, 4.8 - 6.2GHz (price per piece)

Your price incl. VAT (20.0%)

2,041.14 RON

Ordered for stock

No confirmed delivery date

Add to Cart

Manufacturer

Ubiquiti Networks

Product number

AF-5XHD

Product Code

RL004.496

Warranty

24 months

Having a question?

• Related products

Ubiquiti airFiber Dish 23dBi, 5GHz, Slant 45AF-5G23-S45

404.95 RON excl. VAT

Ubiquiti airFiber Dish 30dBi, 5GHz, Slant 45 (2pcs in package)AF-5G30-S45

961.25 RON excl. VAT

Ubiquiti airFiber Dish 34dBi, 5GHz, Slant 45AF-5G34-S45

1296.00 RON excl. VAT

Ubiquiti AirFiber AF-MPX4 airFiber Multiplexer 4x4AF-MPX4

351.02 RON excl. VAT

Ubiquiti AirFiber AF-MPX8 airFiber Multiplexer 8x8AF-MPX8

486.05 RON excl. VAT

Ubiquiti UISP-Horn, Asymmetrical sector antenna, 5GHz, 19.5dBi, 30°/25°UISP-Horn

799.25 RON excl. VAT

RF elements TPA-PAF TwistPort adaptor for Rocket Prism 5AC, airFiber 5X and LTU-RocketTPA-PAF

236.15 RON excl. VAT

RF elements directional antenna UltraHorn™ CC 5-24, 5GHz, 24dBiUH-CC-5-24

1766.07 RON excl. VAT

Ubiquiti ETH-SP-G2 - Ethernet Surge Protector, max. 10kAETH-SP-G2

48.61 RON excl. VAT

Cable ties black 29cm, 4,8mm width, 100pcsCT-290-48-B

22.92 RON excl. VAT

Ubiquiti UISP-Dish parabolic antenna, 30dBi, 5-6GHzUISP-Dish

728.95 RON excl. VAT

Masterlan comfort patch cable UTP, Cat5e, 5m, grayPCU5E-5-MSC

10.01 RON excl. VAT

Masterlan patch cable UTP, Cat5e, 1m, yellowPCU5E-1YW-MS

1.77 RON excl. VAT

Masterlan Comfort FTP outdoor wire cable Cat5e, PE, 24AWG, 305mOFTP5E24-MSC

535.89 RON excl. VAT

•
• Download

Download

https://dl.ubnt.com/guides/airfiber/airFiber_AF-5XHD_QSG.pdf

Quick Guide

https://techspecs.ui.com/uisp/wireless/airfiber-5xhd-1

Datasheet

Technical parameters

LAN ports

Power over Ethernet

24 .. 50V DC

Sensitivity [dBm]

-90

Frequency range [MHz]

4800 - 6200

Maximum modulation

1024 QAM

Operating mode

Access Point, Client

Wireless frequency

5 GHz

Transmission speed - 5GHz [Mb/s]

1000

Tx power 5GHz [dBm]

29

Security

WPA2 AES

5GHz MIMO

2 x 2

Type of antenna

Detachable

Detachable antennas

2

RF connectors

(2) RSMA female, (1) SMA female

Purpose

Outdoor

LAN ports

2

LAN speed

(1) 10/100/1000Mbps + (1) 10/100/1000Mbps (managment)

Gigabit LAN

Yes

PoE type

PoE-In (only)

Max. power consumption [W]

12

Buttons

Reset

Operating temperature [°C]

-40 up to 55

Weight [g]

350

Width [mm]

82

Height [mm]

224

Depth [mm]

48

CPU

airFiber LTU IC

IPv6 support

Transparent (bridge mode)

Default IP address

192.168.1.20

Default login and password

ubnt / ubnt

GPS modul

Yes
