Ubiquiti airFiber Dish 23dBi, 5GHz, Slant 45
Your price incl. VAT (20.0%)
496.58 RON
✅ In Stock 10+ Бр.
Planned Delivery Date by Courier to you 01-01-2025
You have a choice of 3 variants
39.64 RON excl. VAT
Product description
The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings. Housed in a compact form factor (378-mm diameter size), the AF-5G23-S45 offers 23dBi of gain and features the following advantages:- Low sidelobes reduce interference from other transmitters in the area.
- High isolation enhances performance for co-location in tower-mounted installations.
- The low-profile design with integrated radome reduces wind-loading.
The airFiber X supports ± 45° slant polarization for improved noise immunity and Signal-to-Noise Ratio (SNR). The airFiber X antennas are purpose-built with 45° slant polarity for seamless integration with the airFiber X.

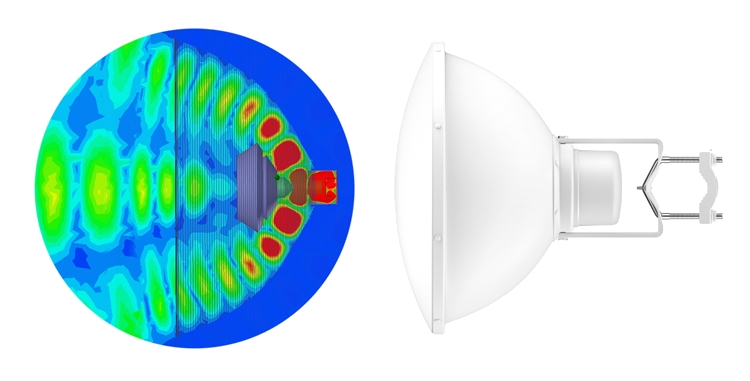

The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks.
Package contains
- Antenna
- Protective shroud
- (2) RSMA male - RSMA male pigtail
- Mount bracket + screws
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2 (slant - 45° turned)
Polarization
VH (slant)
Antenna design
Parabolic
VSWR
< 1,5
F/B ratio [dB]
30
Cross-Pol Isolation [dB]
35
Wind load [km/h]
200
Rocket kit
Yes
Radom
Yes
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
10
Azimuth beam width (-6dB) [°]
10
Antenna type
Directional
RF connectors
(2) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
23
Weight [kg]
3,4
Width [mm]
378
Height [mm]
378
Depth [mm]
290
