Ubiquiti Rocket R2AC-Prism, 2GHz

Ubiquiti Rocket R2AC-Prism, 2GHz
Your price incl. VAT (20.0%)
1,010.16 RON
✅ In Stock 20+ Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
Ubiquiti Networks
Manufacturer
Product number
R2AC-PRISM
Product Code
RL004.023
Warranty
24 months

Product description

Rocket® Prism access points incorporate high-performance airMAX ac and airPrism technologies for maximum performance of wireless networks in high-density areas, in 2.4 GHz. Maximal modulation speed is 433Mbps with 40MHz channel width.

Revolutionary Filtering Technology

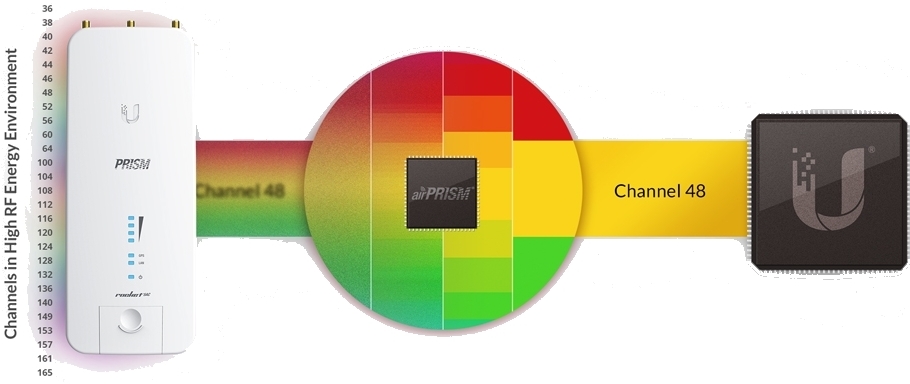

Ubiquiti’s patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.

airprism chip rocket 2 ac

Designed for High Performance

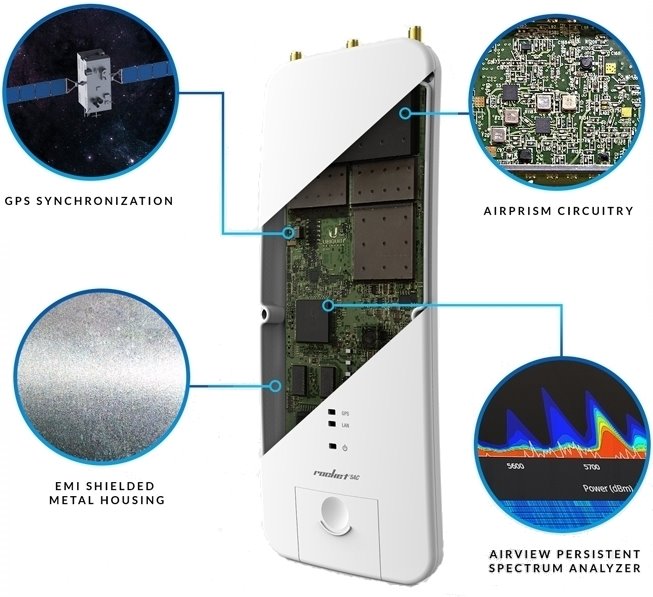

The Rocket® Prism AC features EMI-shielded metal housing, GPS (since 8.3.1 fw), airPrism circuitry, and the airView® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.

R2AC-PRISM

Now with airOS®8

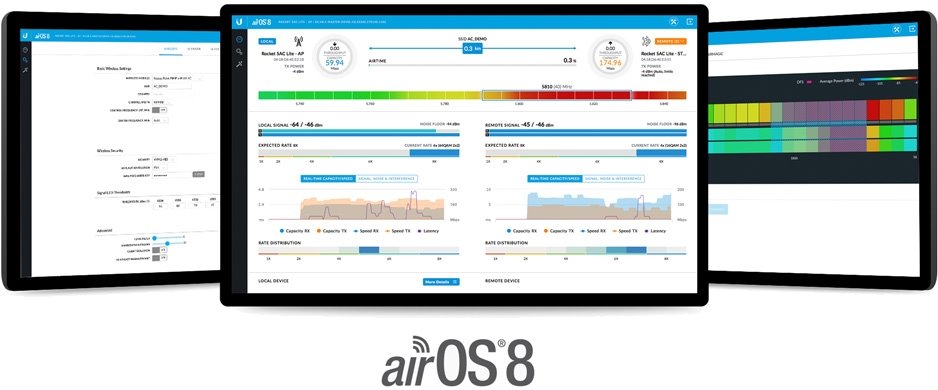

airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

airOS 8

Package contains

  • Device
  • PoE power adapter 24V / 0.5A, gigabit
  • Power cord
  • GPS antenna

Download

https://dl.ubnt.com/datasheets/RocketAC/Rocket_R2AC_DS.pdf
Download Datasheet
https://dl.ubnt.com/guides/GPS-Sync/GPS_Sync_Design_Guide.pdf
Download GPS Sync
https://dl.ubnt.com/guides/Rocket_R2AC/Rocket_R2AC_QSG.pdf
Download Quick Guide

Technical parameters

LAN ports
Power over Ethernet
18 .. 26V DC
Operating mode
AP Router, Access Point, Client, Client Router (wisp)
Wireless frequency
2.4 GHz
WiFi standards
airMAX ac
Transmission speed - 2.4GHz [Mb/s]
433
Tx power 2.4GHz [dBm]
27
Security
WPA2 AES
2.4GHz MIMO
2 x 2
Type of antenna
Detachable
Detachable antennas
2
RF connectors
(2) RSMA female, (1) SMA female
Purpose
Outdoor
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
8,5
Buttons
Reset
Operating temperature [°C]
-40 up to 70
Weight [g]
440
Width [mm]
88
Height [mm]
230
Depth [mm]
40
CPU
MIPS 74Kc
CPU frequency [MHz]
720
IPv6 support
Transparent (bridge mode)
Default IP address
192.168.1.20
RAM [MB]
128
Default login and password
ubnt / ubnt
GPS modul
Yes
Other features
WiFi management radio
