Ubiquiti AM-V2G-Ti, 2.4GHz, sector antenna Titanium, changeable angle 60°-120°, 15-17dBi

Ubiquiti AM-V2G-Ti, 2.4GHz, sector antenna Titanium, changeable angle 60°-120°, 15-17dBi
Your price incl. VAT (20.0%)
1,317.61 RON
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 01-01-2025
Ubiquiti Networks
Manufacturer
Product number
AM-V2G-Ti
Product Code
RL001.192
Warranty
24 months

Product description

AM-V2G-Ti airMAX Titanuim Sector Antenna is a 15 - 17dBi Carrier Class 2x2 MIMO (Dual Polarity) Sector Antenna with 60° - 120° beam angle that was designed for 2.4GHz band and for integrate with Rocket M radios (RocketM sold separately).

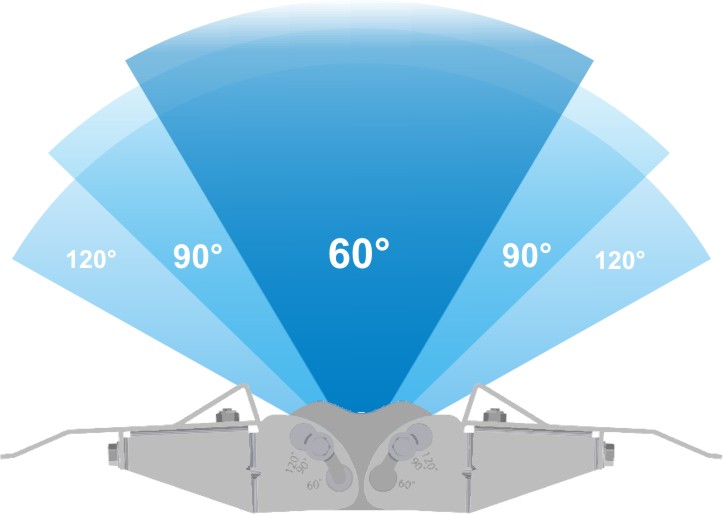

Adjustable Beamwidth Configuration - Having adjustable beamwidth options enhances scalability and streamlines inventory. The airMAX Titanium Sector may be custom configured for any deployment requiring a 60°, 90°, or 120° sector. Antenna gain changes according to the configured beamwidth.



The airMAX Titanium Sector was specifically engineered for optimal performance when paired with a Rocket™M Titanium.
  • 20% increase in performance with PtMP networks
  • Up to 90% performance improvement in a co-location environment
  • Increased durability in harsh weather

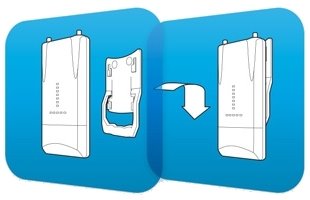

Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.

Package contains

  • Antenna
  • Rocket protector
  • (2) RSMA male - RSMA male pigtail
  • Holder + screws

Download

https://download.discomp.cz/Ubiquiti/Datasheets/airMAX_Ti_Sector_DS.pdf
Download Datasheet
https://download.discomp.cz/Ubiquiti/QSG/airMAX_Sector_AM-V2G-Ti_QSG.pdf
Download Quick Start Guide

Technical parameters

LAN ports
MIMO, SISO
2 x 2
Polarization
VH
VSWR
< 1,5
F/B ratio [dB]
30
Designed for mast diameter [mm]
30 up to 80
Cross-Pol Isolation [dB]
20
Wind load [km/h]
200
Rocket kit
Yes
Variability of beam angle
Yes
Wireless frequency
2.4 GHz
Elevation beam width (-6dB) [°]
120, 90, 60
Azimuth beam width (-6dB) [°]
60, 90, 120
Antenna type
Sector
RF connectors
(2) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
15, 16, 17
Weight [kg]
3,7
Width [mm]
149
Height [mm]
721
Depth [mm]
75
