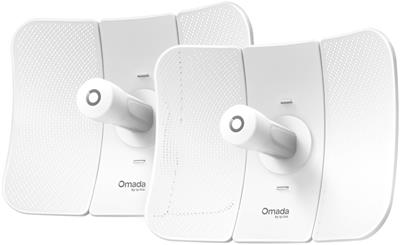

TP-Link Beam Bridge 5 UR KIT, 5GHz wireless bridge
Your price incl. VAT (20.0%)
1,180.78 RON
Ordered for stock
Planned Delivery Date by Courier to you 18-02-2026
43.04 RON excl. VAT
Product description
The TP-Link Beam Bridge 5 UR KIT is an enterprise-grade preconfigured 5GHz wireless bridge kit with throughput of up to 867Mbps over distances of up to 15km, (1) 1Gbit PoE-In port, high-gain 23dBi directional antennas and easy alignment using a mobile app.
Key features
- (1) 1Gbit PoE-In port
- 5GHz bridge - PtP link with a range of up to 15km and throughput up to 867Mbps
- App-guided alignment: - visualized app-guided alignment for long-distance setups and instant speed testing for installation verification
- IP65 weatherproof enclosure
- Powered via active 802.3af PoE or 24V/48V passive PoE

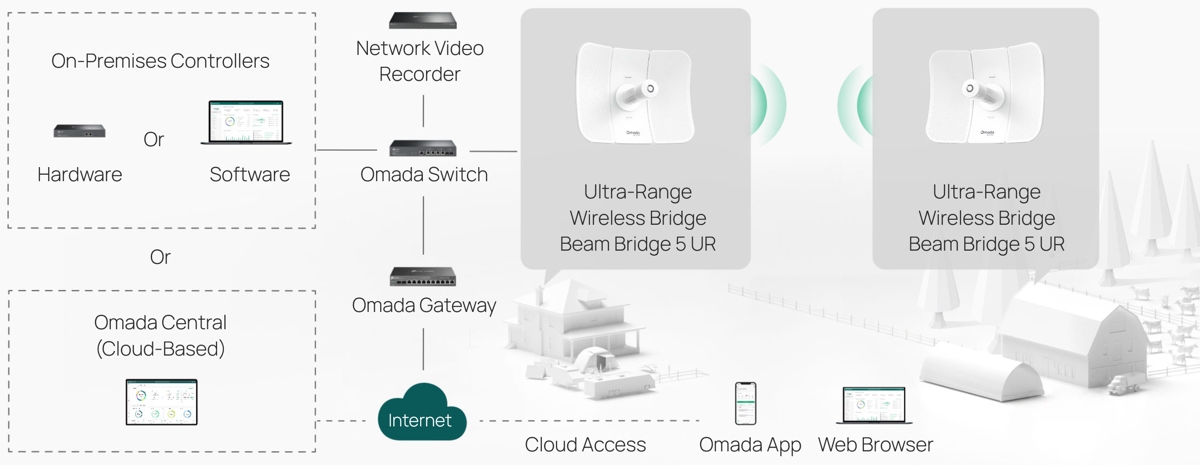

The easy way to centralized management
The Omada Software Defined Networking (SDN) platform integrates network devices, including Access Points, Switches, Gateway Routers, and provides 100% centralized cloud management. Omada creates a highly scalable network, including control from a single interface. It provides seamless wireless and wired connectivity, ideal for use in hospitality, education, retail, offices and more.
Package contents
- (2) Devices
- (2) Mounting brackets
- (2) Mounting accessories
- (2) Passive PoE injectors
Technical parameters
LAN ports
Power over Ethernet
802.3af, 48V DC, 24V DC
Sensitivity [dBm]
-95
Protection class
IP65
Maximum modulation
256 QAM
Operating mode
Bridge
Wireless frequency
5 GHz
WiFi standards
802.11n, 802.11ac
Transmission speed - 5GHz [Mb/s]
866
Tx power 5GHz [dBm]
30
Elevation beam width (-6dB) [°]
7
Azimuth beam width (-6dB) [°]
9
5GHz MIMO
2 x 2
Type of antenna
Fixed
Fixed antennas
1
Purpose
Outdoor
Antenna gain [dBi]
23
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
RJ45 ports 1G
1
Max. power consumption [W]
16
Buttons
Reset, mode
Operating temperature [°C]
-40 up to 70
Weight [g]
1100
Width [mm]
366
Height [mm]
207
Depth [mm]
280
