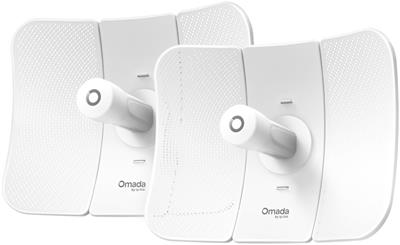

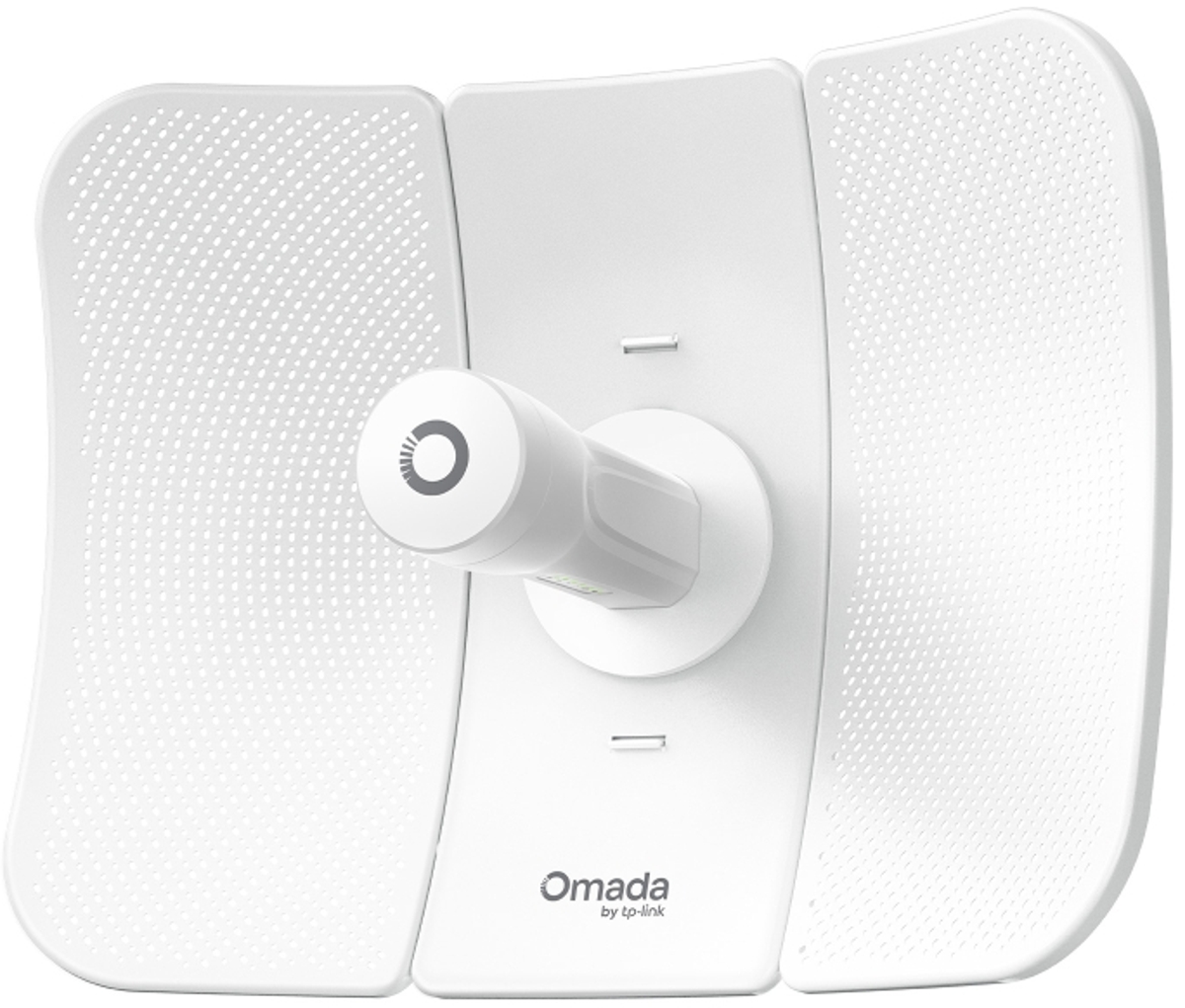

TP-Link Beam Bridge 5 UR KIT, 5GHz wireless bridge

TP-Link Beam Bridge 5 UR KIT, 5GHz wireless bridge
Your price incl. VAT (20.0%)
1,180.78 RON
Comandat pentru disponibilitate
Delivery Data de livrare planificată prin curier către dvs 18-02-2026
TP-Link
Manufacturer
TP-Link
Product number
Beam Bridge 5 UR KIT
Product Code
RL030.490
Warranty
60 months

Having a question?
Antenna holder on mast L , lenght 35cm, height 20cm, d=42mm + 1x U-Bolt 100mm
Antenna holder on mast "L", lenght 35cm, height 20cm, d=42mm + 1x U-Bolt 100mmSL1-100-035-020-042
43.04 RON excl. VAT
Adaugă in coş
Masterlan patch cable UTP, Cat5e, 1m, yellow
Masterlan patch cable UTP, Cat5e, 1m, yellowPCU5E-1YW-MS
1.73 RON excl. VAT
Adaugă in coş
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
Masterlan comfort patch cable UTP, Cat5e, 5m, grayPCU5E-5-MSC
9.61 RON excl. VAT
Adaugă in coş
TP-Link OC200 - Omada hardware controller
TP-Link OC200 - Omada hardware controllerOC200
438.62 RON excl. VAT
Adaugă in coş
TP-Link OC220 - Omada hardware controller
TP-Link OC220 - Omada hardware controllerOC220
658.06 RON excl. VAT
Adaugă in coş
TP-Link OC300 - Omada Hardware Controller
TP-Link OC300 - Omada Hardware ControllerOC300
1096.68 RON excl. VAT
Adaugă in coş
TP-Link OC400 - Omada hardware controller
TP-Link OC400 - Omada hardware controllerOC400
3533.77 RON excl. VAT
Adaugă in coş
Ubiquiti ETH-SP-G2 - Ethernet Surge Protector, max. 10kA
Ubiquiti ETH-SP-G2 - Ethernet Surge Protector, max. 10kAETH-SP-G2
46.54 RON excl. VAT
Adaugă in coş
Masterlan Comfort FTP outdoor wire cable Cat5e, PE, 24AWG, 305m
Masterlan Comfort FTP outdoor wire cable Cat5e, PE, 24AWG, 305mOFTP5E24-MSC
513.66 RON excl. VAT
Adaugă in coş
Cable ties black 29cm, 4,8mm width, 100pcs
Cable ties black 29cm, 4,8mm width, 100pcsCT-290-48-B
22.04 RON excl. VAT
Adaugă in coş
Ubiquiti U-PoE+ - Gigabit PoE injector 48V/0,65A (30W)
Ubiquiti U-PoE+ - Gigabit PoE injector 48V/0,65A (30W)U-PoE+
62.12 RON excl. VAT
Adaugă in coş
MaxLink PI30 PoE injector - 802.3af/at, 55V, 550mA, 30W, 1Gbit
MaxLink PI30 PoE injector - 802.3af/at, 55V, 550mA, 30W, 1GbitMAXPI30
64.48 RON excl. VAT
Adaugă in coş
Ubiquiti POE-24-30W, Gigabit PoE Injector, 24V/1.25A (30W)
Ubiquiti POE-24-30W, Gigabit PoE Injector, 24V/1.25A (30W)POE-24-30W
56.89 RON excl. VAT
Adaugă in coş

Technical parameters

LAN ports
Power over Ethernet
802.3af, 48V DC, 24V DC
Sensitivity [dBm]
-95
Protection class
IP65
Maximum modulation
256 QAM
Operating mode
Bridge
Wireless frequency
5 GHz
WiFi standards
802.11n, 802.11ac
Transmission speed - 5GHz [Mb/s]
866
Tx power 5GHz [dBm]
30
Elevation beam width (-6dB) [°]
7
Azimuth beam width (-6dB) [°]
9
5GHz MIMO
2 x 2
Type of antenna
Fixed
Fixed antennas
1
Purpose
Outdoor
Antenna gain [dBi]
23
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
RJ45 ports 1G
1
Max. power consumption [W]
16
Buttons
Reset, mode
Operating temperature [°C]
-40 up to 70
Weight [g]
1100
Width [mm]
366
Height [mm]
207
Depth [mm]
280
