You have a choice of 2 variants
43.73 RON excl. VAT

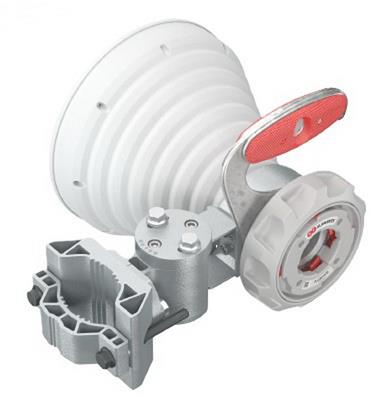

RF elements TPA-PAF TwistPort adaptor for Rocket Prism 5AC, airFiber 5X, LTU-Rocket and Wave MLO5TPA-PAF
248.67 RON excl. VAT
Download
Technical parameters
LAN ports
Polarization
VH
F/B ratio [dB]
33
Designed for mast diameter [mm]
30 up to 80
Wind load [km/h]
180
Protection class
IP55
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
30
Azimuth beam width (-6dB) [°]
30
Antenna type
Sector
RF connectors
TwistPort
Purpose
Outdoor
Antenna gain [dBi]
18
Material
Aluminum, Stainless steel, UV stabilized ABS plastic
Operating temperature [°C]
-30 up to 55
Weight [kg]
2,7
Width [mm]
240
Height [mm]
245
Depth [mm]
380
