RF elements TP-ADAP-e2K TwistPort adaptor for ePMP2000 AP

RF elements TP-ADAP-e2K TwistPort adaptor for ePMP2000 AP
Your price incl. VAT (20.0%)
233.80 RON
✅ In Stock 20+ Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
RF elements
Manufacturer
Product number
TP-ADAP-e2K
Product Code
RL015.649
Warranty
24 months

Product description

TwistPort Adaptor for Cambium NetworksTM ePMP2000 Integrated Radios allows easy integration with any RF-Elements antenna with TwistPort connector. TwistPort Adaptor uses special coaxial connectors without threads, so the integration of ePMP2000 AP Radios is revolutionary easy. Simply slide the radio into the Adaptor until you hear “click”. To unlock, press the button and slide the radio out.

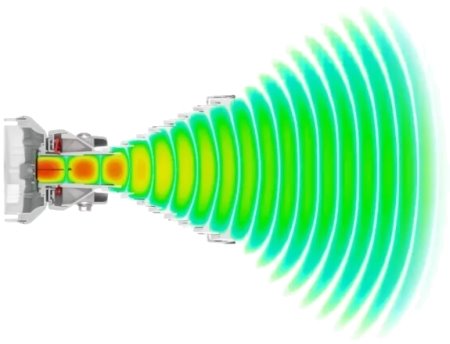

Symmetrical Sectors feature industry changing TwistPortTM Connector, our patent pending quick-locking waveguide port. TwistPortTM is virtually lossless: there are no coaxial RF connectors or RF cables, that cause significant signal loss. Connection and disconnection is brilliantly simple "twist and snap" and can be done with one hand.

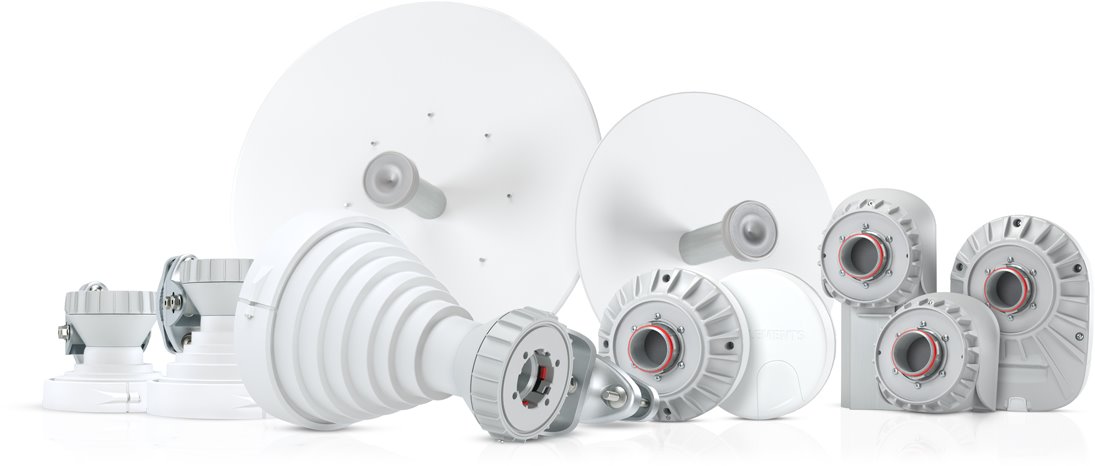

TwistPort Adaptors make most popular connectorized radios and MikroTik RouterBoards compatible with TwistPort antennas. Integration into TwistPort eco-system ensures the benefits of low loss, high scalability, easy co-location, simple deployment and easy maintenance.

Download

https://download.discomp.cz/RFelements/Datasheets/TP-ADAP-e2K.pdf
Download Datasheet

Technical parameters

LAN ports
MIMO, SISO
2 x 2
Polarization
VH
VSWR
< 1,8
Wireless frequency
5 GHz
RF connectors
TwistPort
Purpose
Outdoor
Material
UV stabilized ABS plastic, Aluminum
Operating temperature [°C]
-40 up to 60
Weight [g]
420
Width [mm]
157
Height [mm]
154
Depth [mm]
116
