RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi

RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi
Your price incl. VAT (20.0%)
591.90 RON
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 20-11-2024
RF elements
Manufacturer
RF elements
Product number
AS-2-14
Product Code
RL009.861
Warranty
24 months

Having a question?
You have a choice of 2 variants
RF elements AS-2-17 - Array Sector Antenna 2.4 GHz, 17dBi
AS-2-17
551.27 RON excl. VAT
RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi
AS-2-14
493.25 RON excl. VAT
Antenna holder on mast L , lenght 35cm, height 20cm, d=42mm + 1x U-Bolt 100mm
Antenna holder on mast "L", lenght 35cm, height 20cm, d=42mm + 1x U-Bolt 100mmSL1-100-035-020-042
39.29 RON excl. VAT
Add to Cart

Download

https://download.discomp.cz/rfelements/Datasheets/Datasheet-AS-2-14.pdf
Download Datasheet

Technical parameters

LAN ports
MIMO, SISO
2 x 2
Polarization
VH
VSWR
< 1,6
F/B ratio [dB]
21
Designed for mast diameter [mm]
40 up to 80
Cross-Pol Isolation [dB]
35
Wind load [km/h]
160

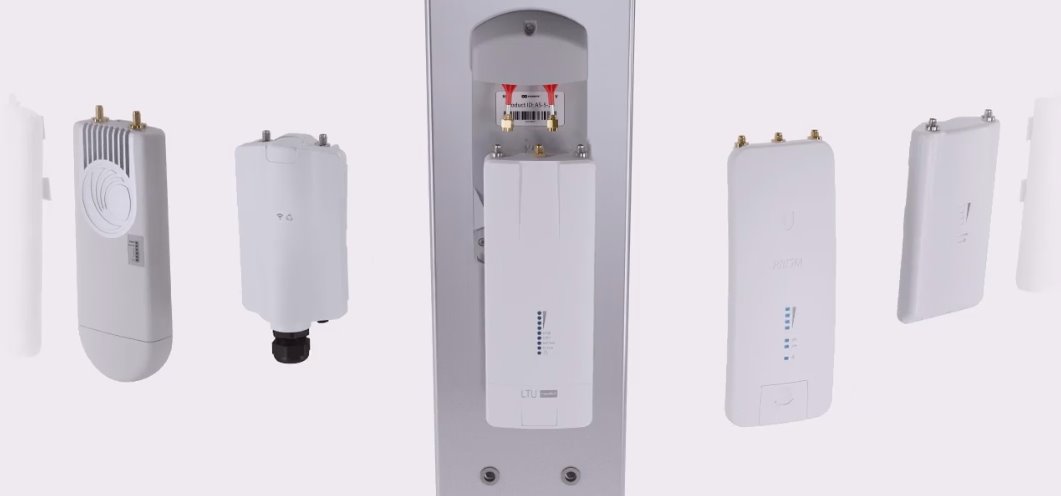

Rocket kit
Yes
Protection class
IP55
Wireless frequency
2.4 GHz
Elevation beam width (-6dB) [°]
21
Azimuth beam width (-6dB) [°]
112
Antenna type
Sector
RF connectors
(2) RSMA male
Purpose
Outdoor
Antenna gain [dBi]
14
Material
Aluminum, Stainless steel, UV stabilized ABS plastic
Operating temperature [°C]
-35 up to 60
Weight [kg]
3,7
Width [mm]
160
Height [mm]
804
Depth [mm]
63
