RF elements AS-2-17 - Array Sector Antenna 2.4 GHz, 17dBi

RF elements AS-2-17 - Array Sector Antenna 2.4 GHz, 17dBi
Your price incl. VAT (20.0%)
661.52 RON
Ordered for stock
Delivery Planned Delivery Date by Courier to you 27-11-2024
RF elements
Manufacturer
Product number
AS-2-17
Product Code
RL019.765
Warranty
24 months

Download

https://download.discomp.cz/rfelements/datasheets/AS-2-17.pdf
Download Datasheet

Technical parameters

LAN ports
MIMO, SISO
2 x 2
Polarization
VH
VSWR
< 1,6
F/B ratio [dB]
21
Designed for mast diameter [mm]
40 up to 80
Cross-Pol Isolation [dB]
30
Wind load [km/h]
160
Rocket kit
Yes
Protection class
IP55
Wireless frequency
2.4 GHz
Elevation beam width (-6dB) [°]
10
Azimuth beam width (-6dB) [°]
115
Antenna type
Sector
RF connectors
(2) RSMA male
Purpose
Outdoor

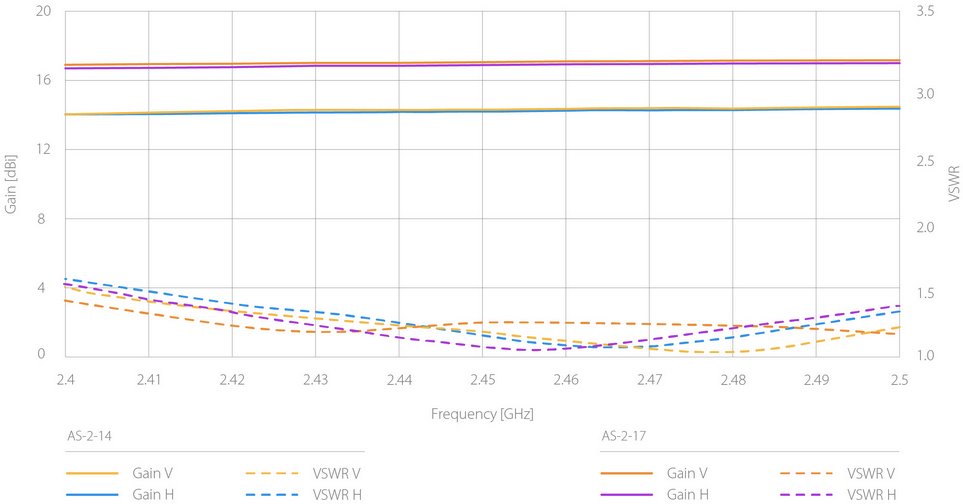

Antenna gain [dBi]
17
Material
Aluminum, UV stabilized ABS plastic, Stainless steel
Operating temperature [°C]
-35 up to 60
Weight [kg]
3,9
Width [mm]
160
Height [mm]
804
Depth [mm]
63
