RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi

RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
Your price incl. VAT (20.0%)
661.52 RON
✅ In Stock 80+ Бр.
Delivery Planned Delivery Date by Courier to you 20-11-2024
RF elements
Manufacturer
Product number
AS-5-20
Product Code
RL009.101
Warranty
24 months

Download

https://download.discomp.cz/RFelements/Datasheets/AS-5-20.pdf
Download Datasheet
https://download.discomp.cz/RFelements/QSG/UserGuide-for-Array-Sector.pdf
Download Installation Guide

Technical parameters

LAN ports
MIMO, SISO
2 x 2
Polarization
VH
VSWR
< 1,4
F/B ratio [dB]
30
Designed for mast diameter [mm]
30 up to 80
Cross-Pol Isolation [dB]
27
Wind load [km/h]
160

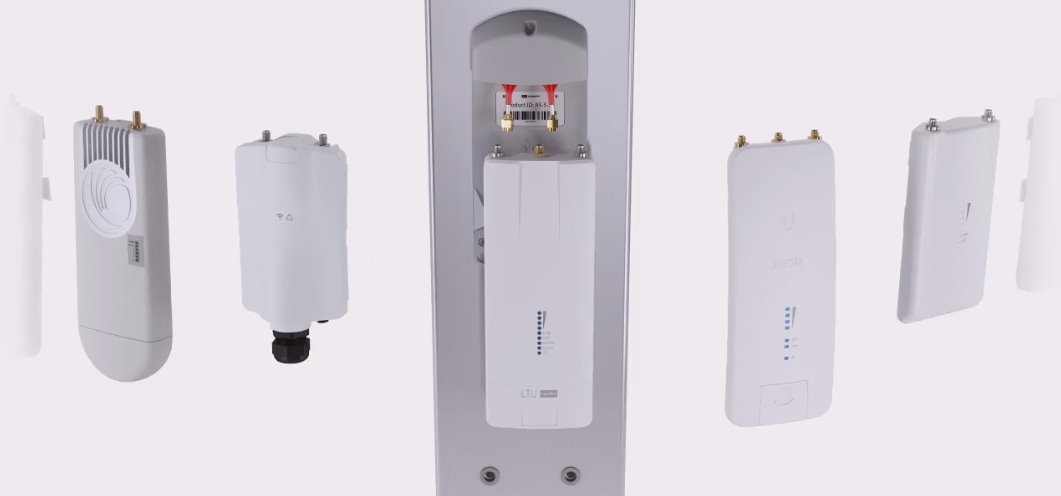

Rocket kit
Yes
Protection class
IP55
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
3,5
Azimuth beam width (-6dB) [°]
100
Antenna type
Sector
RF connectors
(2) RSMA male
Purpose
Outdoor
Antenna gain [dBi]
20
Material
Aluminum, Stainless steel
Weight [kg]
3,5
Width [mm]
160
Height [mm]
804
Depth [mm]
63
