Teltonika TRB145 LTE RS485 Gateway
Your price incl. VAT (20.0%)
570.54 RON
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 10-12-2025
Product description

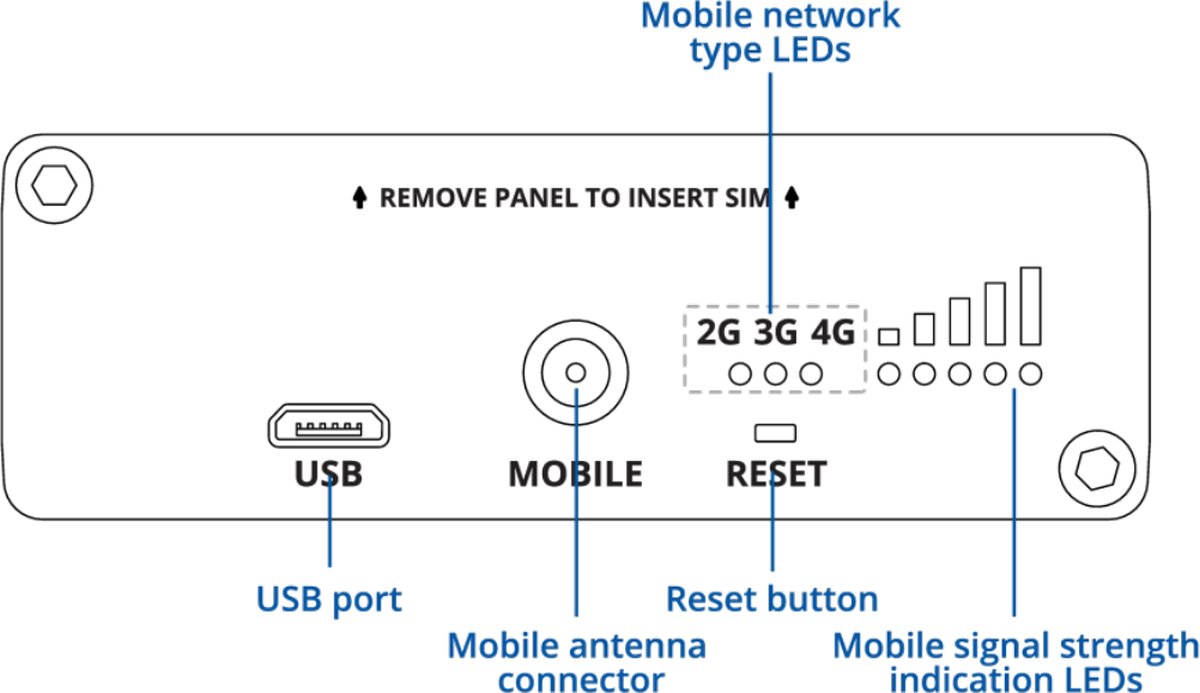

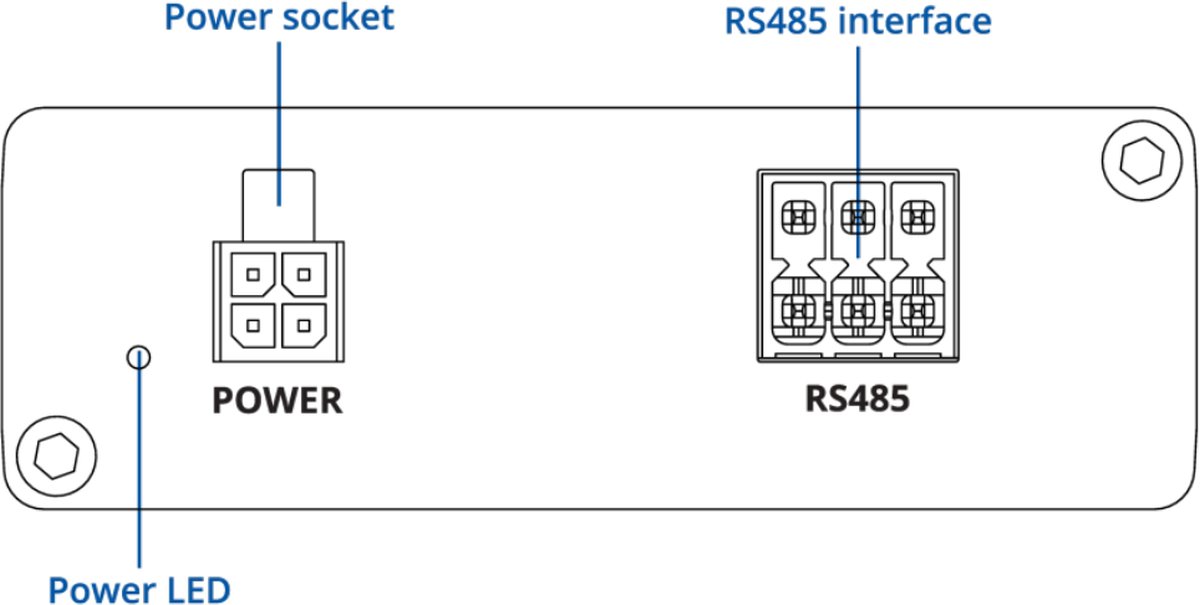

Industrial GSM/GPRS Gateway Board TRB145 is equipped with an RS485 Interface, Digital Inputs/Outputs and a microUSB port.
TRB145 compact design makes this Gateway perfect for an application where a sole gadget must be remotely controlled over RS485 interface.
The gateway is engineered to be used in Industrial applications, therefore, it has a wide range of software features such as SMS control, Firewall, OpenVPN, IPsec, RMS and FOTA support.
Package contents
- Device
- LTE antenna with cable
- Power adapter (EU)
- USB cable
Download
Technical parameters
LAN ports
Protection class
IP30
Design
Desktop
Operating mode
Cellular Modem
Management
SSH, Teltonika RMS, Web management
Wireless frequency
2G (GSM), 3G (GSM), 4G (GSM), LTE
Type of antenna
Detachable
Detachable antennas
1
RF connectors
(1) SMA female
Integrated 4G/LTE radio part
Yes
Power type
4-pin automotive
4G/LTE bands support
(1) 2100 MHz, (20) 800 MHz, (28) 700 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz
Operating system
RutOS (OpenWrt based Linux OS)
Max. power consumption [W]
5
Serial port
RS-485
Power via connector/terminal
9 .. 30V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 75
Weight [g]
130
Height [mm]
25
Depth [mm]
64
Width [mm]
75
CPU
ARM Cortex A7
CPU frequency [MHz]
1200
SIM slot
Yes
SIM slots quantity
1
USB
Yes
IPv6 support
Yes
Internal storage [MB]
512
Default IP address
192.168.2.1
RAM [MB]
128
Default login and password
admin / (preset password, see label/engraving)
