Mimosa A5x, PTMP access point, 2x RSMA female

Mimosa A5x, PTMP access point, 2x RSMA female
Your price incl. VAT (20.0%)
1,396.24 RON
✅ In Stock 20+ Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
Mimosa
Manufacturer
Product number
100-00107(A5x)
Product Code
RL007.290
Warranty
24 months

Product description

Compact and powerful, the A5x is built for short to long-range pole and tower point-to-multipoint (PTMP) applications. In situations where the power and range of the 4x4 A5c access point isn't needed, the connectorized, 2x2 A5x is the perfect solution.

It's Fast

Breaking the barriers to entry, the A5x is a connectorized, 2x2 access point that delivers fiber-like speeds of up to 700 Mbps (IP).

Mimosa A5x

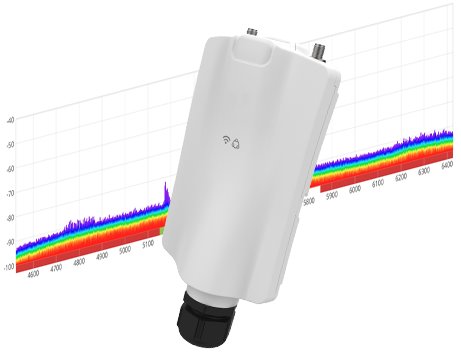

Get Around the Noise

With new spectrum becoming available in both 4.9 and 6 GHz, the wide frequency of the A5x (4.9–6.4 GHz) will allow affordable access to more low-noise spectrum for increased speeds and reliability—especially paired with SRS (GPS sync) for channel reuse.

Mimosa A5x

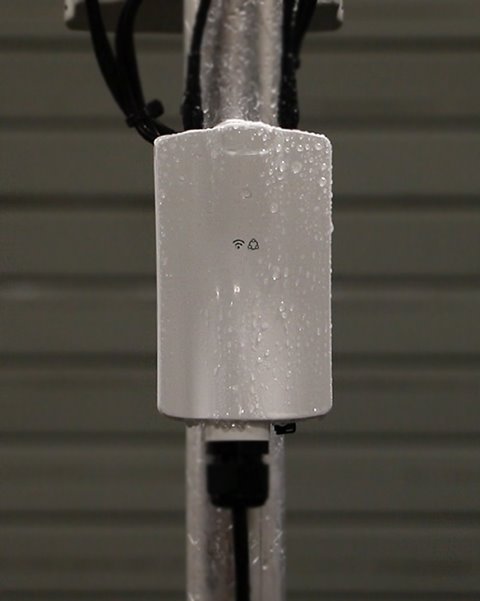

Ultra-Rugged

The A5x, with its die-cast aluminum metal backing, is designed and built to withstand the harshest outdoor elements.

Mimosa A5x

Package contains

  • Device
  • Quick Guide

Download

https://download.discomp.cz/Mimosa/Datasheet/A5x.pdf
Download Datasheet

Technical parameters

LAN ports
Power over Ethernet
24 .. 56V DC
Operating mode
Access Point
Wireless frequency
5 GHz
WiFi standards
Mimosa SRS, WiFi Interop
Transmission speed - 5GHz [Mb/s]
866
Tx power 5GHz [dBm]
27
5GHz MIMO
2 x 2
Type of antenna
Detachable
Detachable antennas
2
RF connectors
(2) RSMA female
Purpose
Outdoor
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
13
Operating temperature [°C]
-40 up to 55
Weight [g]
300
Width [mm]
75
Height [mm]
188
Depth [mm]
44
IPv6 support
Yes
GPS modul
Yes
