MikroTik RouterBOARD RBwAPR-2nD, wAP R, ROS L4

MikroTik RouterBOARD RBwAPR-2nD, wAP R, ROS L4
Your price incl. VAT (20.0%)
400.93 RON
✅ In Stock 60+ Бр.
Delivery Planned Delivery Date by Courier to you 01-01-2025
MikroTik
Manufacturer
Product number
RBwAPR-2nD
Product Code
RL006.889
Warranty
24 months

Product description

The wAP R is a small weatherproof wireless access point with miniPCI-e slot reserved for LTE card. Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The wAP R also has one 10/100 Ethernet LAN port for your wired devices.

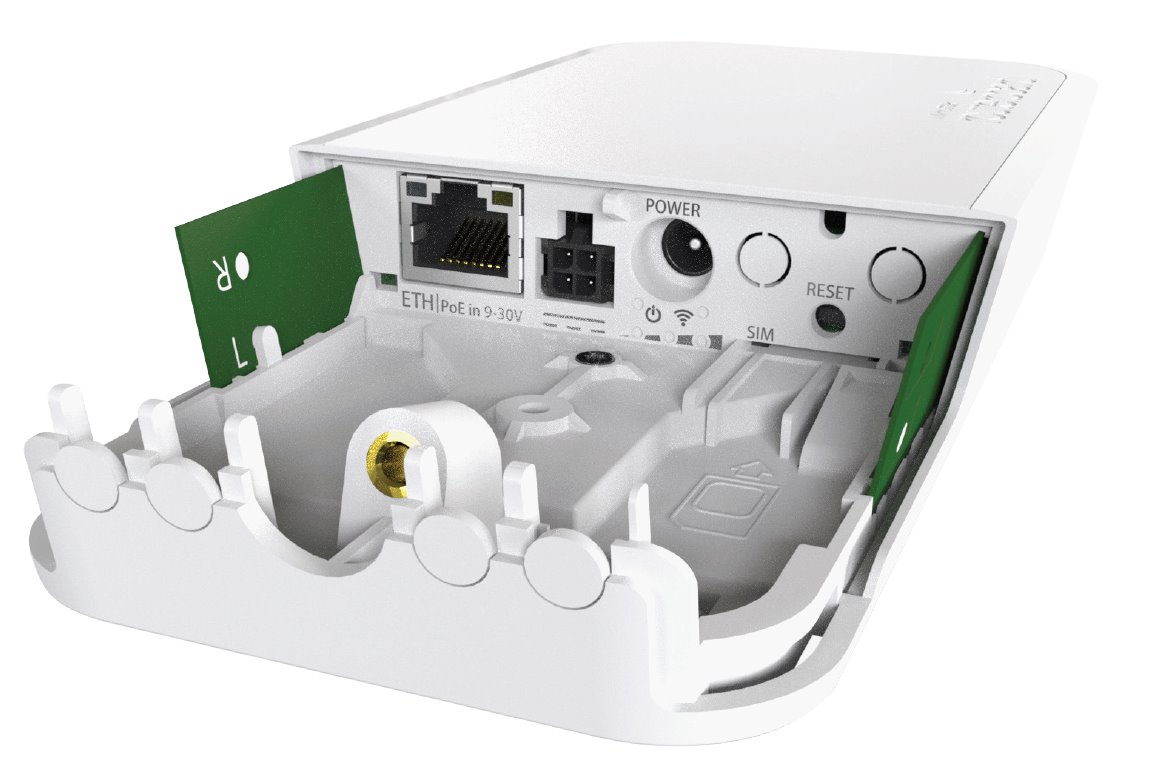

RBwAPR-2nD interfaces

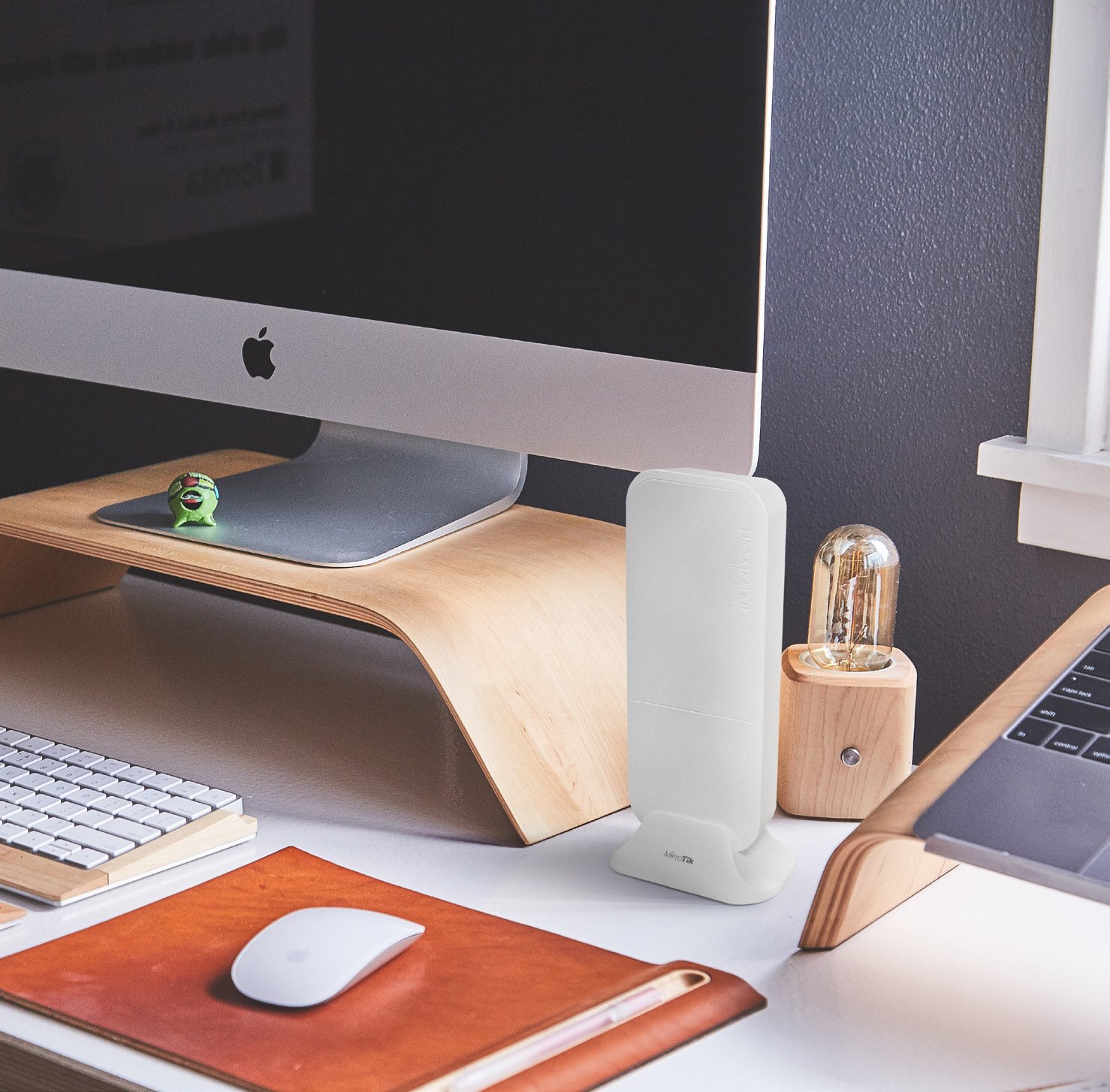

The waterproof device can be mounted outside your house, in the vehicle, on your porch or anywhere else where you need wireless access from your phone or computer. It also includes a desktop stand so you can put it inside the building near a window.

RBwAPR-2nD installation

Device has prepaired 2x u.FL connectors for LTE card. Unit has the several powering options - 9-30v PoE-in by Ethernet port, DC jack and Automotive connector, very handy in mobile devices like car, bus or train.

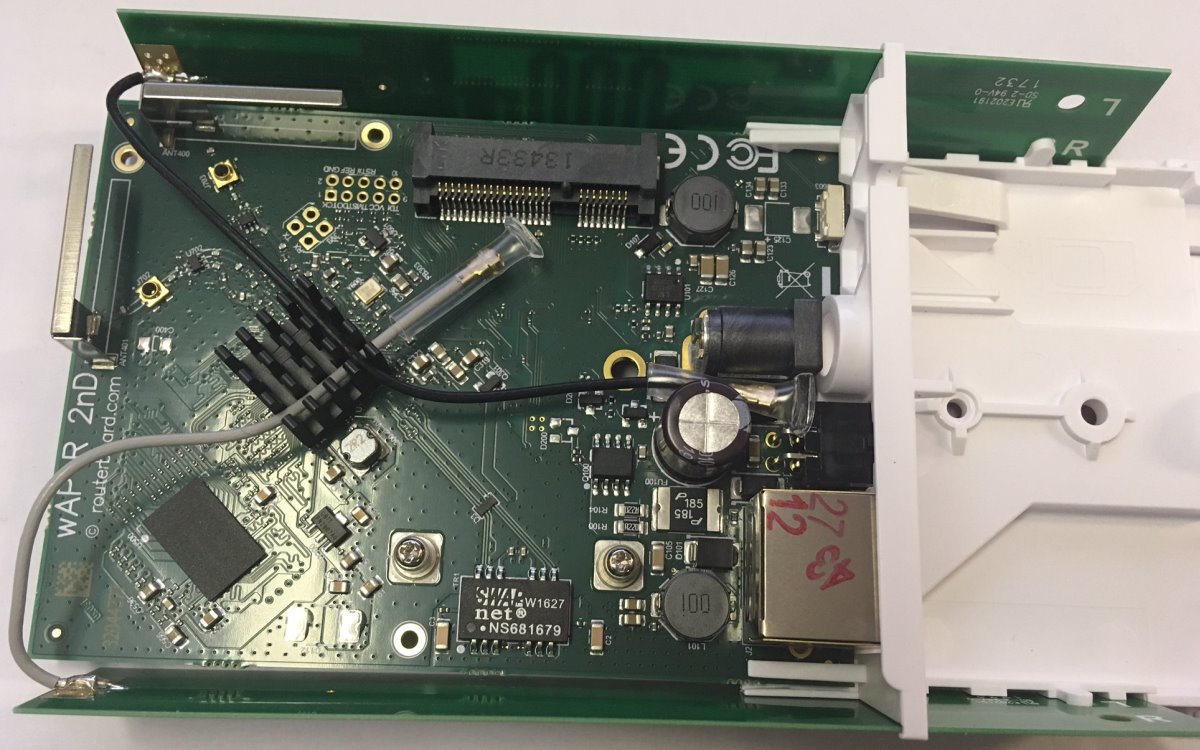

RBwAPr-2nD is shipped without LTE card installed (empty miniPCIe slot), so you can use your own LTE card.

RBwAPR-2nD

Package contains

  • Device (without LTE card installed)
  • Power adapter 24V / 0.8A
  • PoE injector
  • Screw kit
  • Mount base
  • (2) plastic straps
  • Desktop stand
  • Special 4pin power cable

Download

http://www.mikrotik.com/download
Download Firmware (RouterOS / SwOS)
https://download.discomp.cz/MikroTik/CE/ID115_RBwAPR-2nD_DOC_211001.pdf
Download CE
https://download.discomp.cz/MikroTik/Datasheets/wAP_lte_kit.pdf
Download Datasheet

Technical parameters

LAN ports
Power over Ethernet
9 .. 30V DC
Tx power [dBm]
22
Design
Outdoor, Desktop
Wireless frequency
2.4 GHz
WiFi standards
802.11b/g, 802.11n
Transmission speed - 2.4GHz [Mb/s]
300
2.4GHz MIMO
2 x 2
Type of antenna
Built-in
Antenna gain [dBi]
2
Power type
DC connector, DC terminal, PoE
Operating system
RouterOS - L4
LAN ports
1
LAN speed
(1) 10/100Mbps
PoE type
PoE-In (only)
Max. power consumption [W]
8
Power via connector/terminal
9 .. 30V DC
Operating temperature [°C]
-40 up to 60
Width [mm]
85
Height [mm]
185
Depth [mm]
30
CPU
QCA9531
CPU frequency [MHz]
650
CPU cores
1
MiniPCI-e slots
1
SIM slot
Yes
SIM slots quantity
1
Default IP address
192.168.88.1
Internal storage [MB]
16
RAM [MB]
64
Default login and password
admin / -
