MikroTik RBLDF-5nD, LDF 5, 9dBi 5GHz antenna, 1x LAN, L3
Your price incl. VAT (20.0%)
210.07 RON
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 04-12-2024
39.39 RON excl. VAT
Product description

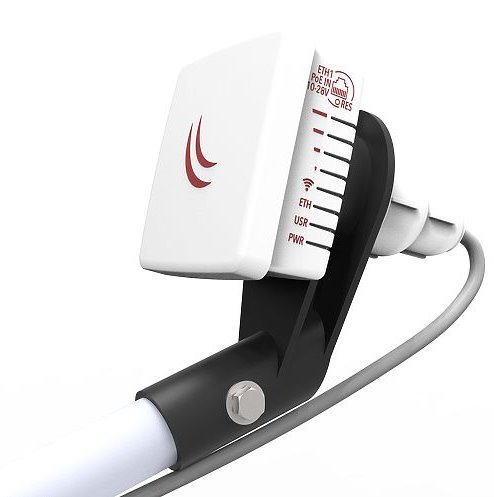

LDF 5 or "Lite dish feed" is a very specific outdoor CPE device with two built-in antennas with 9dBi gain. LDF 5 was designed for mounting on satellite dish antenna instead of the original feed LNB with 40 mm mounting. Antenna gain maybe increased up to 33dBi when will be used with 100cm satellite dish.
LDF 5 unit includes 2x2 MIMO 5GHz radio part with transmission power up to 25dBm, compatibility with protocols 802.11a/n, maximum 300Mbps data rate, 1x 10/100Mbps LAN, 64MB RAM, 16MB flash, 600MHz processor and L3 license.
Package contains
- Device
- PoE injector
- Power adapter 24V / 0.38A
Download
Technical parameters
LAN ports
Power over Ethernet
10 .. 30V DC
Tx power [dBm]
25
Design
Outdoor
Wireless frequency
5 GHz
WiFi standards
802.11a, 802.11n
Transmission speed - 5GHz [Mb/s]
300
5GHz MIMO
2 x 2
Type of antenna
Built-in
Antenna gain [dBi]
9
Power type
PoE
Operating system
RouterOS - L3
LAN ports
1
LAN speed
(1) 10/100Mbps
PoE type
PoE-In (only)
Max. power consumption [W]
6
Operating temperature [°C]
-40 up to 70
Width [mm]
84
Height [mm]
84
Depth [mm]
115
CPU
AR9344
CPU frequency [MHz]
600
CPU cores
1
Default IP address
192.168.88.1
Internal storage [MB]
16
RAM [MB]
64
Default login and password
admin / -
