Ubiquiti UWB-XG - Ubiquiti UniFi BaseStation XG, 802.11ac Wave2

Ubiquiti UWB-XG - Ubiquiti UniFi BaseStation XG, 802.11ac Wave2
Your price incl. VAT (20.0%)
7,168.72 RON
❌ The item is not available. There is no option to order.
Delivery No confirmed delivery date
Ubiquiti Networks
Manufacturer
Product number
UWB-XG
Product Code
RL004.893
Warranty
24 months

Product description

For ultra high density environments, such as an outdoor music festival, where there are numerous clients in a relatively small space, we recommend the UniFi WiFi BaseStation XG.

802.11ac Wave 2 MU.MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 AP, such as the UniFi WiFi BaseStation XG, to communicate with multiple clients at the same time . significantly increasing multi.user throughput and overall user experience.

4x4 Spatial Streams At any single time, a Wave 2 radio can communicate with the following MU-MIMO clients:

  • four 1x1 clients
  • two 2x2 clients
  • one 2x2 client and two 1x1 clients
  • one 3x3 client and one 1x1 client

Client Compatibility For optimal performance, use MU.MIMO clients. SU.MIMO clients will also benefit and gain up to 10.20% greater performance when used with the UniFi WiFi BaseStation XG

Dedicated Spectral Security Radio

Using a persistent spectral scan, the UniFi WiFi BaseStation XG constantly monitors the RF environment to check for both potential malicious activity and the best channel for network performance.

Threat Management

The UniFi WiFi BaseStation XG's dedicated security radio provides persistent threat management to act as a Wireless Intrusion Prevention System (WIPS) and Wireless Intrusion Detection System (WIDS). Such a dedicated radio affords frequency agility – meaning all available Wi-Fi channels are monitored constantly for threats – not just the channels the AP is using.

Mounting Versatility

The UniFi WiFi BaseStation XG can be easily mounted on a pole or wall with the included brackets.

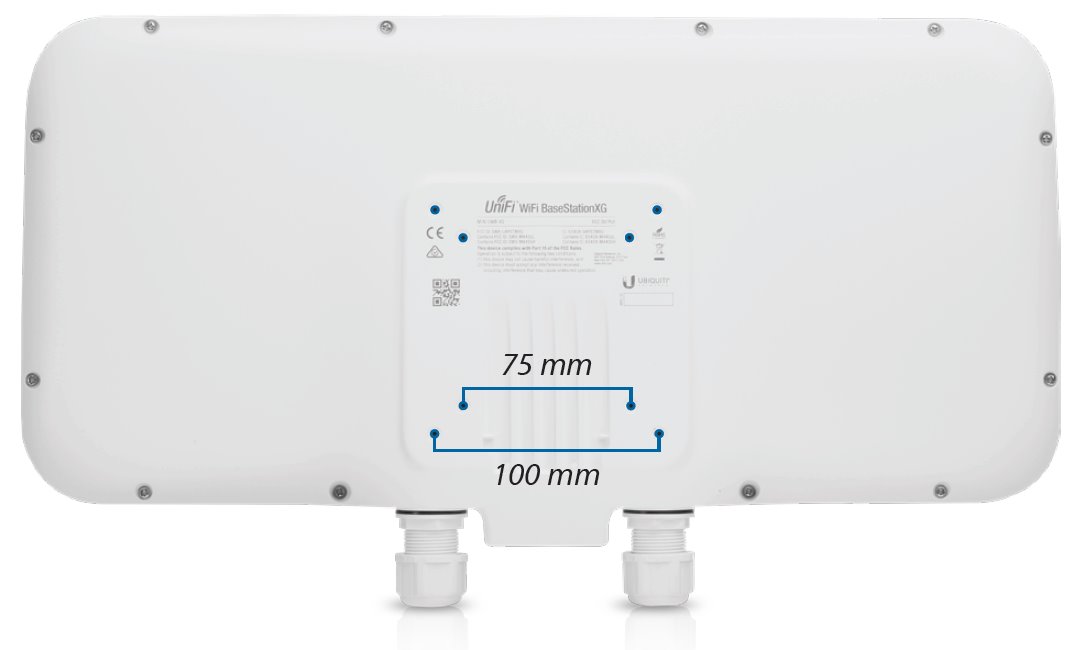

VESA Mounting

Its VESA mount compatibility allows easy integration with the VESA MIS-D standard and can be used with mounts that comply with this standard.

Vesa mount

Weather-Resistant Form Factor

The IP67-certified enclosure of the UniFi WiFi BaseStation XG is designed to withstand the elements, making it ideal for outdoor deployment

Unit central management

UniFi APs doesn't have own web GUI and you manage them via UniFi Controller, which you can download on UBNT websites here: http://www.ubnt.com. Or you can manage UAP devices using UniFi Cloud Key which has UniFi Controller preinstalled. Additional benefit is fact that UniFi Controller software is free of costs and includes advanced functions without limitations.

UWB-XG

General advantages of UniFi products

  • Zero Handoff Roaming
  • Wireless uplink
  • Up to 8 SSID
  • Detailed traffic stats
  • Guest network
  • Load balance
  • Speed limitaions for each SSID

Package contains

  • Device
  • PoE Power adapter 50V/1.2A
  • Power cord
  • Holder
  • Screws

Download

https://dl.ubnt.com/qsg/uwb-xg.pdf
Download Quick Guide
https://www.ubnt.com/downloads/datasheets/unifi/UniFi_WiFi_BaseStation_XG_DS.pdf
Download Datasheet

Technical parameters

LAN ports
Power over Ethernet
50V DC, 802.3bt
Operating mode
Access Point
Wireless frequency
5 GHz
WiFi standards
802.11a, 802.11ac, 802.11ac - wave2, 802.11n
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
1733 + 1733 + 1733
Tx power 5GHz [dBm]
25
Security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.1w/PMF
Azimuth beam width (-6dB) [°]
90
5GHz MIMO
4 x 4
Type of antenna
Built-in
Internal antennas
1
Purpose
Outdoor
Roaming
Yes
Antenna gain [dBi]
10, 15
Power type
PoE
LAN ports
2
LAN speed
(1) 10/100/1000Mbps + (1) 1/10Gbps ICM
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
31
Buttons
Reset
Operating temperature [°C]
-10 up to 70
Weight [g]
3200
Width [mm]
471
Height [mm]
257
Depth [mm]
94
Default IP address
192.168.1.20
Default login and password
ubnt / ubnt
