Ubiquiti N-SW, NanoSwitch
Your price incl. VAT (20.0%)
190.67 RON
✅ In Stock 90+ Бр.
Planned Delivery Date by Courier to you 05-03-2025
Product description
N-SW is very simple non managable PoE switch with 4x Gigabit LAN with passive PoE powering.

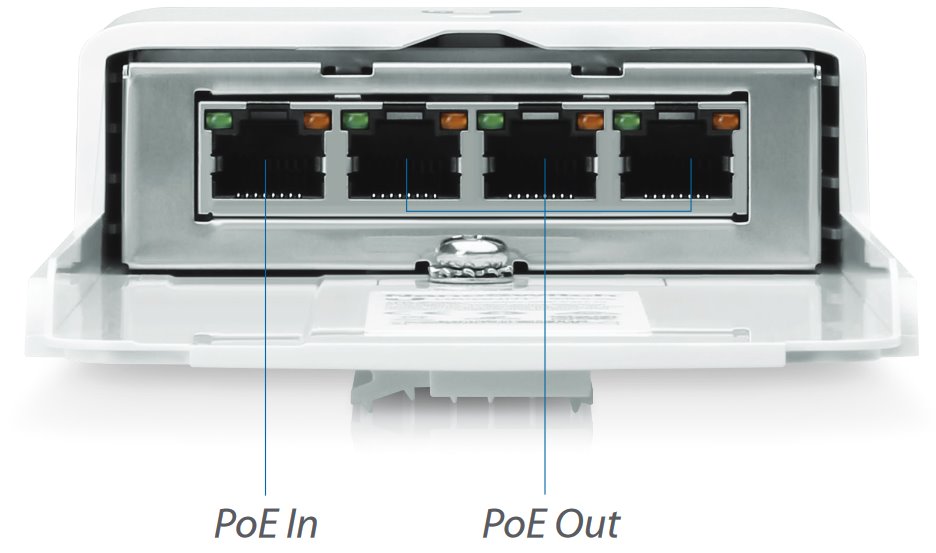

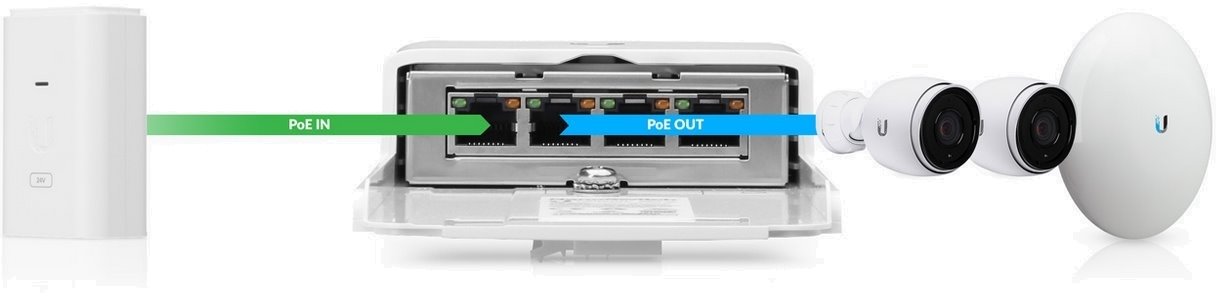

PoE Passthrough
PoE In — RJ45 port supports 10/100/1000 Ethernet connections, and supports passive 24V, 2-pair PoE to power the switch.
PoE Out — RJ45 ports support 10/100/1000 Ethernet connections, and the three passive 24V, 2-pair PoE ports provide up to 24W PoE output.

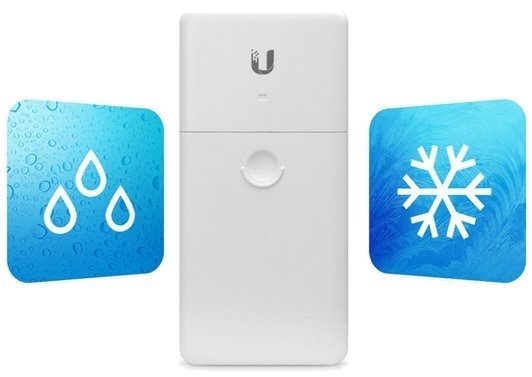

Designed for Outdoor Durability
The NanoSwitch features an outdoor weatherproof form factor. Operating Temperature: -30 to 70° C (-22 to 158° F).
Package contains
- Device
- Screw
- (2) Metal ring
Download
Technical parameters
LAN ports
Power over Ethernet
21 .. 26V DC
Design
Outdoor
Switchning capacity [Gbps]
4
Power type
PoE
Fans
No
LAN ports
4
LAN speed
(4) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out + PoE-In
PoE-Out standards
Passive 24V
PoE Out ports
3
PoE budget [W]
24
Max. power consumption [W]
1,5
Chassis design
Plastic
Operating temperature [°C]
-30 up to 70
Width [mm]
94
Height [mm]
196
Depth [mm]
32
