Ubiquiti PrismAP-5-45, (Horn-5-45) Symetrical sector 5GHz antenna, 16dBi, 45°

Ubiquiti PrismAP-5-45, (Horn-5-45) Symetrical sector 5GHz antenna, 16dBi, 45°
Your price incl. VAT (20.0%)
377.98 RON
✅ In Stock 10+ Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
Ubiquiti Networks
Manufacturer
Ubiquiti Networks
Product number
Horn-5-45
Product Code
RL004.372
Warranty
24 months

Having a question?
You have a choice of 4 variants
Ubiquiti PrismAP-5-30, (Horn-5-30) Symmetrical sector 5GHz antenna, 19dBi, 30°
Horn-5-30
314.98 RON excl. VAT
Ubiquiti PrismAP-5-60, (Horn-5-60) Asymetrical sector 5GHz antenna, 16dBi, 60°
Horn-5-60
314.98 RON excl. VAT
Ubiquiti PrismAP-5-90, (Horn-5-90) Asymetrical sector 5GHz antenna, 13dBi, 90°
Horn-5-90
314.98 RON excl. VAT
Ubiquiti PrismAP-5-45, (Horn-5-45) Symetrical sector 5GHz antenna, 16dBi, 45°
Horn-5-45
314.98 RON excl. VAT
Ubiquiti PS-5AC - airMax AC PrismStation, 5GHz Radio-only, shielded and features airPrism Active RF Filter
Ubiquiti PS-5AC - airMax AC PrismStation, 5GHz Radio-only, shielded and features airPrism Active RF FilterPS-5AC
1205.63 RON excl. VAT
Add to Cart

Product description

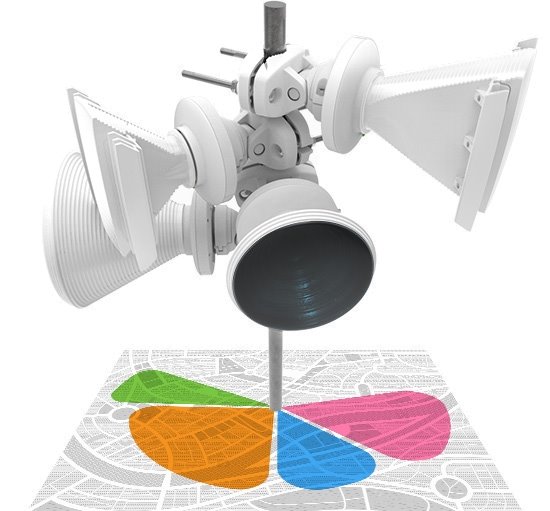

The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or IsoStation radio, the system gets maximum gain out of the smallest footprint.

Horn-5-45

Symmetrical horn antenna

45°version offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.

Download

https://dl.ubnt.com/datasheets/PrismAP/PrismAP_DS.pdf
Download Datasheet
https://dl.ubnt.com/guides/PrismAP/PrismAP-5-45_QSG.pdf
Download Quick Guide

Technical parameters

LAN ports
MIMO, SISO
2 x 2
Polarization
VH, VH (slant)
VSWR
< 1,7
Cross-Pol Isolation [dB]
17
Wind load [km/h]
200
Compatibility
IsoStation, PrismStation
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
45
Azimuth beam width (-6dB) [°]
45
Antenna type
Sector
RF connectors
IsoStation port
Purpose
Outdoor
Antenna gain [dBi]
16
Weight [kg]
1,3
Width [mm]
175
Height [mm]
175
Depth [mm]
184
