Ubiquiti PrismAP-5-60, (Horn-5-60) Asymetrical sector 5GHz antenna, 16dBi, 60°

Ubiquiti PrismAP-5-60, (Horn-5-60) Asymetrical sector 5GHz antenna, 16dBi, 60°
Your price incl. VAT (20.0%)
377.98 RON
✅ In Stock 20+ Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
Ubiquiti Networks
Manufacturer
Ubiquiti Networks
Product number
Horn-5-60
Product Code
RL015.636
Warranty
24 months

Having a question?
You have a choice of 4 variants
Ubiquiti PrismAP-5-30, (Horn-5-30) Symmetrical sector 5GHz antenna, 19dBi, 30°
Horn-5-30
314.98 RON excl. VAT
Ubiquiti PrismAP-5-45, (Horn-5-45) Symetrical sector 5GHz antenna, 16dBi, 45°
Horn-5-45
314.98 RON excl. VAT
Ubiquiti PrismAP-5-90, (Horn-5-90) Asymetrical sector 5GHz antenna, 13dBi, 90°
Horn-5-90
314.98 RON excl. VAT
Ubiquiti PrismAP-5-60, (Horn-5-60) Asymetrical sector 5GHz antenna, 16dBi, 60°
Horn-5-60
314.98 RON excl. VAT
Ubiquiti PS-5AC - airMax AC PrismStation, 5GHz Radio-only, shielded and features airPrism Active RF Filter
Ubiquiti PS-5AC - airMax AC PrismStation, 5GHz Radio-only, shielded and features airPrism Active RF FilterPS-5AC
1205.63 RON excl. VAT
Add to Cart

Product description

The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or IsoStation radio, the system gets maximum gain out of the smallest footprint.

Horn-5-60

Asymmetrical horn antennas

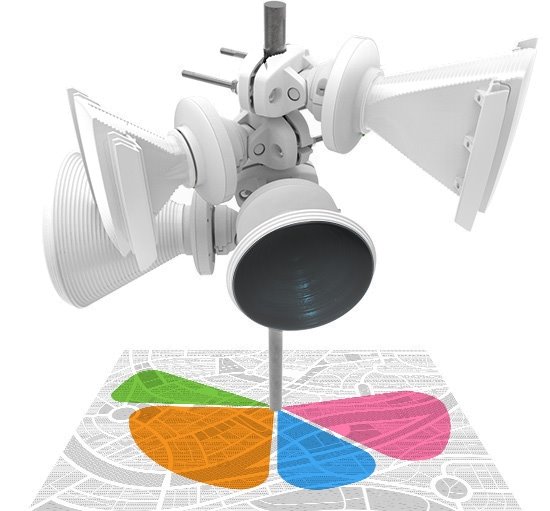

60° version has naturally attenuated side lobes and extremely low back radiation. Antenna offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

Download

https://dl.ubnt.com/datasheets/PrismAP/PrismAP_DS.pdf
Download Datasheet
https://dl.ubnt.com/guides/PrismAP/PrismAP-5-60_QSG.pdf
Download Quick Guide

Technical parameters

LAN ports
MIMO, SISO
2 x 2
Polarization
VH, VH (slant)
VSWR
< 2,0
Cross-Pol Isolation [dB]
17
Wind load [km/h]
200
Compatibility
IsoStation, PrismStation
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
60
Azimuth beam width (-6dB) [°]
30
Antenna type
Sector
RF connectors
IsoStation port
Purpose
Outdoor
Antenna gain [dBi]
16
Weight [kg]
0,7
Width [mm]
161
Height [mm]
173
Depth [mm]
171
