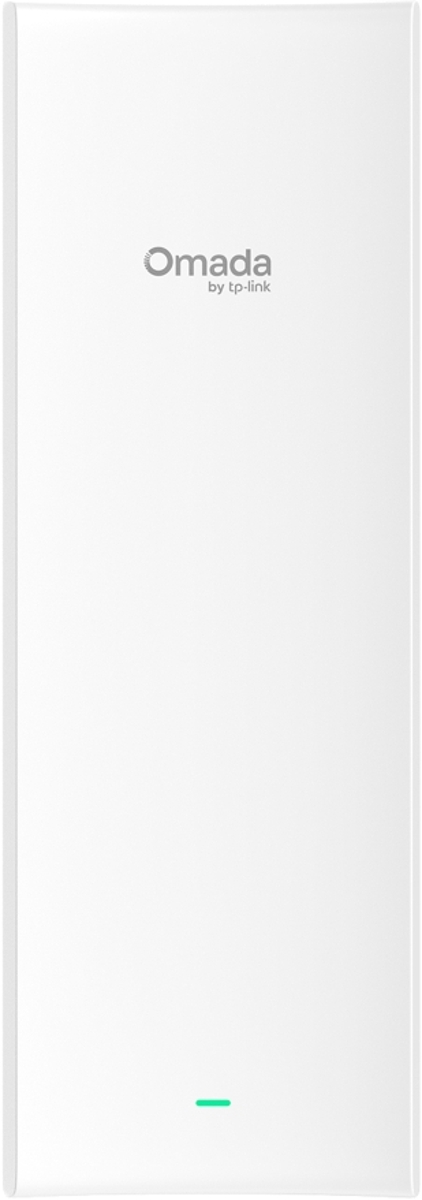

TP-Link Sector Bridge 5, 5GHz PtMP bridge
Your price incl. VAT (20.0%)
911.95 RON
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 14-10-2026
42.89 RON excl. VAT
Product description

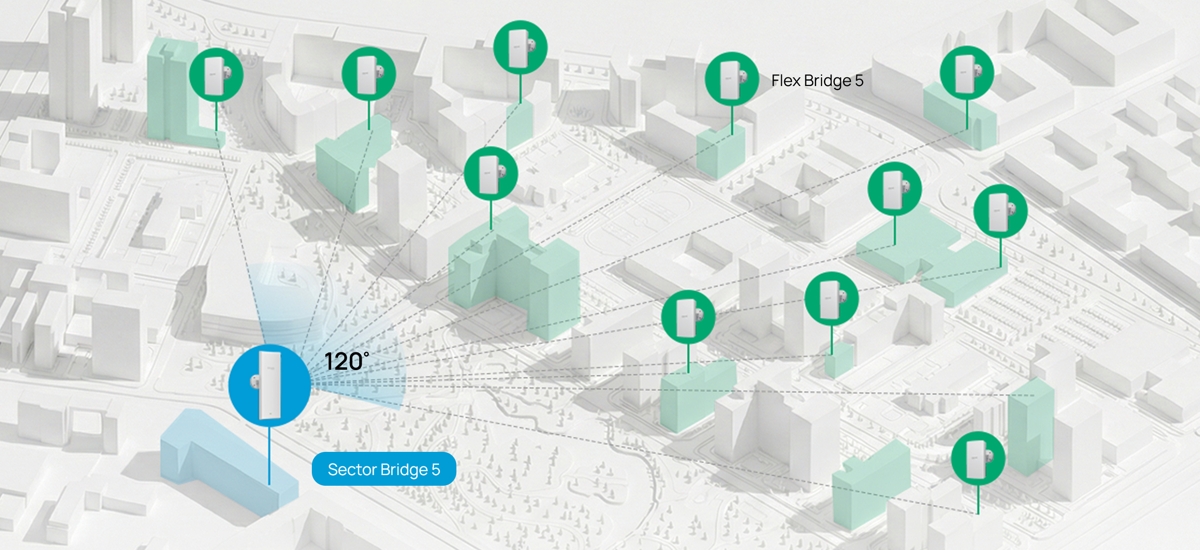

The TP-Link Sector Bridge 5 is a 5GHz central AP for a PtMP network, supporting up to (32) Flex Bridge 5 client units and providing throughput of up to 867Mbps over distances of up to 5km. It is equipped with (1) 1Gbps PoE-In port, integrated high-gain 16dBi directional antennas with a horizontal beamwidth of 120° and supports easy app-guided alignment.
The easy way to centralized management
The Omada Software Defined Networking (SDN) platform integrates network devices, including Access Points, Switches, Gateway Routers, and provides 100% centralized cloud management. Omada creates a highly scalable network, including control from a single interface. It provides seamless wireless and wired connectivity, ideal for use in hospitality, education, retail, offices and more.
Package contents
- Device
- Mount
- Passive PoE injector 24V
- Mounting accessories
Download
Technical parameters
LAN ports
Power over Ethernet
802.3af, 24V DC
Protection class
IP66
Maximum modulation
256 QAM
Operating mode
Bridge
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11n, 802.11a, 802.11ac, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]
150
Transmission speed - 5GHz [Mb/s]
866
Tx power 5GHz [dBm]
30
Security
WPA-PSK/WPA2-PSK
Elevation beam width (-6dB) [°]
13
Azimuth beam width (-6dB) [°]
120
5GHz MIMO
2 x 2
2.4GHz MIMO
1 x 1 SISO
Type of antenna
Built-in
Internal antennas
3
Purpose
Outdoor
Antenna gain [dBi]
16
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
RJ45 ports 1G
1
Max. power consumption [W]
10.5
Power via connector/terminal
12V / 1A
Buttons
Reset
Operating temperature [°C]
-40 up to 70
Weight [g]
690
Width [mm]
125
Depth [mm]
34
Height [mm]
359
IPv6 support
Transparent (bridge mode)
