Grandstream GWN7302, 5GHz PtP+PtMP bridge

Product description

The Grandstream GWN7302 is an outdoor 5GHz Wi-Fi 6 PtP/PtMP wireless bridge with throughput of up to 2.4Gbps over distances of up to 5km, (2) 1G ports (1x PoE-In, 1x PoE-Out), 2x2:2 MIMO with TDMA technology and integrated high-gain 13.5dBi antennas with 30° beamwidth. In PtMP it can support up to 4 clients. It supports management via a local web interface, GDMS cloud management and GWN Manager.

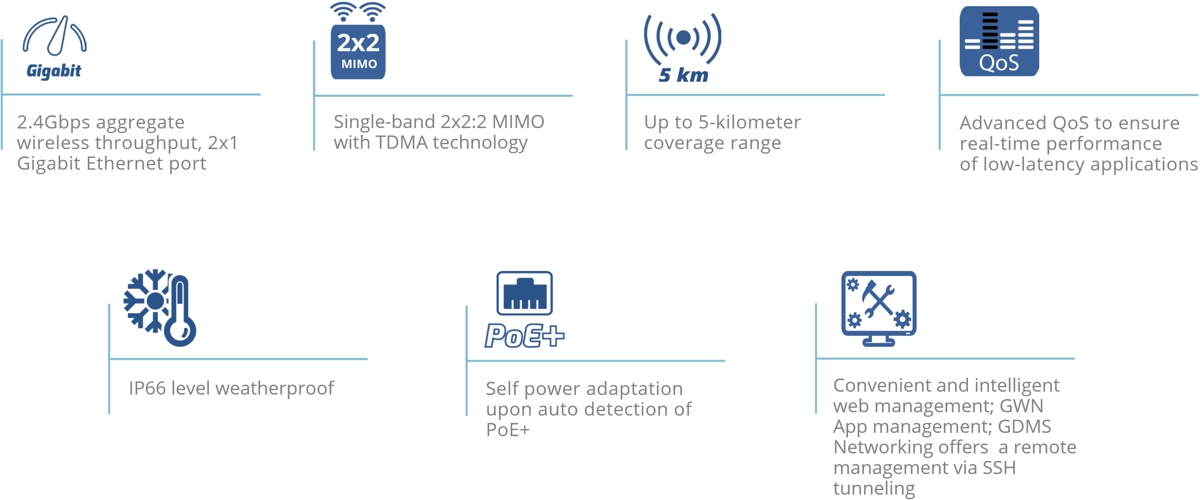

Key features

• 5GHz bridge for PtP/PtMP links over distances of up to 5km with throughput up to 2.4Gbps
• PoE-Out budget up to 25W when powered via 24V/2A, up to 13W when powered via PoE+
• Supports up to 4 client units in PtMP mode
• IP66 rated enclosure resistant to harsh weather conditions
• Powered via 802.3af/at PoE or 24V DC terminal block

Package contents

• Device
• Wall/pole mount
• Mounting accessories
