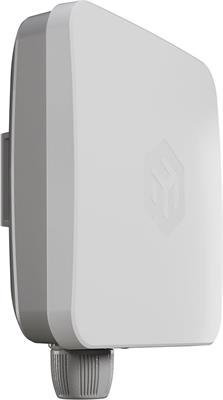

MikroTik EG25-G&SXTsq, SXTsq Embedded LTE4, Global

MikroTik EG25-G&SXTsq, SXTsq Embedded LTE4, Global
Your price incl. VAT (20.0%)
422.52 RON
Ordered for stock
Delivery Planned Delivery Date by Courier to you 20-05-2026
MikroTik
Manufacturer
Product number
EG25-G&SXTsq
Product Code
RL030.629
Warranty
24 months

Product description

The MikroTik SXTsq Embedded LTE4 Global is a device designed for connection to a mobile 2G/3G/4G network with (1) 1Gbit PoE-In port, IP67 protection, (1) nano SIM slot and eSIM support. Install it outdoors on a pole or at any sufficiently high location and connect where cell phones fail.

Thanks to its integrated directional antenna, the device can connect to transmitters even in extremely remote rural areas, making it possible to provide internet access in places where nothing else is available. The modem supports 4G LTE (Cat. 4), 3G and 2G networks, with speeds of up to 150Mbps downlink and 50Mbps uplink, and it utilizes 2x2 MIMO on the downlink.

This model is the global version with expanded LTE band support for North America and other markets outside the EMEA region.


MikroTik SXTsq Embedded LTE4 Banner

Package contents

  • Device
  • Power adapter 24V/0.38A
  • Gigabit PoE injector
  • Hose clamp

Download

http://www.mikrotik.com/download
Download Firmware (RouterOS / SwOS)
https://download.discomp.cz/MikroTik/Datasheets/SXTsq%20Embedded%20LTE4%20Global.pdf
Download Datasheet

Technical parameters

LAN ports
Power over Ethernet
12 .. 28V DC
Operating mode
Cellular router
Wireless frequency
LTE, 3G (GSM), 2G (GSM)
Type of antenna
Built-in
Antenna gain [dBi]
9
Integrated 4G/LTE radio part
Yes
Power type
PoE
4G/LTE bands support
(1) 2100 MHz, (12) 700 MHz, (13) 700 MHz, (18) 850 MHz, (19) 850 MHz, (2) 1900 MHz, (20) 800 MHz, (25) 1900 MHz, (26) 850 MHz, (28) 700 MHz, (3) 1800 MHz, (38) 2600 MHz, (39) 1900 MHz, (4) 1700 MHz, (40) 2300 MHz, (41) 2500 MHz, (5) 850 MHz, (7) 2600 MHz, (8) 900 MHz
Operating system
RouterOS v7 - L3
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
RJ45 ports 1G
1
Max. power consumption [W]
5
Operating temperature [°C]
-40 up to 70
Width [mm]
129
Height [mm]
129
Depth [mm]
34
CPU
ARM Cortex A7
SIM slot
Yes
SIM slots quantity
1
IPv6 support
Yes
Internal storage [MB]
512
RAM [MB]
256
