MERCUSYS MB118-4G, Outdoor wireless 4G LTE router
Your price incl. VAT (20.0%)
278.94 RON
Ordered for stock
No confirmed delivery date
Product description

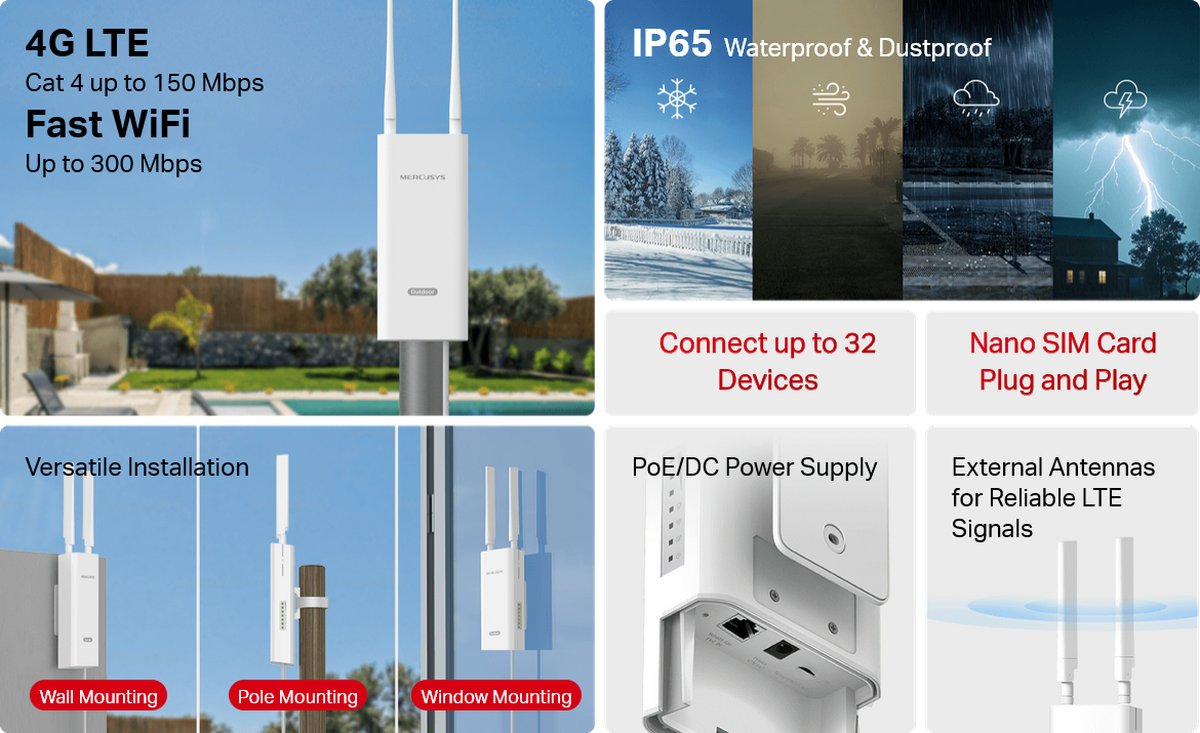

Working as a 4G router, the MB118-4G uses 4G LTE technology to achieve super-fast speeds up to 150 Mbps download and 50 Mbps upload. It can also share a Wi-Fi network with a maximum speed of 300 Mbps on 2.4 GHz for gaming, streaming, and more.
Key features
- 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps.
- Plug a SIM card and play – No configurations needed - SIM card must be unlocked.
- 300 Mbps WiFi – Fast WiFi speeds up to 300 Mbps to share your network.
- Maximum Network Coverage –Enjoy stable and efficient connections to every device thanks to the external antennas. LTE antennas can be replaced with high-power alternatives for enhanced 4G LTE signal strength and coverage.
- PoE/DC Power Supply – Supports 802.3af/802.3at PoE and passive PoE, enabling easy deployment.
- Multiple Mounting Installation - Install easily anywhere with pole, wall, or window mounting for flexible, convenient use.
Package contents
- Device
- (2) Antenna
- 1,2 m RJ45 Ethernet cable
- PoE injector
- DC power adapter
- Quick Installation Guide
- Window/Pole/Wall Mounting kits
Download
Technical parameters
LAN ports
Power over Ethernet
802.3af

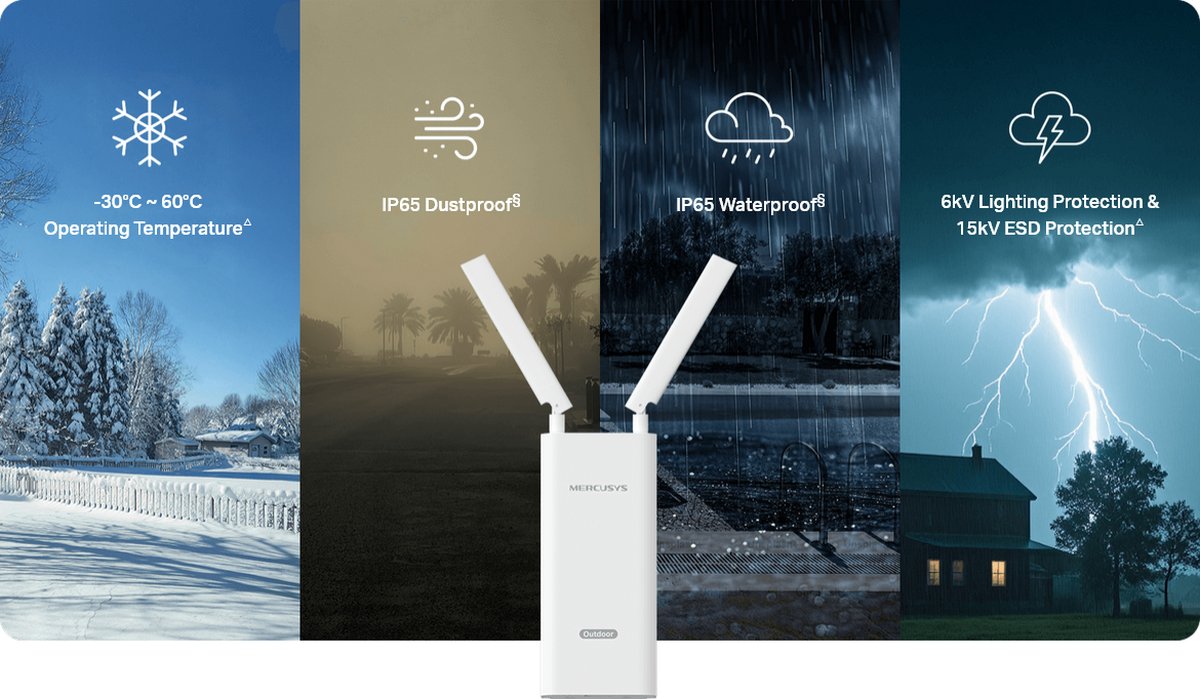

Protection class
IP65
Design
On the mast, On the wall, Outdoor
Operating mode
Cellular router
Management
Mobilní aplikace, Web management
Wireless frequency
2.4 GHz, 4G (GSM), LTE, 3G (GSM)
WiFi standards
802.11n, 802.11b/g
MU-MIMO
Yes
Transmission speed - 2.4GHz [Mb/s]
300
Tx power 2.4GHz [dBm]
20
Security
WPA-PSK/WPA2-PSK
2.4GHz MIMO
2 x 2
Type of antenna
Detachable
Detachable antennas
2
RF connectors
(2) SMA female
Purpose
Outdoor
Integrated 4G/LTE radio part
Yes
4G/LTE bands support
(1) 2100 MHz, (20) 800 MHz, (28) 700 MHz, (3) 1800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (7) 2600 MHz, (8) 900 MHz
LAN ports
1
LAN speed
(1) 10/100Mbps LAN/WAN
PoE type
PoE-In (only)
Power via connector/terminal
12V / 1A
Buttons
Reset
Operating temperature [°C]
-30 up to 60
Width [mm]
97
Height [mm]
231
Depth [mm]
55
SIM slot
Yes
SIM slots quantity
1
IPv6 support
Yes
