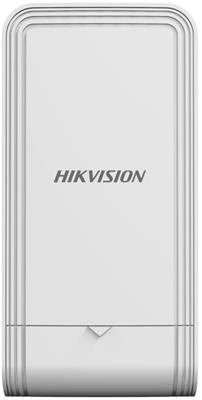

Hikvision DS-3WF02C-5AC/OV3 - Wireless Bridge
Your price incl. VAT (20.0%)
311.89 RON
✅ Availability in an external Partner
Planned Delivery Date by Courier to you 30-07-2025
Download
Technical parameters
LAN ports
Power over Ethernet
12 .. 24V DC
Frequency range [MHz]
5150 - 5850
Operating mode
Client, Access Point
Wireless frequency
5 GHz
WiFi standards
802.11n, 802.11a, 802.11ac
Tx power 5GHz [dBm]
22
Security
WPA-PSK/WPA2-PSK
Elevation beam width (-6dB) [°]
35
Azimuth beam width (-6dB) [°]
35
5GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
2
Purpose
Outdoor
Antenna gain [dBi]
12
LAN ports
2
LAN speed
(2) 10/100/1000Mbps
PoE type
PoE-In (only)
Max. power consumption [W]
4,5
Power via connector/terminal
12V DC
Buttons
Reset
Operating temperature [°C]
-30 up to 70
Weight [g]
306
Width [mm]
91
Height [mm]
188
Depth [mm]
58
Default IP address
192.168.1.35, 192.168.1.36
Default login and password
admin / -
