Ubiquiti AirFiber AF-2X, 500Mbps+ Backhaul, 2.4 GHz (price per piece)

Product description

Ubiquiti’s INVICTUS™ custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications. The airFiber X features industry-leading spectral efficiency of up to 17.1 Mbps/MHz, line-rate data packet processing of up to 525 Mbps of real data throughput, and innovative xtreme Range Technology (xRT™) for up to 200+ km in range.

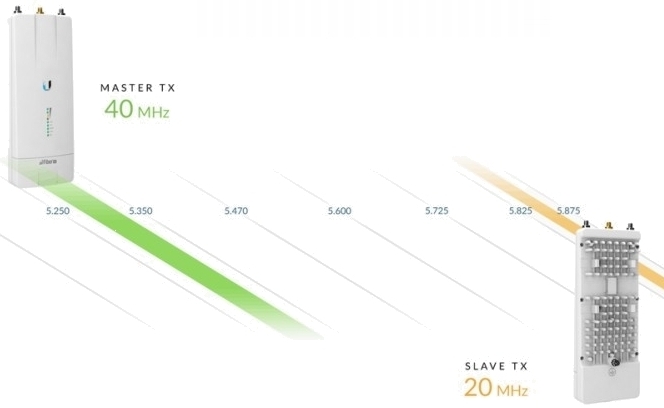

Channel width flexibility allows you to independently configure TX and RX channel frequencies and place them anywhere within the radio band to avoid local interference. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.



Important performance

• GPS antenna for better time synchronization
• Pasive Gigabit PoE 24V/1A // Pins 1, 2, 4, 5 (+) and 7, 8, 3, 6 (-)
• Throughput up to 500 Mbps*
• Long range up to 200 km*
• Very easy setup with intuitive airOS F
• Huge frequency range 2400 - 2500 MHz (Dependent on Regulatory Region)
• Optional bandwidth - 3.5, 5, 7, 10, 14, 20, 28, 30, 40, 50, 56 MHz

*Throughput and range values may vary depending on the environmental conditions.

Package contains

• Device
• PoE power adapter
• Power cord
• GPS antenna
• GPS antenna mount
• Metal strap
• (2) Cable ties
