Grandstream GWN7664ELR High-Performance Outdoor Long-Range 802.11ax Wi-Fi 6 Access Point

Grandstream GWN7664ELR High-Performance Outdoor Long-Range 802.11ax Wi-Fi 6 Access Point
Your price incl. VAT (20.0%)
1,079.68 RON
✅ Availability in an external Partner
Delivery Planned Delivery Date by Courier to you 15-10-2025
Manufacturer
Product number
GWN7664ELR
Product Code
RL029.498
Warranty
36 months

Product description

The GWN7664ELR is an enterprise-grade long-range 802.11ax Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in outdoor spaces.

Grandstream GWN7664ELR

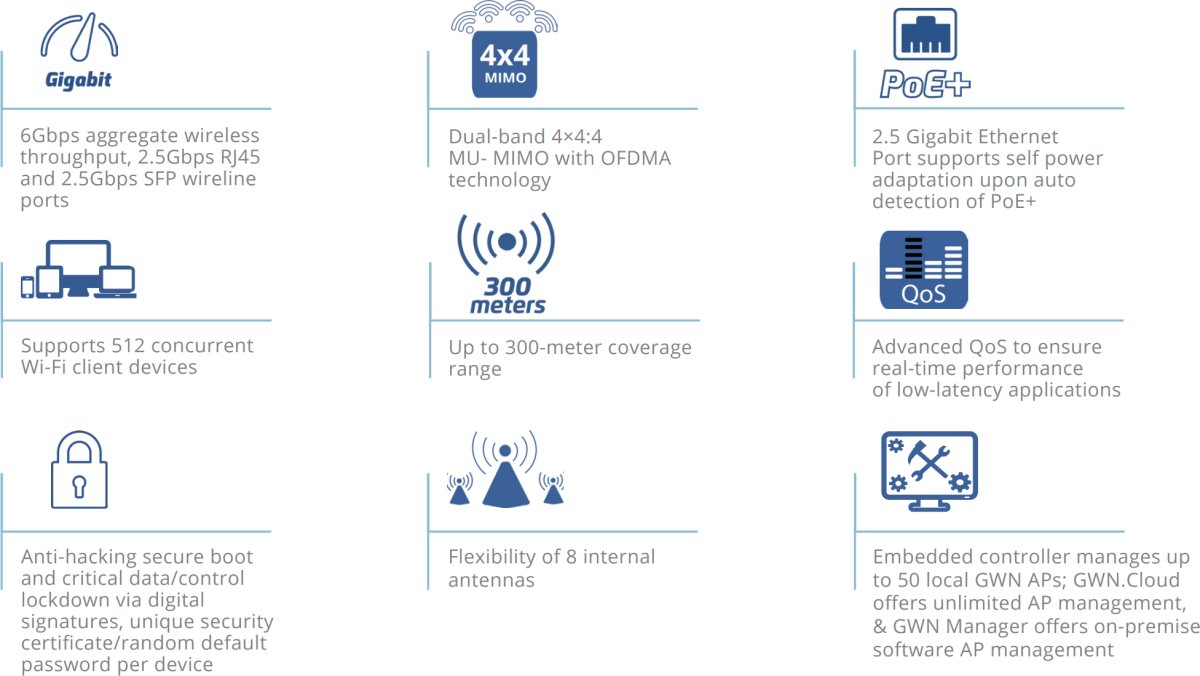

Key features

  • Up to 6 Gbps aggregate wireless throughput, 2.5 Gbps RJ45, and 2.5 Gbps SFP wireline ports
  • Dual-band 4x4:4 MU-MIMO with OFDMA technology
  • Self-power adaptation upon auto-detection of PoE or PoE+
  • Support up to 512 concurrent Wi-Fi client devices
  • Up to 300-meter coverage range
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Flexibility of 8 internal antennas
  • Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

Package contents

  • Device
  • Mounting Kits
  • Quick Installation Guide

Download

https://download.discomp.cz/Grandstream/Datasheets/Datasheet_GWN7664ELR_English.pdf
Download Datasheet
https://download.discomp.cz/Grandstream/User%20Guide/GWN76xx-User_Manual.pdf
Download User Manual
https://download.discomp.cz/Grandstream/User%20Guide/GWN76xx_Standalone_Guide.pdf
Download Standalone Guide

Technical parameters

LAN ports
Power over Ethernet
802.3at
Operating mode
Access Point
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11n, 802.11ac, 802.11b/g, 802.11ax
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
4804
Transmission speed - 2.4GHz [Mb/s]
1148
Tx power 2.4GHz [dBm]
24
Tx power 5GHz [dBm]
23
Security
WPA, WPA2, WPA3
2.4GHz MIMO
4 x 4
5GHz MIMO
4 x 4
Type of antenna
Built-in
Internal antennas
8
Purpose
Outdoor
Antenna gain [dBi]
5,5, 6,5
LAN ports
1
LAN speed
(1) 100/1000/2500Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
SFP cages
1
Optical interfaces
(1) 1G/2.5Gbps
Max. power consumption [W]
24
Buttons
Reset
Operating temperature [°C]
-30 up to 60
Weight [g]
1445
Width [mm]
310
Height [mm]
59
Depth [mm]
260
IPv6 support
Yes
