SG2428LP - Omada 24-port gigabit smart swtitch with 16-port PoE+
Your price incl. VAT (20.0%)
1,561.24 RON
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 04-12-2024
Product description

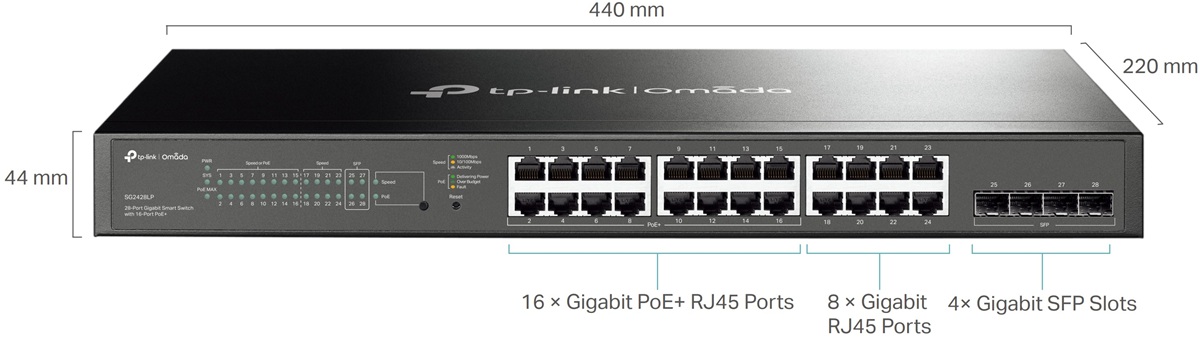

The switch offers 24x GbE RJ-45 ports, of which 16 support PoE+ 802.3af/at with a total power budget of up to 150 W, and 4x GbE SFP slots. Switching capacity reaches up to 56 Gb/s with a forwarding rate of up to 41.66 Mpps. The Storm Control feature protects against overloads from broadcast, multicast, and unknown unicast packets. QoS offers advanced traffic management options for smoother and faster data transmission. An easy-to-use web management interface, together with SNMP, RMON, and Dual Image support, simplifies setup and configuration.
- (16) GbE RJ-45 802.3af/at PoE+ ports
- (8) GbE RJ-45 ports and (4) GbE SFP slots
- Total PoE budget of 150 W, with a maximum PoE output of 30 W per port
- Centralized cloud management via the Omada web platform or mobile app
- Standalone management via web, CLI, SNMP, and RMON
- Static routing helps direct internal traffic for improved efficiency
- VLAN, ACL, QoS, and IGMP snooping
- Fanless design for quiet operation
Package Contents
- Device
- Power cable
- Rack-mount accessories
Download
Technical parameters
LAN ports
Design
Desktop, Rackmount
Switchning capacity [Gbps]
56
MAC address table
8000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
42
Web management
Yes
Management
Telnet, SSH, Mobilní aplikace, Omada controller
Features
VLAN, QoS, DHCP snooping, L2+
Power type
Mains power (230V)
Fans
No
LAN ports
24
LAN speed
(24) 10/100/1000Mbps
PoE type
PoE-Out (only)
SFP cages
4
Optical interfaces
(4) 1000Mbps
PoE-Out standards
802.3af, 802.3at
Redundant power supply
Yes
PoE Out ports
16
PoE budget [W]
150
Max. power consumption [W]
190
Chassis design
Metal
Power via connector/terminal
230V AC
Buttons
Reset
Operating temperature [°C]
0 up to 40
Width [mm]
440
Height [mm]
44
Depth [mm]
220
Default IP address
192.168.0.1
Default login and password
admin / admin
