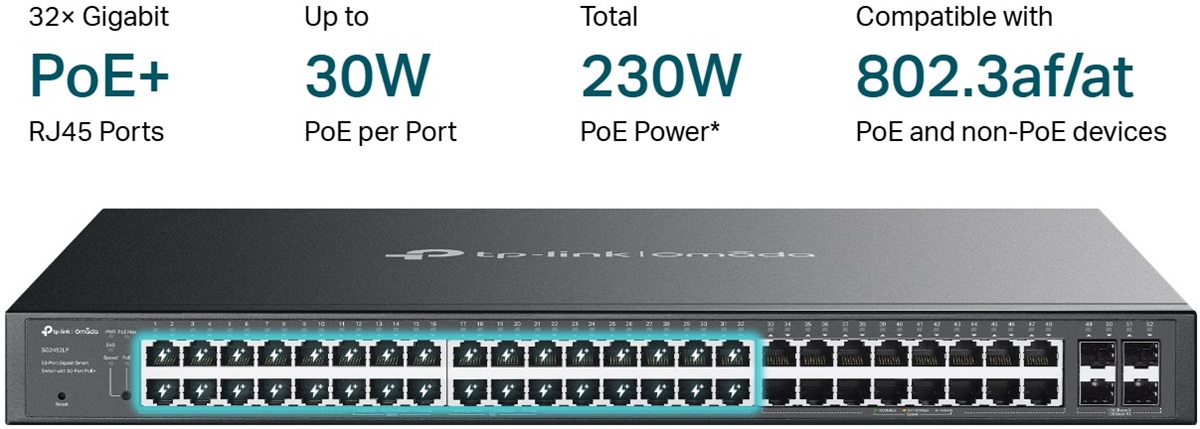

SG2452LP - Omada 52-port gigabit smart switch with 32-port PoE+
Your price incl. VAT (20.0%)
2,918.77 RON
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 04-12-2024
Product description
The switch offers 48x GbE RJ-45 port, of which 32 support PoE+ 802.3af/at with a total power budget of up to 230 W, and 4x GbE SFP slot for uplink. The switching capacity reaches up to 104 Gb/s and the routing speed can go up to 77.37 Mpps. Storm Control protects against overloads caused by broadcast, multicast, and unknown unicast packets. The Quality of Service (QoS) feature provides advanced traffic management options for smoother and faster data transfer. The easily manageable web interface, along with support for SNMP, RMON, and Dual Image, simplifies setup and configuration.
- (32) GbE RJ-45 802.3af/at PoE+
- (16) GbE RJ-45 ports and (4) GbE SFP
- Total PoE budget of 230 W with a maximum PoE output of 30 W per port
- Centralized cloud management via web or Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static routing helps direct internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP snooping
- Fanless design for quiet operation
Package Contents
- Device
- Power adapter
- Rackmount accessories
Download
Technical parameters
LAN ports
Design
Desktop, Rackmount
Switchning capacity [Gbps]
104
MAC address table
16000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
77,4
Web management
Yes
Management
Omada controller, Mobilní aplikace, SSH, Telnet
Features
L2+, VLAN, QoS, DHCP snooping
Power type
Mains power (230V)
Fans
No
LAN ports
48
LAN speed
(48) 10/100/1000Mbps
PoE type
PoE-Out (only)
SFP cages
4
Optical interfaces
(4) 1000Mbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
32
PoE budget [W]
230
Max. power consumption [W]
300
Chassis design
Metal
Power via connector/terminal
230V AC
Buttons
Reset
Operating temperature [°C]
0 up to 40
Width [mm]
440
Height [mm]
44
Depth [mm]
330
Default IP address
192.168.0.1
Default login and password
admin / admin
