Huawei AP761 - WiFi6 outdoor Dual Band AP, BLE, IP68

Product description

Huawei AP761 is an outdoor AP in compliance with the Wi-Fi 6 standard (802.11ax). It stands out with excellent outdoor coverage performance, IP68 waterproof and dustproof design, and strong surge protection capability. The AP provides uplink optical and electrical ports, allowing customers to select different deployment modes and saving customers' investment. These strengths make AP761 ideal for high-density scenarios such as stadiums, squares, pedestrian streets, and amusement parks.

• The AP761 has built-in directional antennas and works simultaneously on the 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands.
• 1 x GE electrical port + 1 x SFP optical port
• 6 kA surge protection for Ethernet ports, IP68 waterproof and dustproof level, and extended operating temperature range of –40°C to +65°C, meeting industrial-grade requirements
• Bluetooth serial interface-based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
• Working modes: Fit, Fat, and cloud management
• The Leader AP function - serves as local controller for other APs in the same network
• Max. number of users 1024, recommended 120

Package contents

• Device

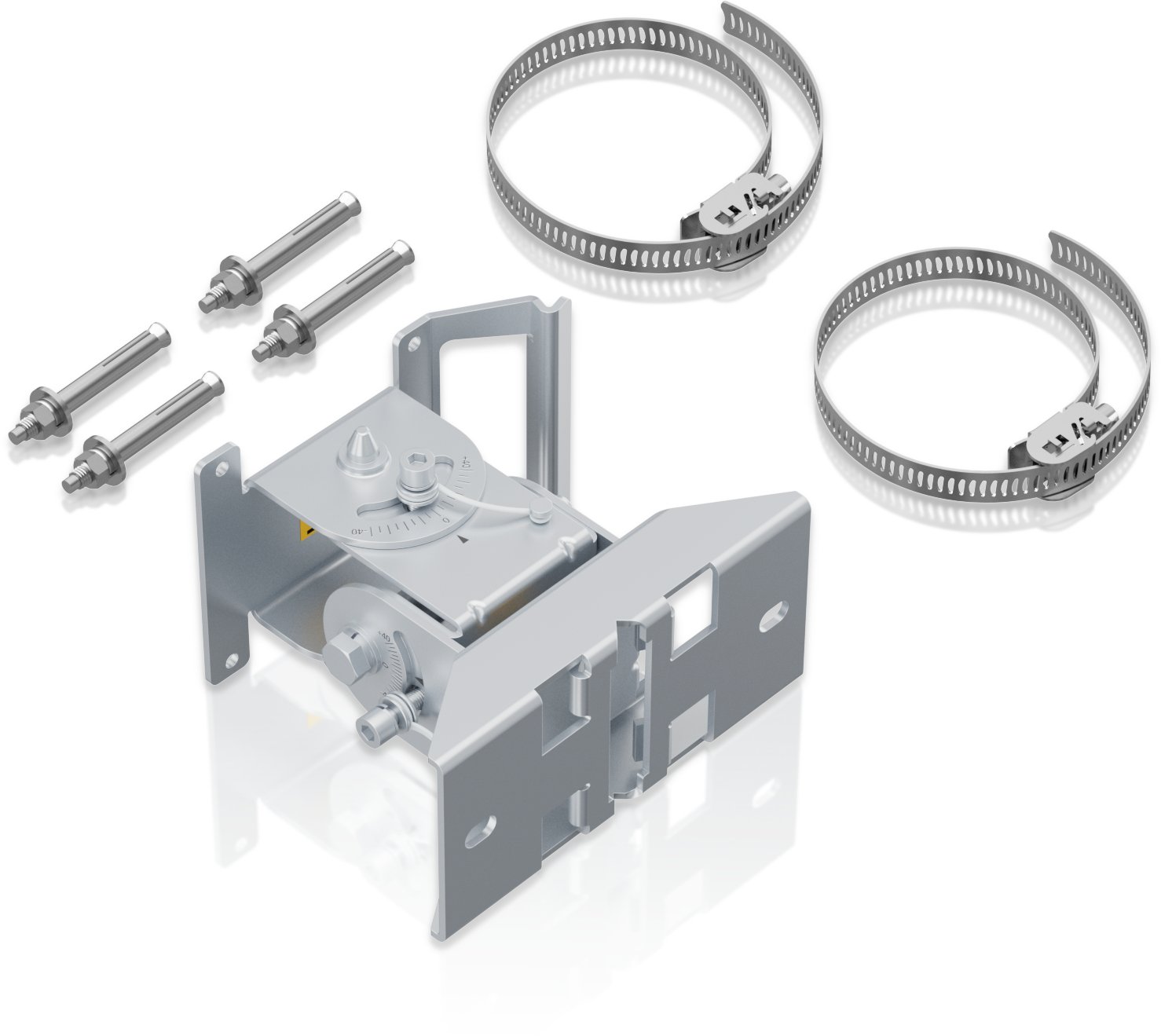

• Mounting kit

Download

https://download.discomp.cz/Huawei/Datasheets/AP761.pdf

Datasheet
