TP-Link EAP211-Bridge KIT Outdoor Bridge / Access Point

TP-Link EAP211-Bridge KIT Outdoor Bridge / Access Point
Your price incl. VAT (20.0%)
773.22 RON
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 16-09-2026
TP-Link
Manufacturer
Product number
EAP211-Bridge KIT
Product Code
RL027.057
Warranty
60 months

Product description

With the TP-Link EAP211-Bridge KIT, you can easily create a transparent wireless link over distances of up to 1 km. Thanks to the 802.11ac standard, it achieves a link speed of up to 867 Mbps in the 5 GHz band. It also supports technologies such as Mesh, MU-MIMO, and Beamforming. For maximum efficiency, the units support automatic pairing and integration with the Omada SDN platform for remote and centralized management.

Each unit features (3) 10/100/1000 Mbps Ethernet ports, a reset button, and a grounding connector. LEDs on the device indicate its status, Ethernet connection, and signal strength. The first of the three Ethernet ports supports both 24V passive PoE and 802.3af active PoE. Another power option is the 12V DC connector. The units can be mounted on a pole using the included plastic cable ties.

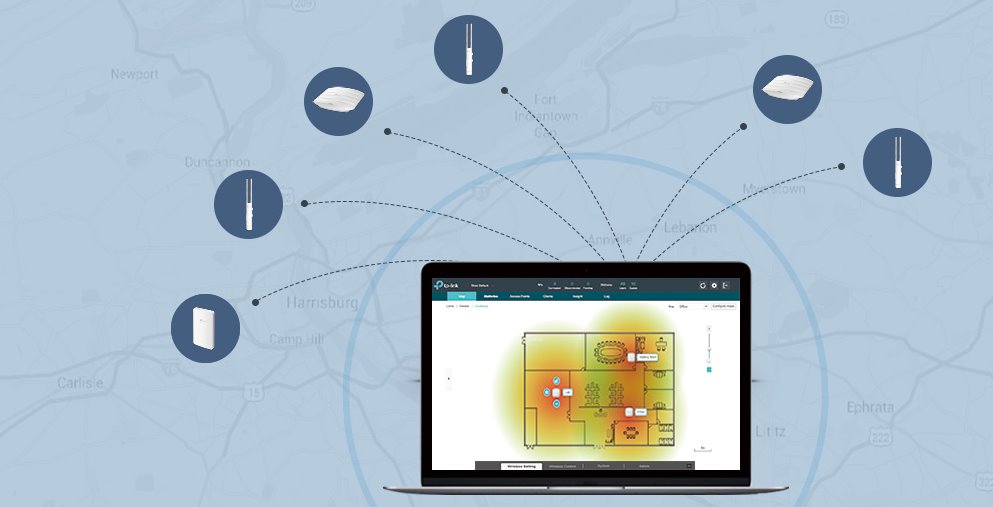

Efficient centralized network management

With the Omada controller software, small and medium-sized businesses can manage hundreds of indoor and outdoor access points from a single location. This makes network management efficient and intuitive.

EAP211-Bridge KIT

Package contents

  • (2) Devices
  • (2) 24V PoE power adapters
  • (2) Power cables
  • (4) Cable ties
  • (4) Screws and wall plugs

Download

https://download.discomp.cz/TP-LINK/Datasheets/EAP211-Bridge KIT.pdf
Download Datasheet
https://download.discomp.cz/TP-LINK/Userguides/Bridge AP User Guide_REV1.0.0.pdf
Download User Guide

Technical parameters

LAN ports
Power over Ethernet
24V DC, 802.3af
Sensitivity [dBm]
-94
Operating mode
Access Point, Bridge
Wireless frequency
5 GHz
WiFi standards
802.11n, 802.11a, 802.11ac
Transmission speed - 5GHz [Mb/s]
866
Tx power 5GHz [dBm]
30
5GHz MIMO
2 x 2
Elevation beam width (-6dB) [°]
30
Azimuth beam width (-6dB) [°]
60
Type of antenna
Built-in
Internal antennas
2
Purpose
Outdoor
Antenna gain [dBi]
10
LAN speed
(3) 10/100/1000Mbps
LAN ports 1G
3
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
11,5
Power via connector/terminal
12V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 70
Weight [g]
280
Depth [mm]
79
Width [mm]
60
Height [mm]
224
Default IP address
Dynamic from DHCP
Default login and password
admin / admin
