TP-Link VIGI NVR1004H-4P - NVR, 4 channels, 4x PoE

Product description

Recording device from the TP-Link brand for recording and powering up to 4 IP cameras. It can record camera recordings in a maximum resolution up to 8 MP. The device can be connected to the network with one 10/100 Mbps LAN port and another 4x 10/100 Mbps LANs have 802.3af/at PoE support with total PoE budget 53W. The connectors include 2 USB ports for connecting a keyboard and mouse, audio input/output, 4K HDMI and a VGA connector. The maximum consumption of the recorder itself without HDD and connected cameras is 4.25 W.

Key Features

• 4 channels with 8MP resolution
• 1× Sata (up to 10 TB)
• 5× 10/100Mbps LAN - 4× PoE (802.3af/at), PoE budget 53W
• 2x USB 2.0
• 1x 4K HDMI (3840 × 2160px) + 1x VGA
• Codec support: H.265+/H.265/ H.264+/H.264
• Wide camera support thanks to Onvif compatibility

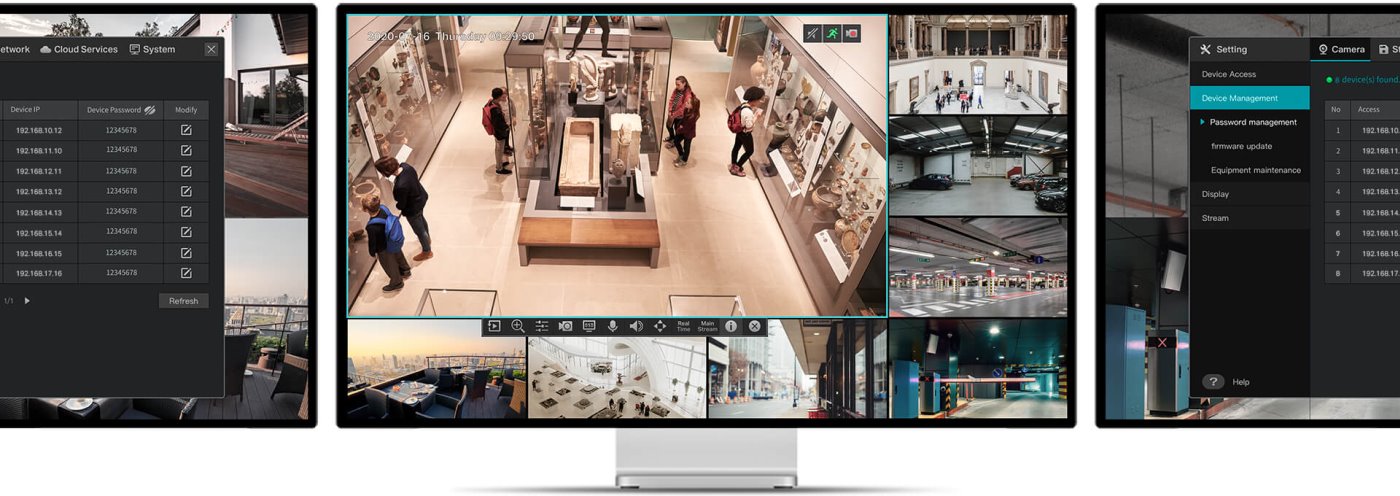

• Remote management and monitoring thanks to the VIGI application for iOS and Android
• Two-way audio - With voice intercom support, have a two-way conversation and monitor your image from anywhere.

Package contents

• Device
• Power adapter 53.5 V/1.31 A
• Mouse
• Screws for fixing the HDD

Download

https://download.discomp.cz/tp-link/datasheets/NVR1004H-4P.pdf

Datasheet
