Ubiquiti USW-Enterprise-8-PoE - UniFi Switch Enterprise 8 PoE

Ubiquiti USW-Enterprise-8-PoE - UniFi Switch Enterprise 8 PoE
Your price incl. VAT (20.0%)
2,475.55 RON
✅ In Stock 50+ Бр.
Delivery Planned Delivery Date by Courier to you 10-07-2024
Ubiquiti Networks
Manufacturer
Product number
USW-Enterprise-8-PoE
Product Code
RL019.722
Warranty
24 months

Product description

UniFi Switch Enterprise 8 PoE is a reliable manageable 2.5-Gigabit L3 Switch with a switching capacity of 80 Gbps, (8) 2.5-Gigabit LAN ports and two SFP+ (10 Gbps) slots. All Ethernet ports support 802.3af/at PoE-Out with an output power of 30 W/port and a total PoE budget of 120 W. In addition to the standard equipment, the switch also has a 1.3" touch screen for providing information about the system, temperature, port statistics, PoE power supply and much more. The switch can be powered via standard 230 V and maximum power consumption is 150W.

Key Features

  • (8) 100M/1G/2.5G ports - 802.3af/at PoE+ support (30W/port)
  • (2) 1/10G SFP+ ports
  • 120W Total PoE capacity
  • 1.3" touch display
  • Desktop or wallmount mounting
  • Supported in UniFi Controller from version 6.3.51

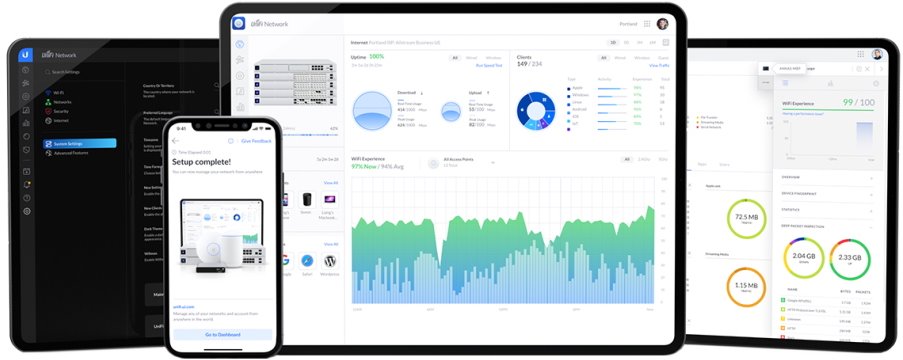

Management via UniFi Controller

USW-Enterprise-8-PoE does not have web management but is managed centrally by UniFi Controller with support for the UniFi mobile application and offers an extensive set of advanced switching protocols and L2 functions, including operating mode (switching, mirroring or aggregation) per port. UniFi Network Controller and mobile applications allow administrators to configure and monitor virtually all graphical user interface functions from anywhere.

USW-Enterprise-8-PoE

Package Contents

  • Device
  • Power cord
  • Wallmount kit

Download

https://download.discomp.cz/ubiquiti/datasheets/usw-enterprise-8-poe_ds.pdf
Download Datasheet

Technical parameters

LAN ports
Design
Desktop
Switchning capacity [Gbps]
80
MAC address table
16000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
59,5
Management
UniFi Network
Features
VLAN, DHCP snooping
Power type
Mains power (230V)
Fans
Without fan
LAN ports
8
LAN speed
(8) 100/1000/2500 Mbps
Max. LAN ports speed
2.5G
PoE type
PoE-Out (only)
SFP cages
2 (1G/10G support)
SFP+ cages
2 (1G/10G support)
Optical interfaces
(2) 1G/10Gbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
8
PoE budget [W]
120
Max. power consumption [W]
150
Chassis design
Plastic
Power via connector/terminal
230V AC
Buttons
Reset
Operating temperature [°C]
-5 up to 45
Width [mm]
248
Height [mm]
44
Depth [mm]
200
Default IP address
192.168.1.20, Dynamic from DHCP
Default login and password
ubnt / ubnt
Other features
Touchscreen
