Ubiquiti USW-Enterprise-24-PoE - UniFi Switch Enterprise 24 PoE
Planned Delivery Date by Courier to you 20-11-2024
Product description
UniFi Switch Enterprise 24 PoE is a reliable manageable 2.5-Gigabit L3 Switch with a switching capacity of 124 Gbps, (12) 2.5-Gigabit LAN ports, additional (12) Gigabit LAN ports, and two SFP+ (10 Gbps) slots. All Ethernet ports support 802.3af/at PoE-Out with an output power of 30 W/port and a total PoE budget of 400 W. In addition to the standard equipment, the switch also has a 1.3" touch screen for providing information about the system, temperature, port statistics, PoE power supply and much more. The switch can be powered via standard 230 V but also via UniFi SmartPower RPS, which rather backs up power in the event of an internal power failure.
Key Features
- (12) 100M/1G/2.5G ports - 802.3af/at PoE+ support (30W/port)
- (12) 10/100M/1G ports - 802.3af/at PoE+ support (30W/port)
- (2) 1/10G SFP+ ports
- 400W Total PoE capacity
- 1.3" touch display
- Backup power via SmartPower RPS connector
- Supported in UniFi Controller from version 5.14.12

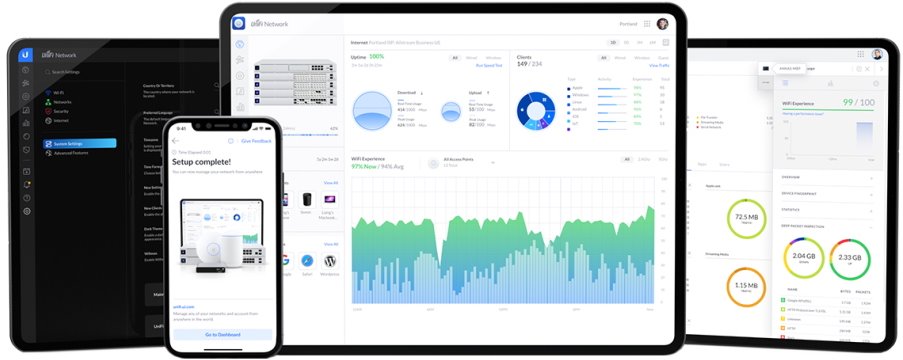

Management via UniFi Controller
USW-Enterprise-24-PoE does not have web management but is managed centrally by UniFi Controller with support for the UniFi mobile application and offers an extensive set of advanced switching protocols and L2 functions, including operating mode (switching, mirroring or aggregation) per port. UniFi Network Controller and mobile applications allow administrators to configure and monitor virtually all graphical user interface functions from anywhere.

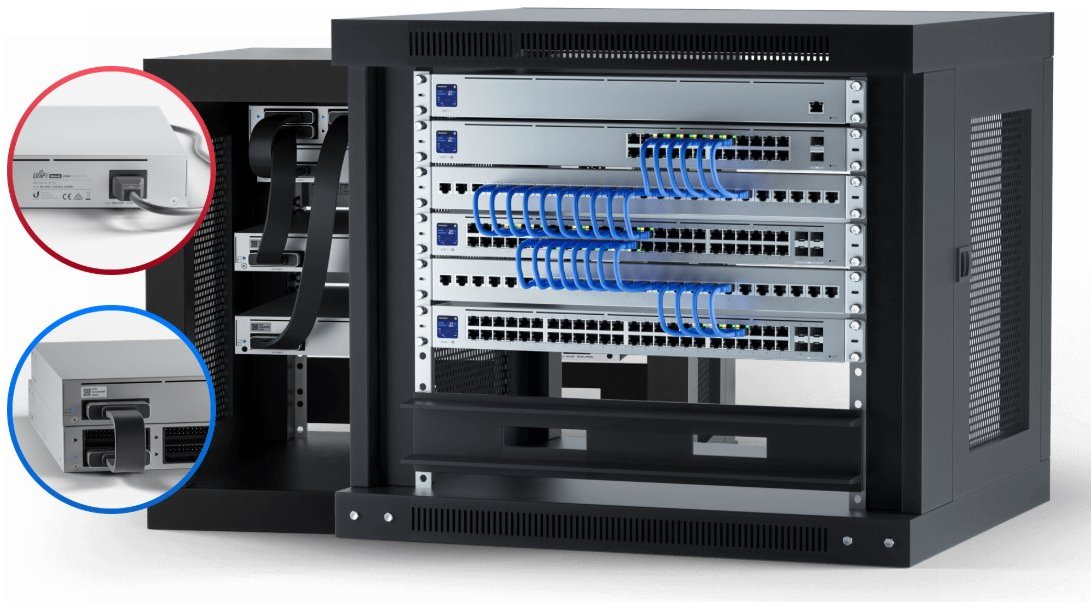

Redundant power
This generation of switches supports redundant power supply via a special connector to the UniFi SmartPower unit in the event of a failure of the primary power supply at the switch.
Package Contents
- Device
- Power cord
- 19" rack mounts
